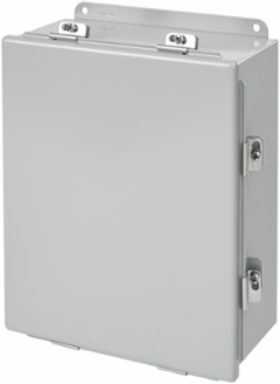

nVent Hoffman A1614CHNF Continuous Hinge Junction Box, 16x14x6 Inch, Gray Mild Steel, NEMA 12
- MPN: A1614CHNF
- UPC: 783510557607
- PPN: HOF-A1614CHNF
- UNSPSC: 39121303
CAD
$467.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Type 4 Junction Boxes with easy access are ideal for housing and protecting electrical connections. This Continuous Hinge Enclosure with Clamps Type 4, A1614CHNF item measures 16x14x6 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Stainless steel screw-down clamps on three sides of door
- Continuous hinge
- Stainless steel hinge pin
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
- Bonding provision on door
- External wall-mounting brackets for easy installation
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 356
- Protection Rating
- NEMA Type 12
- Color Code
- ANSI 61
- Mounting (G x H)
- 425 x 305
- IP Rating
- IP66
- Weight
- 20.3
- Size
- 16.00x14.00x6.00 in
Height (H)406
Depth (D)152
FinishPowder Coated
Thickness (T)1.9
Overall Dimensions (L x W)445 x 379
NEMA Rating12 Indoor, dust-resistant
MaterialSteel
ColorGray
