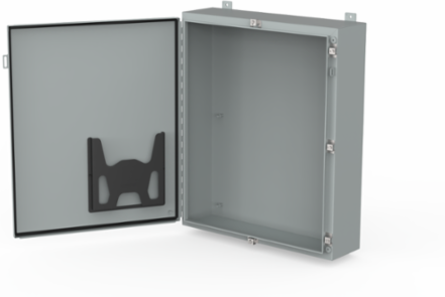

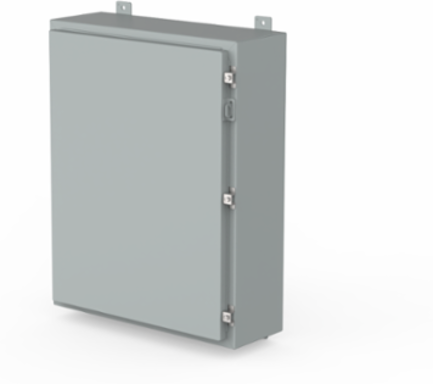

nVent Hoffman A303012LP Continuous Hinge Enclosure 30x30x12 Inch Gray Mild Steel, NEMA 12
- MPN: A303012LP
- UPC: 783510279301
- PPN: HOF-A303012LP
- UNSPSC: 39121324
CAD
$1323.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Single-door enclosure with universal rating up to Type-4; suitable for indoor and outdoor. All hardware is SS, the screw-down door clamps and heavy-gauge hinge pin. A303012LP measures 30x30x12 in from steel and painted ANSI 61 gray.
Features
- Seams continuously welded and ground smooth
- External, welded-on mounting brackets for wall-mounting
- Formed external return flanges around all sides of enclosure opening
- Stainless steel screw-down door clamps
- Removable door with continuous hinge featuring heavy-gauge stainless steel hinge pin
- Hasp and staple for padlocking
- High-impact thermoplastic data pocket
- Collar studs for mounting optional panels (sold separately)
- Bonding provision on door
- Seamless foam-in-place gasket
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 762 |
| Color | Gray |
| Protection Rating | NEMA Type 12 |
| Thickness (T) | 1.9 |
| Data Pocket | Large |
| Weight | 81 |
| Size | 30.00x30.00x12.00 in |
| Height (H) | 762 |
|---|---|
| Depth (D) | 305 |
| Color Code | ANSI 61 |
| Finish | Powder Coated |
| Clamp Quantity | 5 |
| IP Rating | IP66 |
| Material | Steel |
| NEMA Rating | 12 Indoor, dust-resistant |
