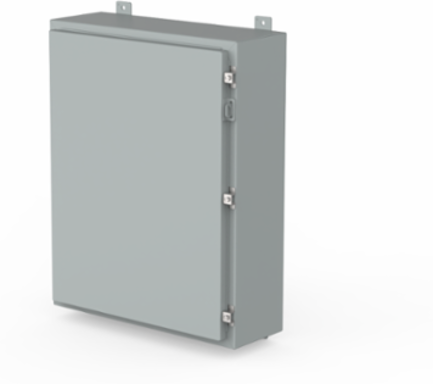

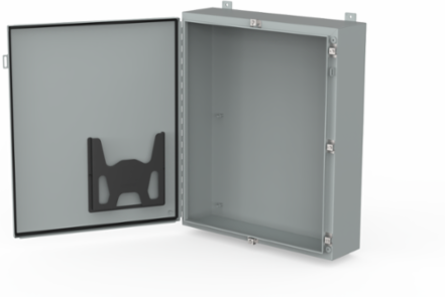

nVent Hoffman A363010LP Continuous Hinge Enclosure Type 12, 36 x 30 x 10 Inch, Gray Mild Steel
- MPN: A363010LP
- UPC: 783510284404
- PPN: HOF-A363010LP
- UNSPSC: 39121324
CAD
$1388.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Single-door enclosure with universal rating up to Type-4; suitable for indoor and outdoor. All hardware is SS, the screw-down door clamps and heavy-gauge hinge pin. A363010LP measures 36x30x10 in from steel and painted ANSI 61 gray.
Features
- Seams continuously welded and ground smooth
- External, welded-on mounting brackets for wall-mounting
- Formed external return flanges around all sides of enclosure opening
- Stainless steel screw-down door clamps
- Removable door with continuous hinge featuring heavy-gauge stainless steel hinge pin
- Hasp and staple for padlocking
- High-impact thermoplastic data pocket
- Collar studs for mounting optional panels (sold separately)
- Bonding provision on door
- Seamless foam-in-place gasket
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 762
- Color
- Gray
- Protection Rating
- NEMA Type 12
- Thickness (T)
- 1.9
- Data Pocket
- Large
- Weight
- 87
- Size
- 36.00x30.00x10.00 in
Height (H)914
Depth (D)254
Color CodeANSI 61
FinishPowder Coated
Clamp Quantity5
IP RatingIP66
MaterialSteel
NEMA Rating12 Indoor, dust-resistant
