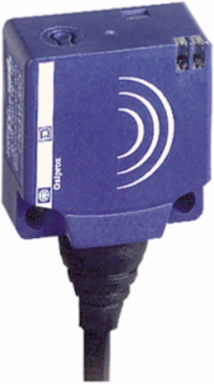

Telemecanique Sensors XS8E1A1MAL2 Inductive proximity sensors XS, inductive sensor XS8 26x26x13, PBT, Sn15mm, 24...240VAC/DC, cable 2 m
- MPN: XS8E1A1MAL2
- PPN: TES-XS8E1A1MAL2
CAD
$418.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This XS flat (26 x 26 x 13 mm) inductive proximity sensor has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This general purpose flat inductive proximity sensor has an increased range. It is mountable directly on a surface, thanks to 2 screws fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. IP68 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It features double insulation for better people and system protection from electrical shocks. Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. It is CCC, ECOLAB, CSA, UL certified.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- cable
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Sensor Name
- XS8
- Size
- 13 mm
- Ip Degree Of Protection
- IP68 double insulation IEC 60529
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Switching Capacity In Ma
- 5...200 mA AC/DC
- Enclosure Material
- PBT
[Us] Rated Supply Voltage24...240 V AC/DC 50/60 Hz
Type Of Output Signaldiscrete
Cable Length2 m
Materialplastic
Wiring Technique2-wire
Series Namegeneral purpose
[Sn] Nominal Sensing Distance10 mm flush mountable || 15 mm non flush mountable
Detector Flush Mounting Acceptancenon flush mountable
Sensor Designflat form 26 x 26 x 13
Output Circuit TypeAC/DC
Complementary
- Current Consumption
- <= 10 mA no-load
- Maximum Delay Response
- 0.3 ms
- Marking
- CE
- Maximum Residual Current
- 1.5 mA open state
- Differential Travel
- 1...15% of Sr
- Maximum Delay First Up
- 10 ms
- Supply Voltage Limits
- 20-264 V AC/DC
- Detection Face
- frontal
- Width
- 26 mm
- Depth
- 13 mm
Height26 mm
Maximum Voltage Drop<5.5 V closed)
Net Weight0.07 kg
Switching Frequency<= 2000 Hz
Maximum Delay Recovery0.8 ms
Fine Adjustment Zone5-10 mm flush mountable || 5-15 mm non flush mountable
Wire Insulation MaterialPVC
Cable Composition2 x 0.34 mm²
Front MaterialPBT
Environment
- Product Certifications
- CCC || Ecolab || CSA || UL
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP071001EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
