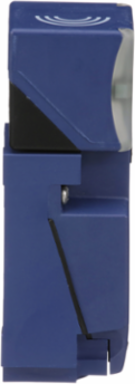

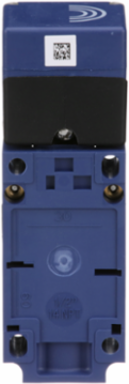

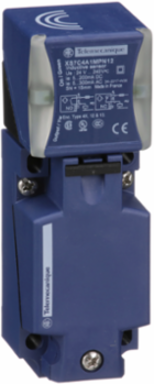

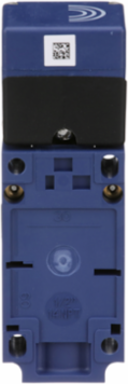

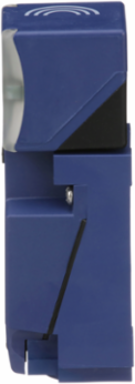

Telemecanique Sensors XS7C4A1MPN12 inductive sensor, XS7, 40x40x117, PBT, sensing 15 mm, 24 to 240 VAC/DC, terminals
Telemecanique Sensors XS7C4A1MPN12 inductive sensor, XS7, 40x40x117, PBT, sensing 15 mm, 24 to 240 VAC/DC, terminals
- MPN: XS7C4A1MPN12
- PPN: TES-XS7C4A1MPN12
- UNSPSC: 41111926
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$356.20/ EA
Description
XS inductive proximity sensors are for noncontact sensing of metal objects up to 60 mm. These inductive proximity sensors are available in standard M8, M12, M18, M30 cylindrical housings with either short or long bodies. Standard cubic, rectangular and flat forms are also available. XS inductive proximity sensors are available in a wide variety of VAC and VDC power supply voltages. Proximity sensors can be used in the assembly machines, robotics, machine tools, machining, packaging, materials handling, conveying, and food and beverage industries. These proximity sensors comply with international standards including CE, UL, CSA, CCC, CTick, and TÛV. They also meet the top international quality IP69K requirements. It features a plastic case with a plug-in 5 position turret head and a 1/2 NPT cable entry. It has a sensing distance of 15mm. Two-wire, AC or DC supply, unprotected, 24V to 240V, NO or NC function programmable. This sensor must be protected by a 0.4A quick-blow fuse, reference XUZE04, connected in series with the load.
Specifications
Environment
- Product Certifications
- CSA || CCC || UL
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 msEN 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121217EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 40 mm
- Status Led
- supply on 1 LED green) || output state 1 LED yellow)
- Operating Zone
- 0-12 mm
- Marking
- CE
- Net Weight
- 0.244 kg
- Switching Frequency
- <= 25 Hz AC || <= 50 Hz DC
- Maximum Delay Recovery
- 1.8 ms
- Supply Voltage Limits
- 20-264 V AC/DC
- Detection Face
- 5 positions turret head
- Front Material
- PBT
Maximum Delay Response1.2 ms
Repeat Accuracy<= 3% of Sr
Maximum Voltage Drop<5.5 V closed)
Length40 mm
Maximum Residual Current1.5 mA open state 120 V || 0.6 mA open state 24 V
Differential Travel3...15% of Sr
Maximum Delay First Up7.5 ms
Cable Entry Number1 tapped entry 1/2" NPT cable gland
Width117 mm
Specifications
- Electrical Connection
- screw-clamp terminals, 4 x 1.5 mm²
- Discrete Output Function
- 1 NO or 1 NC programmable
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Material
- plastic
- Wiring Technique
- 2-wire
- Series Name
- general purpose
- [Sn] Nominal Sensing Distance
- 15 mm
- Detector Flush Mounting Acceptance
- flush mountable
- Sensor Design
- form 40 x 40 x 117
- Output Circuit Type
- AC/DC
[Us] Rated Supply Voltage24...240 V AC 50/60 Hz || 24...240 V DC
Type Of Output Signaldiscrete
Sensor NameXS7
Size117 mm
Ip Degree Of ProtectionIP67 IEC 60529 || IP65 IEC 60529 || IP69K DIN 40050
Body Typefixed
Sensor Typeinductive proximity sensor
Switching Capacity In Ma5...200 mA DC || 5...300 mA AC
Enclosure MaterialPBT
