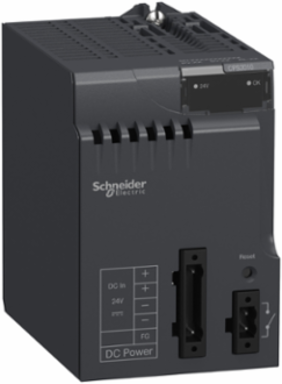

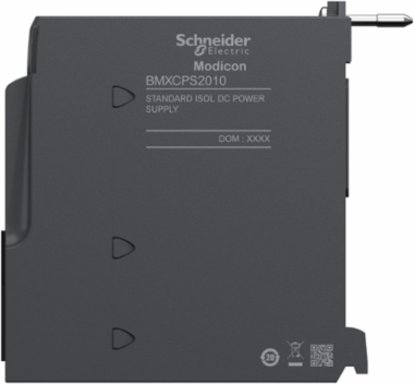

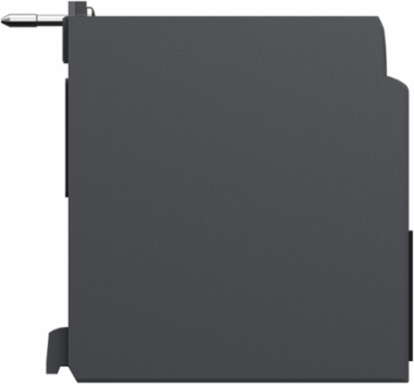

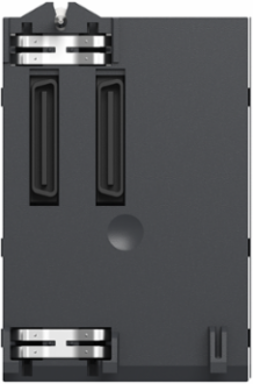

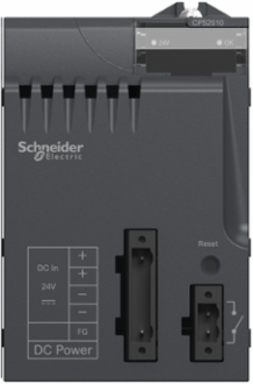

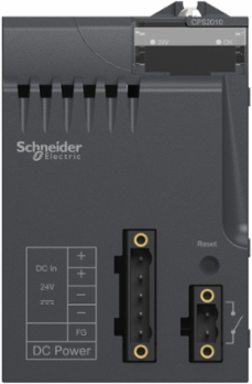

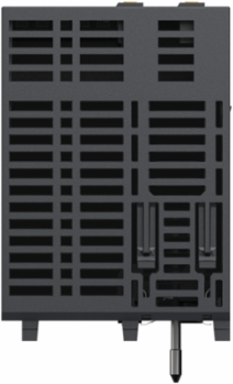

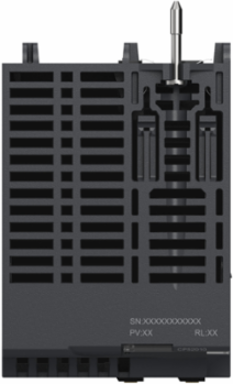

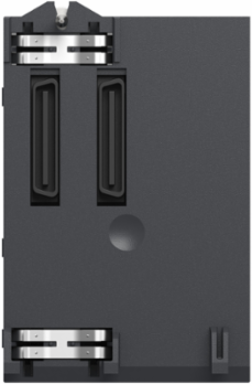

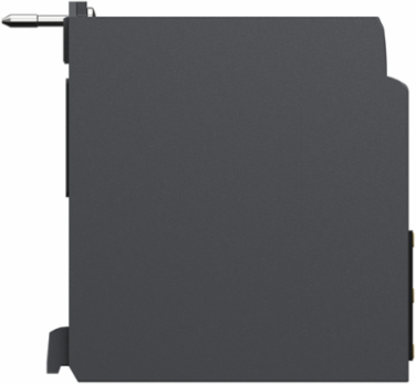

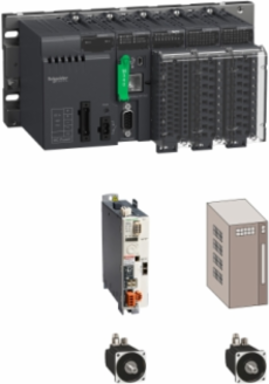

Schneider Electric BMXCPS2010 Modicon X80 Power Supply Module, 24V DC, 16.8W, IP20, 0.29kg

  • MPN: BMXCPS2010
  • PPN: SCH-BMXCPS2010
  • UNSPSC: 32151706

CAD

$662.14

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

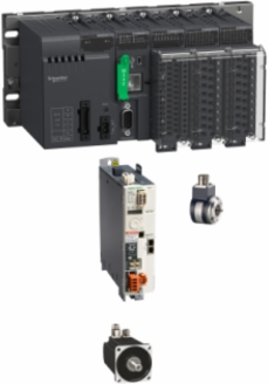

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has an isolated voltage of 24V DC. It is a power supply module with a secondary power of 16.8W at 24V DC, a current at secondary voltage of 2.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.29kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Features

  • Internal fuse not accessible for primary circuit
  • Overload and overvoltage protection for secondary circuit
  • Short circuit protection for secondary circuit
  • Modularity and scalability
  • Robustness and reliability
  • IP20 protection for harshest environments
  • Wide range of operating temperature from 0°C to 60°C

Documentation & Downloads

Specifications

Key Specifications

Country of OriginIndonesia, United States
Weight420 g

Complementary Attributes

Maximum Cable Distance Between Devices20 m power supply cable copper 1.5 mm²30 m power supply cable copper 2.5 mm²
Maximum Power Dissipation In W8.5 W

Important Information Attributes

Persona Type IdsEU, OM8, SI
Current At Secondary Voltage0.7 A 24 V DC I/O module power supply and processor, 2.5 A 3.3 V DC I/O module logic power supply
Insulation Resistance>= 10 MOhm primary/ground, >= 10 MOhm primary/ground, >= 10 MOhm primary/secondary, >= 10 MOhm primary/secondary>= 10 MOhm primary/ground, >= 10 MOhm primary/ground, >= 10 MOhm primary/secondary
Secondary Power16.8 W 24 V DC I/O module power supply and processor, 8.3 W 3.3 V DC I/O module logic power supply
Carbon Footprint Of The End Of Life Phase C1 To C40.6 kg CO2 eq., 0.5817171428571428
Carbon Footprint Of The Manufacturing Phase A1 To A35 kg CO2 eq., 4.873457142857142
Local Data StatusPublishable
Return IndicatorY
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2402022EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1940
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Control TypeRESET push-button cold restart
Immunity To Microbreaks1 ms
It On Activation0.15 A.s 24 V
Primary Voltage24 V isolated
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityYes
Software Versionv5.9.4
Supply Circuit TypeDC
Total Lifecycle Carbon Footprint456 kg CO2 eq.
Database Version2022-01
I²T On Activation0.6 A².s 24 V
Customs Code8504409510
Packaging Weight In G131
Functional Unit Quantity1
Reference Lifetime In Y10
Recyclability Potential In %1
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Dielectric Strength1500 V primary/ground, 1500 V primary/secondary
Protection Typeinternal fuse not accessible primary circuitoverload protection secondary circuit, 24 V sensor power supply, overvoltage protection secondary circuit, 24 V sensor power supply, short-circuit protection secondary circuit, 24 V sensor power supply
Carbon Footprint Of The Distribution Phase A40.0549214285714285, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.2043342857142857, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6451 kg CO2 eq., 450.6399999999999
Local Publishable Date2026-06-09
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Electrical Connection1 connector 2 alarm relay1 connector 5 line supply, protective earth, 24 V DC input sensor
Inrush Current30 A 24 V
Mtbf Reliability4886000 H
Primary Voltage Limit18...31.2 V
Product Or Component Typepower supply module
Range Of ProductModicon X80
Shock Resistance30 gn
Status Led1 LED (Green) rack voltage OK
Sustainable PackagingYes
Vibration Resistance3 gn
Data Sourceextrapolated product
Nbr. Of Units In Pkg.1
Warranty In Months18
Functional Unit DescriptionThe power supply provides power to the modules on a M340 or M580 rack (main or drop) with a primary voltage of 100V to 240V AC , a secondary power of 31.2W at 24V DC and a maximum power dissipation of 8.5W.
Functional Unit UnitUnit
Energy Consumption On Product Lifetime In Kwh670.14

Environment Attributes Main

Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint456.3544299999999
Circularity ProfileENVEOLI2402022EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...6561.68 ft (0...2000 m)2000...5000 m with derating factor
Packaging Without Single Use PlasticYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2402022EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-60 °C
Environmental DisclosureENVPEP2402022EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Product Compatibilitynot compatible with BMEXBP..02
Relative Humidity5-95 % 55-55 °C without condensation
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Typepower supply module
Range Of ProductModicon X80

ETIM

ETIM 8EC000599
ETIM 10EC000599
ETIM 9EC000599

Contractual Warranty Attributes

Warranty Period18 months
Warranty18 months

Input Attributes

Input Current1 A 24 V
