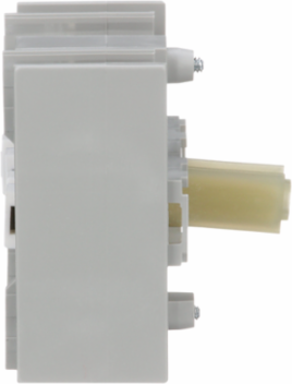

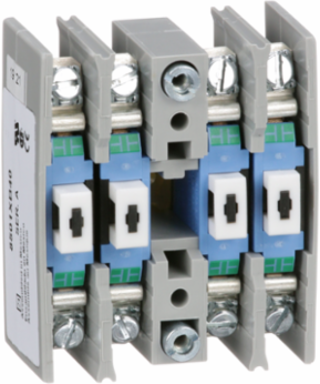

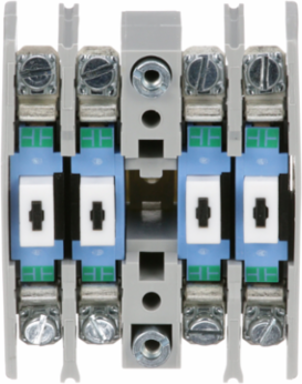

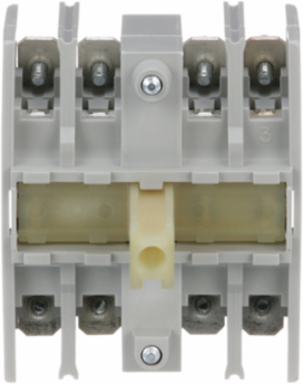

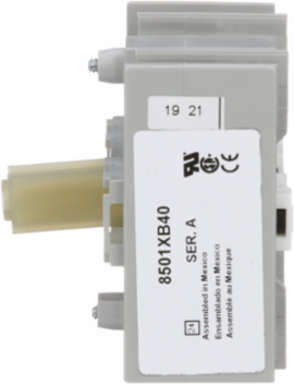

Square D 8501XB40 Harmony 8501X Adder Deck, 4 NO Contact Cartridges, 10A at 600V AC
- MPN: 8501XB40
- UPC: 785901537328
- PPN: SCH-8501XB40
CAD
$123.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. This adder deck allows an addition four contacts to be added to a standard relay. The adder deck has the same straight through wiring as the basic relay. This makes wiring easier. The four plug in contact cartridges in this adder deck make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. This adder deck for an 8501X NEMA machine tool relay is UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Relay Type
- control relay
- Product Or Component Type
- adder deck
Range Of Product8501X
Complementary
- [Icm] Rated Short-Circuit Making Capacity
- 60 A 120 V AC inductive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508
- Contacts Type And Composition
- 4 NO 4 standard contact cartridges
- Awg Gauge
- AWG 18...AWG 12 copper
Electrical Connectionscrew clamp terminals
Rated Breaking Capacity6 A 120 V AC inductive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508
Tightening Torquecontrol circuit 1.02-1.36 N.m screw terminals
Environment
- Product Certifications
- CE || CSA LR60905 class 3211 02 || UL recognized E78403 CCN NKCR2
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1310013EN
Circularity ProfileENVEOLI1310013
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
