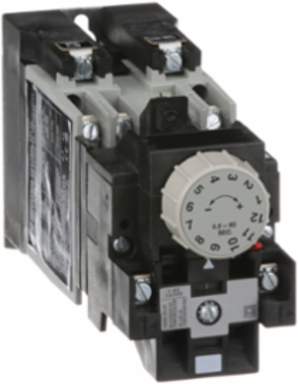

Square D 8501XO20XTE1V02 NEMA Control Relay, 10A at 600VAC, On-Delay Timing, 3.5 Inch H
- MPN: 8501XO20XTE1V02
- UPC: 785901537410
- PPN: SCH-8501XO20XTE1V02
CAD
$616.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
NEMA Control Relay, 10A at 600VAC, On-Delay Timing, 3.5 Inch H
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States, ZZ
Depth6.55 in
Complementary Attributes
- Line Rated Current
- 10 A AC, 5 A DC
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc AC 50/60 Hz
Rated Breaking Capacity6 A 120 V AC inductive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 3 A 240 V AC inductive control circuit UL 508, 1.5 A 480 V AC inductive control circuit UL 508, 1.2 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508
Maximum Switching Voltage600 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Inrush Power In Va
- 148-148 VA 60 Hz, 143-143 VA 50 Hz
- Certificate Agency
- CSA LR60905 class 3211 03, UL listed file E78403 CCN NKCR
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz, 120 V AC 60 Hz
- Carbon Footprint Of The Distribution Phase [A4]
- 0.15482648757555406, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.3021784284754869, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 175 kg CO2 eq., 175.3011764705882
- Local Publishable Date
- 2026-01-12
- Future Imap
- 476.84
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI1409020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- AWG 18...AWG 12 copper
- Electrical Connection
- screw clamp terminals
- Number Of Poles
- 2P
- Product Or Component Type
- relay
- Relay Type
- timing
- Software Version
- v5.9.4
- Tightening Torque
- control circuit 1.02-1.36 N.m screw terminal
- Time Delay Type
- on-delay
- Pep Code
- ENVPEP1310013EN
- Pep Verification Date
- 2024-06-02
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Width Nominal
- 2.23 in
- Package Weight(Lbs)
- 1.184 kg
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Time15 ms - pick-up, 16 ms - drop-out
[Icm] Rated Short-circuit Making Capacity60 A 120 V AC inductive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508
Hold-in Power Consumption In Va23-23 VA 60 Hz, 25-25 VA 50 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 2.078878173270651
Carbon Footprint Of The Manufacturing Phase [A1 To A3]7 kg CO2 eq., 7.281003626595029
Local Data StatusPublishable
Return IndicatorY
Future Msrp532.19
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Composition2 NO 2 standard contact cartridges
Mounting Supportpanel
Product AvailabilityStock - Normally stocked in distribution facility
Range Of Product8501X
ReturnabilityYes
Sustainable PackagingYes
Time Delay Range0.2...60 s
Total Lifecycle Carbon Footprint185 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe product is an electrically operated switch which enables current to flow through it on one circuit and can switch a current on and off on a second circuit.This relay has contacts with a 10 ampere resistive current rating at 600 VAC and it has life span of 10 years with power consumption of 18.36W with 20% use rate and adhering to international standards UL & CSA.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; MX
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Height Nominal3.5 in
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-160 °F, -40-160 °F
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1409020EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1310013EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint185.1180631865049
Environmental DisclosureENVPEP1310013EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-06-02
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- relay
Range Of Product8501X
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
