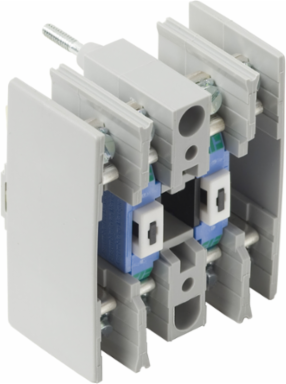

Square D 8501XB20 NEMA Control Relay, Type X, adder deck, 10A resistive at 600 VAC, 2 normally open contacts

MPN: 8501XB20
UPC: 785901537335
PPN: SCH-8501XB20

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$61.69/ EA

Qty:

Loading add to cart quantity...

Description

NEMA Control Relay, Type X, adder deck, 10A resistive at 600 VAC, 2 normally open contacts

Specifications

Complementary

[Icm] Rated Short-Circuit Making Capacity: 60 A 120 V AC inductive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508

Contacts Type And Composition: 2 NO 2 standard contact cartridges

Awg Gauge: AWG 18...AWG 12 copper

Electrical Connectionscrew clamp terminals

Rated Breaking Capacity6 A 120 V AC inductive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508

Tightening Torquecontrol circuit 1.02-1.36 N.m screw terminals

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1310013EN

Circularity ProfileENVEOLI1310013

Mercury FreeYes

Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Specifications

Relay Type: control relay

Product Or Component Type: adder deck

Range Of Product8501X

Environment

Product Certifications: CE || UL recognized E78403 CCN NKCR2 || CSA LR60905 class 3211 02

Downloads
