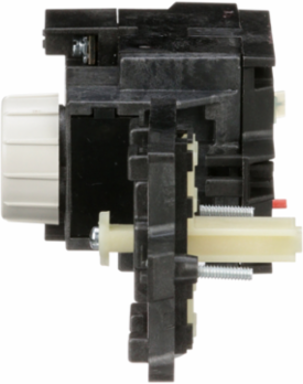

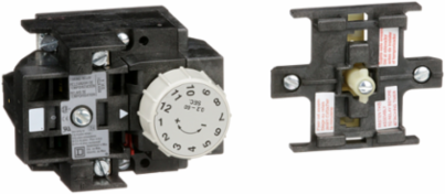

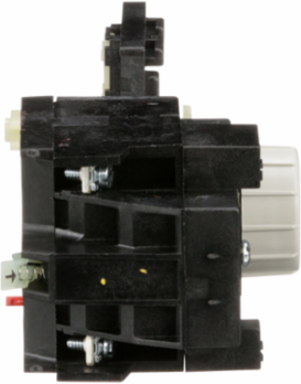

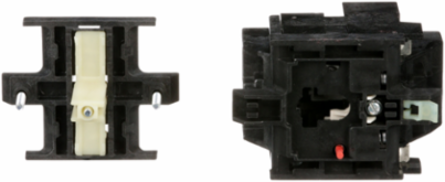

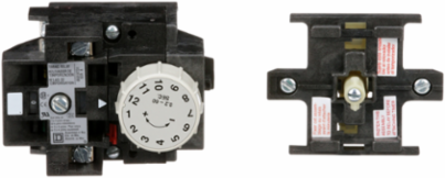

Square D 8501XTD1 NEMA Control Relay with Pneumatic Timer, 10A at 600VAC, 0.2-60s Delay
Square D 8501XTD1 NEMA Control Relay with Pneumatic Timer, 10A at 600VAC, 0.2-60s Delay
- MPN: 8501XTD1
- UPC: 785901537359
- PPN: SCH-8501XTD1
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$431.80/ EA
Description
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. This pneumatic timer attachment can be added to a standard 4 pole relay. This timer attachment comes as standard in the off delay mode but can be converted to on delay. The timer attachment comes with one normally closed and one normally open timed contact. The contacts are the standard 8501XC1 relay cartridges. The timing range of this timer attachment is from 0.2 to 60 seconds. This timer has screw clamp terminals. This timer attachment is UL listed and CSA certified.
Specifications
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1310013EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileENVEOLI1310013
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Electrical Connection
- screw clamp terminals
- Time Range
- 0.2...60 s
- Tightening Torque
- control circuit 1.02-1.36 N.m screw terminals
Contacts Type And Composition1 NO/1 NC
Awg GaugeAWG 18...AWG 12 copper
Time Delay Typeoff-delay
Specifications
- Relay Type
- control relay
- Product Or Component Type
- timing relay
Range Of Product8501X
Environment
- Product Certifications
- UL recognized E78403 CCN NKCR2 || CE || CSA LR60905 class 3211 02
