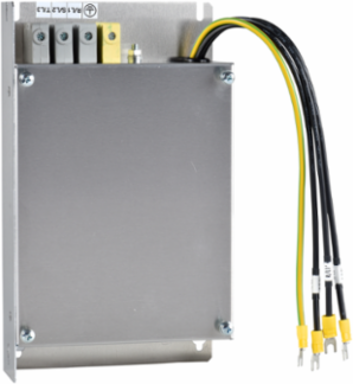

Schneider Electric VW3A31408 EMC Input Filter 3-Phase 83 A, Compatibility with Altivar Drives

  • MPN: VW3A31408
  • PPN: SCH-VW3A31408
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $479.00

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    The Schneider Electric VW3A31408 EMC Input Filter is designed to enhance the performance and reliability of Altivar Drives in 3-phase applications with a current rating of 83 A. This input filter effectively mitigates electromagnetic interference, ensuring smoother operation and compliance with electromagnetic compatibility standards. Ideal for automation and control systems, this filter plays a crucial role in optimizing motor drive performance while protecting sensitive electronic components from the adverse effects of electrical noise. Incorporating this filter can enhance system efficiency, making it a vital component for your industrial automation setup.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Hungary, Thailand, United States

    Complementary Attributes

    Line Rated Current
    83 A
    Network Rated Voltage200-240 V

    Important Information Attributes

    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Weee Applicability
    Component
    Weee Exclusion Rationale
    Component not in scope – non independent function
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    No
    Persona Type Ids
    EU
    Tier Id
    4
    Function Option Id
    STANDARD
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    Electrical Connection
    terminal 25 mm² 2 AWG
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Product Specific Application
    radio interference input filter
    Returnability
    Yes
    Sustainable Packaging
    No
    Tightening Torque
    4.5 N.m
    Vibration Resistance
    1 gn (f= 13-150 Hz) conforming to IEC 60068-2-61.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8548000000
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypeVariable speed drive - VSD option & accessory
    TraceabilityNo
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1929
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Persona Type NamesEnd User
    Tier4
    Function OptionStandard
    Market SegmentationIndustrial
    Earth Leakage Current14.5 mA 480 V 60 Hz
    Phasethree phase
    Product Or Component TypeEMC input filter
    Range Of ProductAltivar
    Shock Resistance15 gn 11 ms IEC 60068-2-27
    Thermal Losses16 W ATV21HD15M3X23.1 W ATV21HD18M3X35.2 W ATV31HD11M3X9.1 W ATV21HD11M3X
    Tolerance10 %
    Certificate AgencyIEC 61800-3
    Package Weight(Lbs)5.360 kg
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -25-70 °C, -25-70 °C
    Product Compatibility
    ATV212HD11M3X, ATV212HD15M3X, ATV212HD18M3X, ATV312HD11M3, ATV312HD15M3, variable speed drive ATV320...C11 kW, 200...240 V three phase, variable speed drive ATV320...C15 kW, 200...240 V three phase
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Ambient Air Temperature For Operation
    -10-50 °C-10-50 °C
    Ip Degree Of Protection
    IP20IP41 upper part)
    Packaging Without Single Use Plastic
    No
    Relative Humidity
    0-93 % IEC 68-2-3
    Operating Altitude<= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without current derating, <= 3280.84 ft (1000 m) without derating3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
    Take BackNo
    China Rohs RegulationX
    Mercury FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    General Attributes

    Phase
    three phase
    Range Of Product
    Altivar
    Product Or Component TypeEMC input filter

    ETIM

    ETIM 8
    EC002025
    ETIM 9EC002025

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
