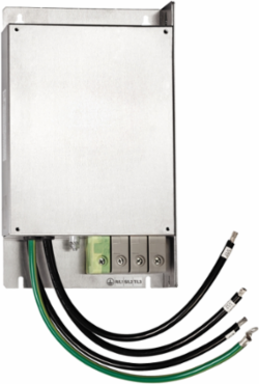

Schneider Electric VW3A4425 EMC input filter, Altivar, Lexium, 49A, 3 phases, 380…500V
- MPN: VW3A4425
- PPN: SCH-VW3A4425
CAD
$440.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32 and Altivar machine ATV320. It is mounted underneath the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Thailand
Complementary Attributes
- Line Rated Current
- 49 A
- Network Rated Voltage
- 380-500 V
Maximum Cable Distance Between Devices20 m IEC 61800-3 category C1100 m IEC 61800-3 category C2150 m IEC 61800-3 category C3
Important Information Attributes
- Range Of Product
- Lexium, Altivar
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Applicability
- Component
- Weee Exclusion Rationale
- Component not in scope – non independent function
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Persona Type Ids
- EU
- Tier Id
- 2
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Mounting Location
- below variable speed drive
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Specific Application
- radio interference input filter
- Sustainable Packaging
- No
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8548000000
Tolerance- 15...10 %, - 15...10 %
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeVariable speed drive - VSD option & accessory
TraceabilityNo
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1929
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Persona Type NamesEnd User
Tier2
Function OptionAdvanced
Market SegmentationIndustrial
Emc Filter Compatibilitytype 025
Phasethree phase
Product Or Component TypeEMC input filter
ReturnabilityYes
Thermal Losses27.4 W
Package Weight(Lbs)4.286 kg
Warranty (In Months)18
Environment Attributes Main
- Product Compatibility
- ATV32, 380...500 V, 11...15 kW, variable speed drive ATV320 11 kW, 380...500 V, three phase, variable speed drive ATV320 15 kW, 380...500 V, three phase
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Range Of Product
- Lexium, Altivar
- Product Or Component Type
- EMC input filter
Phasethree phase
ETIM
- ETIM 8
- EC002025
ETIM 9EC002025
Surge Protection And Filtering Attributes
- Emc Filter Compatibility
- type 025
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
