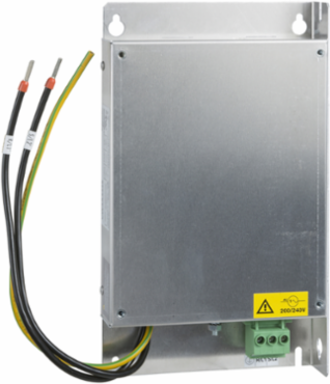

Schneider Electric VW3A4420 EMC Input Filter for Altivar & Lexium, 10.1A, Single Phase, 200-240V

MPN: VW3A4420
PPN: SCH-VW3A4420
UNSPSC: 39121021

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$129.97

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32, Altivar machine ATV320 and Lexium 28. It is mounted beside the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.

Features

Enables your servo drive to be in compliance with electromagnetic compatibility requirements
Easy to select and order thanks to the just enough number of references
Easy to mount and wire up
Specially designed for simple machines

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Thailand

Complementary Attributes

Line Rated Current	10.1 A
Network Rated Voltage	200-240 V

Maximum Cable Distance Between Devices	20 m IEC 61800-3 category C150 m IEC 61800-3 category C2

Important Information Attributes

Persona Type Ids	EU, OM
Range Of Product	Lexium, Altivar
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Weee Applicability	Component
Weee Exclusion Rationale	Component not in scope – non independent function
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Mounting Location	at variable speed drive side
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Specific Application	radio interference input filter
Sustainable Packaging	No
Accessory / Separate Part Category	protection accessories
Customs Code	8548000000

Persona Type Names	End User, Original Equipment Manufacturer
Tolerance	- 15...10 %, - 15...10 %
Local Publishable Date	2026-01-12
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1929
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Advanced
Market Segmentation	Industrial
Emc Filter Compatibility	type 020
Phase	single phase
Product Or Component Type	EMC input filter
Returnability	Yes
Thermal Losses	3.7 W
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

Product Compatibility	ATV32, 200...240 V, 0.18...0.75 kW, LXM28A, LXM32, single-phase, line current 2.9...5.4 A, variable speed drive ATV320...B 0.18 kW, 200...240 V, single phase, variable speed drive ATV320...B 0.37 kW, 200...240 V, single phase, variable speed drive ATV320...B 0.55 kW, 200...240 V, single phase, variable speed drive ATV320...B 0.75 kW, 200...240 V, single phase
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No

Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
