EMC Input Filter, 15A, 3 Phase, 380-500V, Mercury Free
Schneider Electric

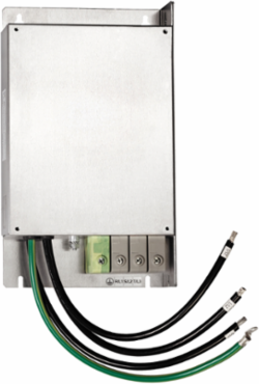

Schneider Electric VW3A4422 EMC Input Filter, 15A, 3 Phase, 380-500V, Mercury Free

  • MPN: VW3A4422
  • PPN: SCH-VW3A4422
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $95.18

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32, Altivar machine ATV320 and ATV340, Lexium 28 and Lexium 52. It is mounted beside the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, China, France, Thailand, United States

    Complementary Attributes

    Maximum Cable Distance Between Devices
    20 m IEC 61800-3 category C1, 50 m IEC 61800-3 category C2, 100 m IEC 61800-3 category C3
    Network Rated Voltage
    380-500 V
    Line Rated Current15 A

    Important Information Attributes

    Persona Type Ids
    EU, OM
    Range Of Product
    Altivar, Lexium
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Weee Applicability
    Component
    Weee Exclusion Rationale
    Component not in scope – non independent function
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    No
    Tier Id
    1
    Function Option Id
    ADVANCED
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    Mounting Location
    at variable speed drive side
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Specific Application
    radio interference input filter
    Sustainable Packaging
    No
    Accessory / Separate Part Category
    protection accessories
    Package Weight(Lbs)
    933.000 g
    Warranty (In Months)
    18
    Persona Type NamesEnd User, Original Equipment Manufacturer
    Tolerance- 15...10 %, - 15...10 %
    Local Publishable Date2026-03-26
    Stocking FlagN
    Device TypeVariable speed drive - VSD option & accessory
    TraceabilityNo
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1929
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionAdvanced
    Market SegmentationIndustrial
    Emc Filter Compatibilitytype 022
    Phasethree phase
    Product Or Component TypeEMC input filter
    ReturnabilityYes
    Thermal Losses9.9 W
    Nbr. Of Units In Pkg.1
    Take-backNo

    Environment Attributes Main

    Product Compatibility
    variable speed drive ATV340 1.5 kW, 380...480 VLXM28A, ATV32, 380...500 V, 0.37...1.5 kW, LXM32, three-phase, line current 1.2...8.7 A, variable speed drive ATV320...B 0.37 kW, 380...500 V, three phase, variable speed drive ATV320...B 0.55 kW, 380...500 V, three phase, variable speed drive ATV320...B 0.75 kW, 380...500 V, three phase, variable speed drive ATV320...B 1.1 kW, 380...500 V, three phase, variable speed drive ATV320...B 1.5 kW, 380...500 V, three phase, variable speed drive ATV320...B 2.2 kW, 380...500 V, three phase, variable speed drive ATV320...B 3 kW, 380...500 V, three phase, variable speed drive ATV320...B 4 kW, 380...500 V, three phase, variable speed drive ATV340 0.75 kW, 380...480 V
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Eu Rohs Directive
    Compliant
    Packaging Without Single Use Plastic
    No
    Take BackNo
    China Rohs RegulationX
    Mercury FreeYes
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    General Attributes

    Range Of Product
    Altivar, Lexium
    Product Or Component Type
    EMC input filter
    Phasethree phase

    ETIM

    ETIM 8
    EC002025
    ETIM 9EC002025

    Surge Protection And Filtering Attributes

    Emc Filter Compatibility
    type 022

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
