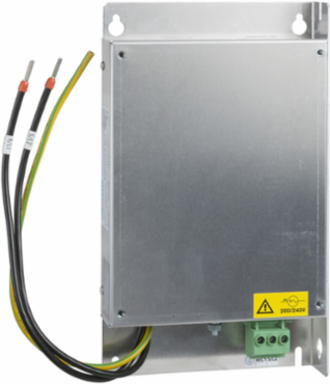

Schneider Electric VW3A4423 EMC input filter, Altivar, Lexium, 25A, 3 phases, 380…480V

EMC input filter, Altivar, Lexium, 25A, 3 phases, 380…480V
  • MPN: VW3A4423
  • PPN: SCH-VW3A4423

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$125.65/ EA

    Description

    This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 25A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C2, C3. It weighs 0.775kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems.

    Specifications

    Specifications

    Range Of Product
    Altivar || Lexium
    Product Specific Application
    radio interference input filter
    Product Or Component Type
    EMC input filter
    Mounting Location
    at variable speed drive side
    Product CompatibilityLXM28A || LXM32, three-phase, line current 14.6...18.1 A || variable speed drive ATV340 2.2 kW, 380...480 V || variable speed drive ATV340 3 kW, 380...480 V || variable speed drive ATV340 4 kW, 380...480 V || variable speed drive ATV340 5.5 kW, 380...480 V || variable speed drive ATV340 7.5 kW, 380...480 V
    Range CompatibilityLexium 32 || Lexium 52 || Lexium 28 || Altivar Machine ATV340
    Network Number Of Phasesthree phase

    Complementary

    Maximum Cable Distance Between Devices
    20 m IEC 61800-3 category C1 || 50 m IEC 61800-3 category C2 || 100 m IEC 61800-3 category C3
    Emc Filter Compatibility
    type 023
    Thermal Losses
    15.8 W
    Network Rated Voltage
    380-500 V
    Tolerance15...10 %
    [In] Rated Current25 A
    Net Weight1.35 kg

    Offer Sustainability

    China Rohs Regulation
    X
    Mercury Free
    Yes
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Reach Free Of Svhc
    Yes
    Rohs Exemption InformationYes
    Toxic Heavy Metal FreeYes
    Reach RegulationFree of Substances of Very High Concern above the threshold

    Contractual warranty

    Warranty
    18 months
