Schneider Electric VW3A31404 additionnal EMC input filter - 3-phase supply - 15 A

additionnal EMC input filter - 3-phase supply - 15 A
  • MPN: VW3A31404
  • PPN: SCH-VW3A31404

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$149.06/ EA

    Description

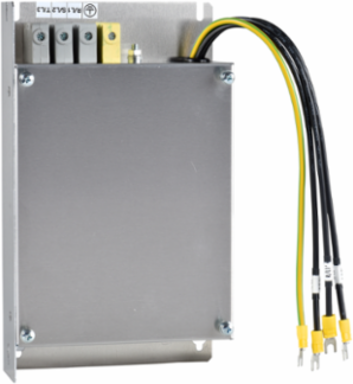

    This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 15A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2 or C3. Its protection index is IP20. It weighs 1kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.

    Specifications

    Environment

    Standards
    IEC 61800-3
    Shock Resistance
    15 gn 11 ms IEC 60068-2-27
    Ambient Air Temperature For Storage
    -25-70 °C
    Ip Degree Of Protection
    IP20 || IP41 upper part)
    Ambient Air Temperature For Operation-10-50 °C
    Vibration Resistance1 gn 13-150 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
    Relative Humidity0-93 % IEC 68-2-3
    Operating Altitude<= 1000 m without current derating || <= 1000 m without derating || 1000...3000 m with current derating 1 % per 100 m

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Toxic Heavy Metal Free
    Yes
    Reach Free Of Svhc
    Yes
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Mercury FreeYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    China Rohs RegulationX

    Complementary

    Tolerance
    10 %
    Earth Leakage Current
    15 mA 200...480 V 50 Hz || 13.8 mA 480 V 60 Hz || 6.7 mA 230 V 60 Hz
    Tightening Torque
    1.8 N.m
    Net Weight1 kg
    Network Rated Voltage200-240 V || 380-500 V
    Electrical Connectionterminal 10 mm² AWG 6

    Specifications

    Range Of Product
    Altivar
    Product Or Component Type
    EMC input filter
    Product Specific Application
    radio interference input filter
    Range Compatibility
    Altivar 31C || Lexium 23 Plus || Altivar 312 || Altivar 312 Solar || Altivar Machine ATV320 || Lexium 05 || Altivar 212
    Product Compatibilityservo drive LXM230.75 kW || servo drive LXM231 kW || servo drive LXM231.5 kW || servo drive LXM232 kW || servo drive LXM233 kW || ATV212H075M3X || ATV212H075N4 || ATV212HU15M3X || ATV212HU15N4 || ATV212HU22M3X || ATV212HU22N4 || ATV31C037N4 || ATV31C055N4 || ATV31C075N4 || ATV31CU11N4 || ATV31CU15N4 || LXM05AD14N4 || LXM05AD17M3X || LXM05BD14N4 || LXM05BD17M3X || LXM05CD14N4 || ATV312HU11M3 || ATV312HU15M3 || ATV312HU22M3 || ATV312H037N4 || ATV312H055N4 || ATV312H075N4 || ATV312HU11N4 || ATV312HU15N4 || variable speed drive ATV320...C0.37 kW, 380...500 V three phase || variable speed drive ATV320...C0.55 kW, 380...500 V three phase || variable speed drive ATV320...C0.75 kW, 380...500 V three phase || variable speed drive ATV320...C1.1 kW, 380...500 V three phase || variable speed drive ATV320...C1.5 kW, 380...500 V three phase || variable speed drive ATV320...C1.1 kW, 200...240 V three phase || variable speed drive ATV320...C1.5 kW, 200...240 V three phase || variable speed drive ATV320...C2.2 kW, 200...240 V three phase || variable speed drive ATV320...W/ATV320...WS0.37 kW, 380...500 V three phase || variable speed drive ATV320...W/ATV320...WS0.55 kW, 380...500 V three phase || variable speed drive ATV320...W/ATV320...WS0.75 kW, 380...500 V three phase || variable speed drive ATV320...W/ATV320...WS1.1 kW, 380...500 V three phase || variable speed drive ATV320...W/ATV320...WS1.5 kW, 380...500 V three phase
    Network Number Of Phasesthree phase
    [In] Rated Current15 A
    Thermal Losses0.13 W ATV21H075N4 || 0.45 W ATV21HU15N4 || 0.47 W ATV21H075M3X || 0.9 W ATV21HU22N4 || 1.6 W ATV21HU15M3X || 3.3 W ATV21HU22M3X || 9.9 W ATV31HU11M3X
