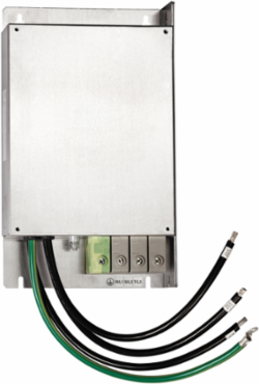

Schneider Electric VW3A4424 EMC Input Filter, 47A, 3 Phase, 380-500V, 3.15 kg

EMC Input Filter, 47A, 3 Phase, 380-500V, 3.15 kg
  • MPN: VW3A4424
  • PPN: SCH-VW3A4424
  • UNSPSC: 39121021

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$346.80/ EA

    Description

    Designed for compatibility with Schneider Electric's Altivar and Lexium ranges, this EMC input filter is essential for maintaining optimal performance in three-phase systems operating between 380 to 500V. With a line rated current of 47A and thermal losses of just 19.3W, it effectively minimizes radio interference, ensuring smooth operation of variable speed drives. Weighing in at 3.15 kg, this filter can be conveniently mounted below the variable speed drive, making it a practical addition to your setup. Please note the product comes with an 18-month warranty and a caution regarding exposure to certain chemicals as outlined by California Proposition 65.

    Features

    • Enable the drives to meet more stringent requirements
    • Reduce conducted emissions on the supply mains
    • Conforms to standard IEC 61800-3 category C1 or C6
    • Save space with drive mounting onto the filter.

    Specifications

    Complementary Attributes

    Maximum Cable Distance Between Devices
    20 m IEC 61800-3 category C1, 100 m IEC 61800-3 category C2, 150 m IEC 61800-3 category C3
    Network Rated Voltage
    380-500 V
    Line Rated Current47 A

    Important Information Attributes

    Range Of Product
    Altivar, Lexium
    Local Data Status
    Publishable
    Device Type
    Variable speed drive - VSD option & accessory
    Traceability
    No
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    ROHS EUR In Scope
    No
    ROHS EUR Full Compliance Status
    Pro-active compliance (Product out of EU RoHS legal scope)
    China ROHS In Scope
    Yes
    Without Single Use Plastic
    No
    Return Indicator
    Y
    Mounting Location
    below variable speed drive
    Phase
    three phase
    Product Or Component Type
    EMC input filter
    Returnability
    Yes
    Accessory Separate Part Category2
    protection accessories
    Stocking Flag
    Y
    Thermal Losses
    19.3 W
    Tolerance- 15...10 %, - 15...10 %
    Local Publishable Date2026-01-12
    ServiceabilityNo
    Legacy WEEE ScopeOut
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    ROHS EUR StatusCompliant
    ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    EMC Filter Compatibilitytype 024
    Package Weight Lbs3.010 kg
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Product Specific Applicationradio interference input filter
    Sustainable PackagingNo
    Medium DescEMC input filter, Altivar, Lexium, 47A, 3 phases, 380 to 500V
    Product Kit IdentifierN
    Global Commercial StatusCommercialised

    Environment Attributes Main

    Take Back
    No, Nej
    Product Compatibility
    variable speed drive ATV320...W/ATV320...WS 7.5 kW, 380...500 V, three phase, LXM28A, ATV32, 380...500 V, 5...7.5 kW, variable speed drive ATV320 5.5 kW, 380...500 V, three phase, variable speed drive ATV320 7.5 kW, 380...500 V, three phase, variable speed drive ATV320...W/ATV320...WS 5.5 kW, 380...500 V, three phase
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Packaging Made With Recycled Cardboard
    No
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
    ROHS Exemption InformationYes
    China ROHS RegulationX
    Mercury FreeYes
    Packaging Without Single Use PlasticNo

    General Attributes

    Range Of Product
    Altivar, Lexium
    Product Or Component Type
    EMC input filter
    Phasethree phase

    Surge Protection And Filtering Attributes

    EMC Filter Compatibility
    type 024

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Specifications

    Country of Origin
    Thailand
