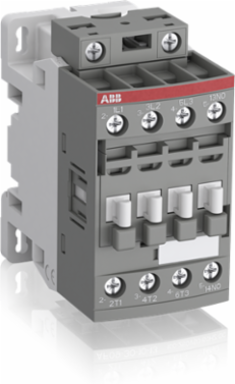

ABB AF12N0-30-01-11 3-Pole Contactor, 600V AC, 28A, 24-60V Control Voltage
- MPN: AF12N0-30-01-11
- UPC: 888614038042
- PPN: ABB-AF12N0-30-01-11
- UNSPSC: 39121529
CAD
$445.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The AF12N0-30-01-11 is a 3 pole - 600 V UL, NEMA size N0 contactor with 1 built-in auxiliary contact and Screw, switching power circuits up to 28 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Specifications
Additional
- Voltage Rating
- 690 V Main Circuit, 600 V UL/CSA
- Current Rating
- 28 A
- Rated Operational Voltage
- 690 V Auxiliary Circuit, 690 V Main Circuit
- Rated Operational Power AC-3 (Pe)
- 3 kW (220-240 V), 5.5 kW (380-440 V), 7.5 kW (500-690 V)
- Horsepower Rating NEMA
- 1 Hp (115 V), 2 Hp (230 V Single Phase), 3 Hp (200-230 V Three Phase), 5 Hp (460-575 V Three Phase)
- NEMA Size
- 0 (N0)
- Number of Main Contacts NO
- 3
- Number of Auxiliary Contacts NO
- 0
- Maximum Electrical Switching Frequency
- AC-1: 600 cycles/h, AC-15: 1200 cycles/h, AC-2/AC-4: 300 cycles/h, AC-3: 1200 cycles/h, DC-13: 900 cycles/h
- Rated Impulse Withstand Voltage (Uimp)
- 6 kV
- Continuous Current Rating NEMA
- 18 A
- Resistance to Vibrations
- 5-300 Hz, 4 g closed / 2 g open position
- Rated Frequency
- 50 / 60 Hz (Auxiliary, Control, Main Circuits)
- Mounting Position
- Positions 1, 1 30 , 2, 3, 4, 5
- Terminal Type
- Screw Terminals
- Dimensions
- Height 86 mm, Width 45 mm, Depth/Length 77 mm
- Connecting Capacity Main Circuit
- Flexible with ferrule 0.75-6 mm2, rigid solid/stranded 1-6 mm2
- Connecting Capacity Control Circuit
- Flexible with ferrule 0.75-2.5 mm2
- Pollution Degree
- 3
- Climatic Withstand
- Category B acc. IEC 60947-1 Annex Q
- Maximum Operating Altitude
- 3000 m without derating
- RoHS Information
- 2CMT2021-006277
- eClass
- V11.0 : 27371003
Control Voltage Range24-60 V AC 50/60 Hz, 20-60 V DC
Rated Operational Current AC-1 (Ie)(690 V) 40 C 28 A, 60 C 28 A, 70 C 24 A
Rated Operational Current AC-3 (Ie)(415-500 V) 12-12.5 A, (690 V) 9 A at 60 C
Rated Operational Current DC-13 (Ie)24 V 6 A / 144 W, 600 V 0.1 A / 60 W, various voltages
Full Load Amps Motor Use1 A (120 V AC Single Phase), 2 A (240 V AC Single Phase), 3 A (200-240 V AC Three Phase), 7.5 A (440-480 V AC Three Phase), 10 A (550-600 V AC Three Phase)
Number of Poles3
Number of Auxiliary Contacts NC1
Auxiliary Contacts1 Built-in NC, Screw type
Maximum Breaking Capacity250 A at 440 V (cos =0.45), 106 A at 690 V (cos =0.45)
Rated Insulation Voltage (Ui)690 V acc. IEC 60947-4-1 & 5-1; 600 V UL/CSA
Power Loss0.1 W at 6 A per pole, 1 W AC-1 per pole, 0.2 W AC-3 per pole
Resistance to ShockClosed: 15-30 g depending on direction; Open: 5-30 g depending on direction
Mounting on DIN RailTH35-15 and TH35-7.5 acc. IEC 60715
Mounting by Screws2 x M4 screws diagonally
Wire Stripping Length10 mm (Auxiliary, Control, Main Circuits)
Weight0.27 kg
Connecting Capacity Auxiliary CircuitFlexible with ferrule 0.75-2.5 mm2, rigid solid/stranded 1-2.5 mm2
Tightening TorqueAuxiliary/Control Circuit 1.2 N m (11 in lb), Main Circuit 1.5 N m (13 in lb)
Degree of ProtectionIP20 (Auxiliary, Coil, Main Terminals) acc. IEC 60529 / EN 60529
Ambient Air Temperature-25 to 60 C with thermal O/L relay, -40 to 70 C without, Storage -60 to +80 C
StandardsIEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
WEEE CategoryNot in WEEE Scope
Object Classification CodeQ
