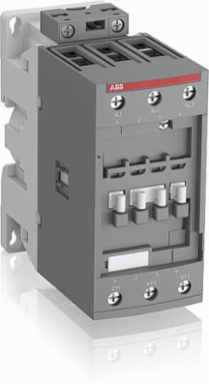

ABB AF65-30-00-41 3 Pole 690V Contactor, 105A, 24-60V AC Control Circuit
- MPN: AF65-30-00-41
- UPC: 888614000643
- PPN: ABB-AF65-30-00-41
- UNSPSC: 39121529
CAD
$707.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The AF65-30-00-41 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 30 kW / 400 V AC (AC-3) or 50 hp / 480 V UL and switching power circuits up to 105 A (AC-1) or 90 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Specifications
Additional
- Voltage
- 690 V IEC, 600 V UL
- Rated Operational Current AC-1 (Ie)
- (690 V) 40 C 105 A, 60 C 90 A, 70 C 80 A
- Poles
- 3
- Rated Insulation Voltage (Ui)
- 690 V AC IEC, 600 V UL/CSA
- Horsepower Rating UL/CSA
- (120 V AC) 5 hp single phase, (200-208 V AC) 20 hp three phase, (220-240 V AC) 25 hp three phase, (240 V AC) 15 hp single phase, (440-480 V AC) 50 hp three phase, (550-600 V AC) 60 hp three phase
- Rated Operational Power AC-3 (Pe)
- (400 V) 30 kW, (415-690 V) 37 kW, (220-240 V) 18.5 kW
- Rated Operational Current DC-5 (Ie)
- (110 V and 220 V) 2 or 3 Poles in Series, 40 C 105 A, 60 C 90 A, 70 C 80 A
- Rated Operational Current DC-1 (Ie)
- (110 V and 220 V) 2 or 3 Poles in Series, 40 C 105 A, 60 C 90 A, 70 C 80 A
- Conventional Free-air Thermal Current (Ith)
- 105 A at 40 C
- Maximum Electrical Switching Frequency
- AC-1: 600 cycles/hour, AC-2/AC-4: 150 cycles/hour, AC-3: 1200 cycles/hour
- Operate Time
- De-energization NC contact closing 19-105 ms, NO contact opening 17-100 ms, Energization NC contact opening 38-95 ms, NO contact closing 42-100 ms
- Number of Main Contacts NO
- 3
- Number of Auxiliary Contacts NO
- 0
- Product Net Dimensions
- Height 125.5 mm, Width 55 mm, Depth/Length 111 mm
- Wire Stripping Length
- Control Circuit 10 mm, Main Circuit 16 mm
- Connecting Capacity Main Circuit UL/CSA
- Rigid Stranded 1/2x 10-2 AWG
- Connecting Capacity Control Circuit UL/CSA
- Rigid Solid 1/2x 18-14 AWG, Rigid Stranded 1/2x 18-14 AWG
- Mounting Type
- DIN Rail TH35-15 or TH35-7.5 acc. to IEC 60715, Mounting by 2x M4 or 2x M6 screws diagonally placed
- Resistance to Vibrations
- 5-300 Hz, 3 g closed/open position acc. to IEC 60068-2-6
- Degree of Protection
- Coil Terminals IP20, Main Terminals IP10 acc. to IEC 60529/60947-1
- Standards
- IEC/EN 60947-1, 60947-4-1; UL 60947-1, 60947-4-1; CSA C22.2 No. 60947-1, 60947-4-1
- Customs Tariff Number
- 85364900
- eClass
- V11.0 : 27371003
Motor Power Rating30 kW / 400 V AC, 50 hp / 480 V UL
Rated Operational Current AC-3 (Ie)(415 V) 60 C 65 A, (440 V) 60 C 65 A, (500 V) 60 C 55 A, (690 V) 60 C 39 A
Frequency50/60 Hz
Rated Impulse Withstand Voltage (Uimp)6 kV
Rated Control Circuit Voltage (Uc)50 Hz 24 to 60 V, 60 Hz 24 to 60 V DC
Rated Operational Power AC-3e (Pe)(415-690 V) 37 kW, (380-400 V) 30 kW, (220-240 V) 18.5 kW
Rated Operational Current DC-3 (Ie)(110 V and 220 V) 2 or 3 Poles in Series, 40 C 105 A, 60 C 90 A, 70 C 80 A
Maximum Operating Altitude3000 m without derating
Maximum Breaking Capacity950 A at 440 V, 600 A at 690 V (cos phi 0.45, 0.35 for Ie > 100 A)
Maximum Mechanical Switching Frequency3600 cycles per hour
Number of Poles3 poles
Number of Main Contacts NC0
Number of Auxiliary Contacts NC0
Product Net Weight0.97 kg
Connecting Capacity Main CircuitFlexible with Ferrule 1/2x 4-35 mm2, Rigid Stranded 1/2x 6-35 mm2
Connecting Capacity Control CircuitFlexible with Ferrule 1/2x 0.75-2.5 mm2, Rigid Solid 1/2x 1-2.5 mm2
Terminal TypeScrew Terminals
Tightening Torque UL/CSAControl Circuit 11 in lb, Main Circuit 35 in lb
Resistance to ShockClosed shock directions 15-25 g, Open shock direction 5 g acc. to IEC 60068-2-27
Ambient Air Temperature-40 to 70 C close to contactor, -60 to +80 C for storage
RoHS StatusCompliant with EU Directive 2011/65/EU
ETIMEC000066 - Magnet contactor, AC-switching
