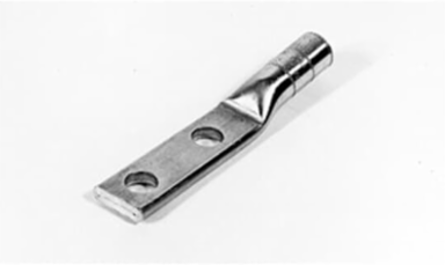

Blackburn AL 500 NRTN Aluminum Compression Lug 500 kcmil, Length 5.815 Inch, Tin Plated
- MPN: AL 500 NRTN
- UPC: 783786693849
- PPN: T-B-AL 500 NRTN
- UNSPSC: 39121409
CAD
$211.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Tin Plated Aluminum Compression Lug with Right Hand Configuration, 477-500 kcmil, 600 Compact AL-CU, 397.5 (26/7) 477 (18/1), Dies 1 5/16, 106A, 300, 317, 14A, 15A. Two Hole NEMA Pad, Length 5.815 inches, Barrel 2-9/16 inches, Pad 1-3/4 inch wide, 4-1/8 inch from End of Pad to side of Barrel x 29/64 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch spacing. Oxide Inhibitor. Pink Cap.
Specifications
Additional Information
- Application
- General Purpose Lugs for Aluminum and Copper Terminations
- Connection Type
- Compression
- Insulation Material
- None
- Product Type
- Compression Lug Two Hole
- Special Functions
- Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.
- Surface Finishing
- Tin Plated
- Wire Size
- 500 kcmil
Brand / LabelHomac
Effective Date20080619
Product NameELECTRICAL TERMINAL<1000V
SizeLength 5.815 inches, Barrel 2.563 inches, Pad 1.750 inch wide, 4.125 inch from End of Pad to side of Barrel.
StandardsANSI C119.4
Temperature Range90 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
