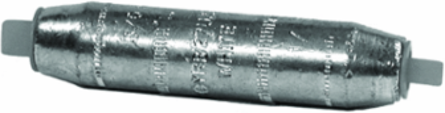

Burndy YRB25U6 Aluminum Electro Tin Plated Reducer, 2 Inch Overall Length, 0.65 Inch Diameter, 35 kV Rating
- MPN: YRB25U6
- UPC: 781810511619
- PPN: BUR-30006107
CAD
$16.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Electro tin plated reducer; UL Listed;RatingKVA 35 KV
Documentation & Downloads
Specifications
Additional
| Voltage Rating | 35 kV |
|---|---|
| Dimension - Length Overall | 2 in |
| Dimension - Strip Length | 5/16 in |
| Conductor - Copper Str Size | 1/0 AWG, 3 AWG, 4 AWG |
| Connector Type | Reducer |
| Plating Type | Tin - Electro Plated |
| Certification - cULus | No |
| Certification - CSA Approved | No |
| Color Code | Orange, Tan |
| Temperature Rating | 194 F |
|---|---|
| Dimension - Outside Diameter | 0.65 in |
| Dimension - B Length | 0.88 in |
| Conductor - AL Str Size | 1/0 AWG, 3 AWG, 4 AWG |
| Material | Aluminum, Electro Tin Plated |
| Certification - UL Listed | Yes |
| Certification - ETL | No |
| Standards - RoHS Compliance Status | CM |
| Trade Name | HYREDUCERTM |
