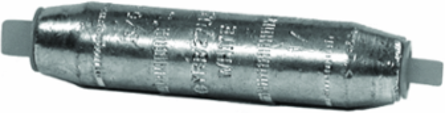

Burndy YRB25U2 Aluminum Reducer Butt Splice, 1/0 AWG to 2 AWG, 2 Inch Long, Tin Plated
- MPN: YRB25U2
- UPC: 781810739037
- PPN: BUR-252355
CAD
$10.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Reducer Butt Splice, Barrel A: 1/0 AWG (Str), Barrel B: 1-2 AWG (Str), 2" Long, Tin Plated.
Features
- Used within underground systems
Documentation & Downloads
Specifications
Additional
| Voltage Maximum | 35000 V |
|---|---|
| KVA Rating | 35 kV |

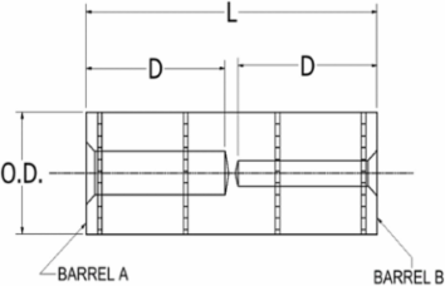

| Length | 2.00 in |
| Dimension - B Length | 0.88 in |
| Conductor Size A | 1/0 AWG |
| Connector Type | Reducer |
| Plating Type | Tin - Electro Plated |
| Barrel Style | Chamfered |
| UL Listed | Yes |
| Color | Orange, Tan |
| Minimum Voltage | 600 V |
|---|---|
| Temperature Rating | 194 6F |
| Dimension - Strip Length | 15/16 in |
| Dimension - Outside Diameter | 0.65 in |
| Conductor Size B | 2 AWG, 1 AWG |
| Material | Aluminum |
| Number of Crimps Required | 1 |
| Industry Standards | UL468A-468B |
| RoHS Compliance | CM |
