Blackburn ATC 750 R 500-6 Aluminum Tapered Reducing Splice 6 Inch Long, 750-500 kcmil AL-CU
- MPN: ATC 750 R 500-6
- UPC: 783786697656
- PPN: T-B-ATC 750 R 500-6
- UNSPSC: 39121449
CAD
$166.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

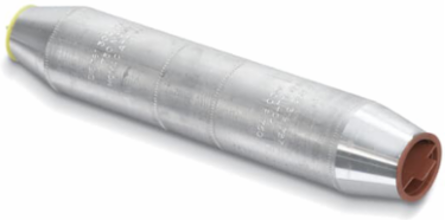

Aluminum Tapered Reducing Splices, wire size 750 kcmil AL-CU to 500 kcmil AL-CU. Installing Dies 140H, 301, 342, 1 1/2. Length 6 inch. Outside Diameter 1-19/64. Oil Stop. Oxide Inhibitor. Yellow Cap. Pink Cap.
Specifications
Additional Information
| Application | Tapered ends enable use in High-Voltage Applications up to 69kV. |
|---|---|
| Connection Type | Compression |
| Insulation Material | None |
| Product Type | Compression Splice Tapered Reducer |
| Special Functions | Solid center stop ensures proper cable insertion. Dual rated for use with Aluminum and Copper Conductors. All Splices marked with die references for easy installation. Connector bores coated with oxide inhibitor to prevent oxidation. |
| Surface Finishing | Bare |
| Brand / Label | Homac |
|---|---|
| Effective Date | 20080619 |
| Product Name | ELECTRICAL SPLICE<1000V |
| Size | 6 inch long |
| Standards | ANSI C119.4 |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4669 >> Wire or cable compression splice |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
