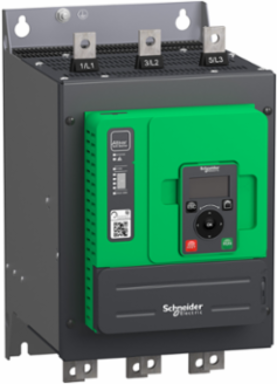

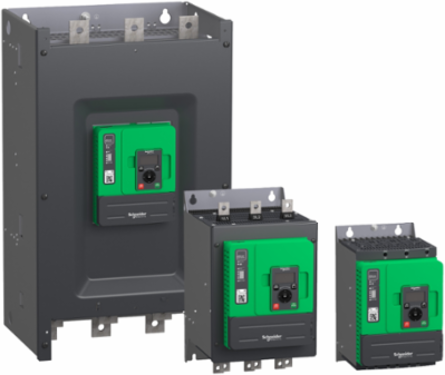

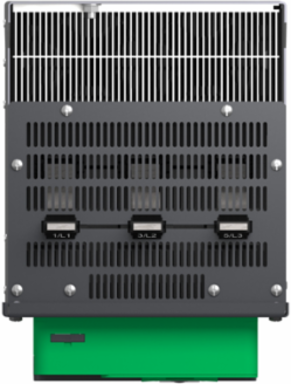

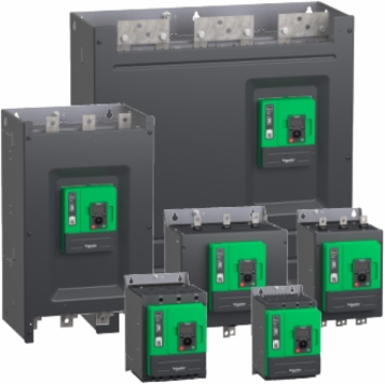

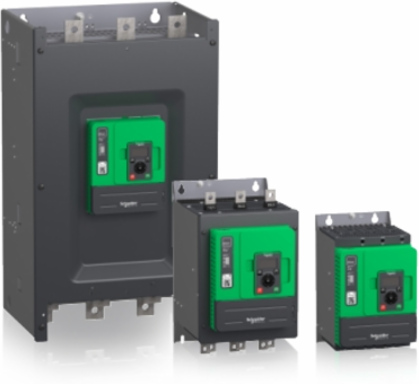

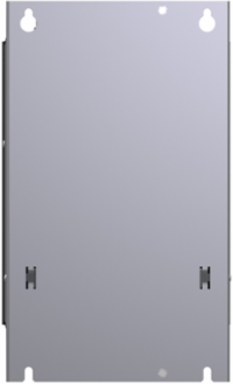

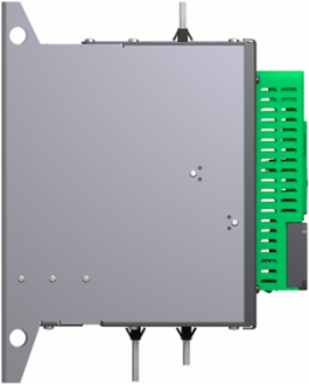

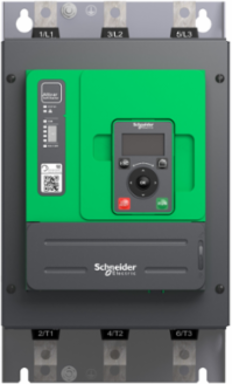

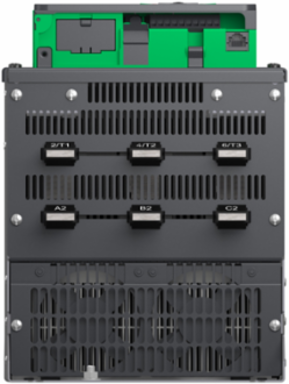

Schneider Electric ATS480C14Y Altivar Soft Starter, 140A, 208-690V AC, Control Supply 110-230V AC
- MPN: ATS480C14Y
- PPN: SCH-ATS480C14Y
CAD
$4218.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 140A in normal duty, it supplies motor from 37kW to 110kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 200mm (width) x 272mm (depth) x 340mm (height) and it weighs 12,4kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus… The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, United States

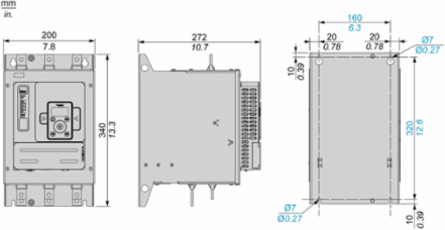

Depth272.0 mm
Communications & Management Attributes
- Communication Data Link
- serial
Communication Port ProtocolModbus serial
Complementary Attributes
- Maximum Horse Power Rating
- 40.0 hp 230 V heavy duty100.0 hp 575 V heavy duty40.0 hp 208 V normal duty30.0 hp 208 V heavy duty50.0 hp 230 V normal duty100.0 hp 460 V normal duty, 75.0 hp 460 V heavy duty125.0 hp 575 V normal duty
- Integrated Motor Overload Protection
- true
- Minimum Switching Current
- 100 mA 12 V DC relay outputs
Maximum Switching Currentrelay outputs, relay outputs 2 A 250 V ACrelay outputs 2 A 30 V DC
Maximum Permanent Current110.0 A at 40 °C heavy duty
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8

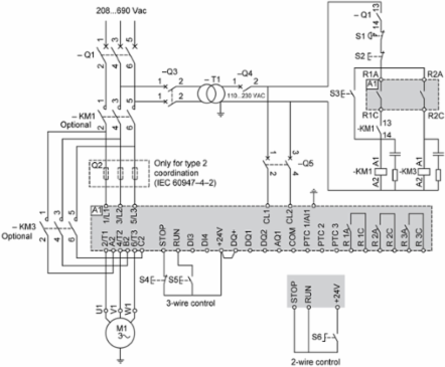

- Device Connection
- in the motor supply line, to the motor delta terminals
- Function Available
- external bypass control, pre-heating, smoke extraction, multi-motor cascade, second motor set, user management, ports and services hardening, security event logging, cybersecure firmware update, single direction
- Motor Power Kw
- 55.0 kW 440 V in the motor supply line heavy duty75.0 kW 500 V in the motor supply line heavy duty75.0 kW 525 V in the motor supply line heavy duty90.0 kW 660 V in the motor supply line heavy duty90.0 kW 690 V in the motor supply line heavy duty55.0 kW 230 V to the motor delta terminals heavy duty110.0 kW 400 V to the motor delta terminals normal duty90.0 kW 400 V to the motor delta terminals heavy duty, 37.0 kW 230 V in the motor supply line normal duty30.0 kW 230 V in the motor supply line heavy duty75.0 kW 400 V in the motor supply line normal duty, 55.0 kW 400 V in the motor supply line heavy duty, 75.0 kW 440 V in the motor supply line normal duty90.0 kW 500 V in the motor supply line normal duty, 90.0 kW 525 V in the motor supply line normal duty110.0 kW 660 V in the motor supply line normal duty, 110.0 kW 690 V in the motor supply line normal duty, 75.0 kW 230 V to the motor delta terminals normal duty
- Protection Type
- line supply phase loss motorthermal protection motor, phase failure lineintegrated thermal protection motorthermal protection starter, current overload motor, underload motor, excessive starting time, locked rotor motor, motor phase loss motor, line supply phase loss line
- Certificate Agency
- CE, cULus, CCC, UKCA, RCM, EAC, DNV, ABS, BV, CCS
- Environmental Class (During Operation)
- class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
- Maximum Acceleration Under Vibratory Load (During Transport)
- 15 m/s² at 200...500 Hz, 10 m/s² at 9...200 Hz
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2.428081844, 2 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 442 kg CO2 eq., 441.5527801418
- Local Data Status
- Publishable
- Pre Comm Date
- 2021-09-15
- Stocking Flag
- Y
- Device Type
- Soft starter - Soft starter
- Traceability
- Yes
- Average Life Duration
- 10 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2009022EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2149
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Connector Type
- 1 RJ45
- Device Short Name
- ATS480
- Method Of Access
- slave Modbus serial
- Noise Level
- 50.0 dB
- Operating Position
- vertical +/- 10 degree
- Power Loss Per Device Current Dependent
- 366.0 W
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- soft starter
- Range Of Product
- Altivar Soft Starter ATS480
- Software Version
- EIME v5.9.1
- Sustainable Packaging
- No
- Transmission Frame
- RTU
- Type Of Polarization
- no impedance Modbus serial
- Volume Of Cooling Air
- 138.0 m3/h
- With Safety Function Safe Programmable Logic
- false
- Pep Code
- ENVPEP2009022EN
- Pep Verification Date
- 2021-11-01
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- The aim of soft starter is to drive an asynchronous motor (squirrel cage) by limitation of the current during acceleration and deceleration phase with a torque control. It’s based on three phases dimmer with Silicon controlled rectifier (thyristor). The rating of softstarter is given by nominal current 170 A in the case study which lead to drive several power motor depending of power network ie 230V power motor of 45kW and 690V power motor of 160kW. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 45% uptime in use phase, 45% uptime in stand by phase and 10% uptime in off phase.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 16595.82
- Energy Model - Installation [A5]
- Electricity Mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; AC; < 1kV; EU-27
- Width Nominal
- 200.0 mm
- [Uc] Control Circuit Voltage
- 24 V DC110...230 V AC 50/60 Hz - 15...10 %
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Maximum Acceleration Under Shock Impact (During Operation)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Shock Load (During Transport)
- 100 m/s² at 11 ms
- Maximum Deflection Under Vibratory Load (During Operation)
- 1.5 mm at 2...13 Hz
- Maximum Deflection Under Vibratory Load (During Transport)
- 1.75 mm at 2...9 Hz
- With Safety Function Safe Direction (Sdi)
- false
- With Safety Function Safe Position (Sp)
- false
- With Safety Function Safe Stop 1 (Ss1)
- false
- With Safety Function Safely Limited Position (Slp)
- false
- With Sft Fct Safe Stop 2 (Ss2)
- false
- Package Weight(Lbs)
- 14.386 kg
- Warranty (In Months)
- 18
- Customs Code
- 8537109170
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Compatibilityconducted and radiated emissions level A conforming to IEC 60947-4-2conducted and radiated emissions with bypass level B conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12electrostatic discharge level 3 conforming to IEC 61000-4-11, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3voltage/current impulse level 3 conforming to IEC 61000-4-5
MarkingCE, CCC, UKCA, EAC, RCM, cULus
Option Cardcommunication module Profibus DP V1, communication module Modbus TCP/EtherNet/IP, communication module CANopen daisy chain, communication module CANopen Sub-D, communication module CANopen open style, communication module PROFINET
Utilisation CategoryAC-3A, AC-53A
[Ue] Rated Operational Voltage440 V 55.0 kW in the motor supply line heavy duty500 V 75.0 kW in the motor supply line heavy duty525 V 75.0 kW in the motor supply line heavy duty660 V 90.0 kW in the motor supply line heavy duty690 V 90.0 kW in the motor supply line heavy duty230 V 40.0 hp heavy duty575 V 100.0 hp heavy duty, 230 V 37.0 kW in the motor supply line normal duty230 V 30.0 kW in the motor supply line heavy duty400 V 75.0 kW in the motor supply line normal duty, 400 V 55.0 kW in the motor supply line heavy duty, 440 V 75.0 kW in the motor supply line normal duty500 V 90.0 kW in the motor supply line normal duty, 525 V 90.0 kW in the motor supply line normal duty660 V 110.0 kW in the motor supply line normal duty, 690 V 110.0 kW in the motor supply line normal duty208 V 40.0 hp normal duty, 208 V 30.0 hp heavy duty, 230 V 50.0 hp normal duty460 V 100.0 hp normal duty, 460 V 75.0 hp heavy duty575 V 125.0 hp normal duty
Maximum Acceleration Under Vibratory Load (During Storage)15 m/s² at 200...500 Hz, 10 m/s² at 9...200 Hz
Carbon Footprint Of The Distribution Phase [A4]1.9172561702, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1 kg CO2 eq., 0.1049390014
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]9 799 kg CO2 eq., 9798.7956777996
Local Publishable Date2026-01-12
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionIDIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier1
Function OptionStandard
Market SegmentationIndustrial
Apparent Power0.09 kVA
Data Format8 bits, configurable odd, even or no parity
Display Screen Availabletrue
Network Frequency50/60 Hz
Number Of Addresses0-227 Modbus serial
Phase3 phase
Power Loss Static Current Independent25.0 W
Product Destinationasynchronous motors
Product Specific Applicationprocess and infrastructures
ReturnabilityYes
Supply Frequency50...60 Hz - 20...20 %
Total Lifecycle Carbon Footprint10 245 kg CO2 eq.
Transmission Rate1200...256000 bit/s
UpdatabilityUpgradeable through digital modules
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Torque Controltrue
Database Version2020-12
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity Mix; AC; < 1kV; EU-27
Height Nominal340.0 mm
[Ie] Rated Operational Currentnormal duty 140.0 A 40 °C)
[Ui] Rated Insulation Voltage690 V
[Us] Rated Supply Voltage208...690 V - 15...10 %
Maximum Acceleration Under Shock Load (During Storage)100 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load (During Storage)1.75 mm at 2...9 Hz
With Safety Function Safe Brake Management (Sbc/Sbt)false
With Safety Function Safe Operating Stop (Sos)false
With Safety Function Safe Speed Monitor (Ssm)false
With Safety Function Safe Torque Off (Sto)false
With Safety Function Safely Limited Speed (Sls)false
Nbr. Of Units In Pkg.1
Take-backNo
[In] Rated Current Pwr Loss Specifctn2140.0 A
Environment Attributes Main
- Ambient Air Temperature For Operation
- -15-40 °C (without derating), -15-40 °C (without derating), 40-60 °C (with current derating of 2 % per °C), -15-40 °C (without derating), -15-40 °C (without derating)
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2009022EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2009022EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint10244.7987349571
Environmental DisclosureENVPEP2009022EN
Ip Degree Of ProtectionIP00
Packaging Without Single Use PlasticNo
Relative Humidity0-95 % without condensation or dripping water IEC 60068-2-3
Pep Verification Date2021-11-01
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altivar Soft Starter ATS480
Product Or Component Typesoft starter
ETIM
- ETIM 8
- EC000640
ETIM 9EC000640
Output Attributes
- Discrete Output Type
- DQ1) programmable digital output <= 30 V, DQ2) programmable digital output <= 30 V
- Analogue Output Number
- 1
- Discrete Output Number
- 2
- Output Current Drift
- 150-700 %
Relay Output Typerelay outputs R1A 1 NO, relay outputs R1B 1 NOrelay outputs RIC NO/NC programmable
Analogue Output Typecurrent output AQ1 0...20 mA or 0...10 V 500 Ohm
Output Compatibilityopen collector level 1 PLC IEC 65A-68
Relay Output Number3
Input Attributes
- Analogue Input Type
- AI1/PTC PTC/Pt 100 temperature probe, PTC2 PTC/Pt 100 temperature probe, PTC3 PTC/Pt 100 temperature probe
- Input Compatibility
- STOP discrete input level 1 PLC IEC 61131-2, RUN discrete input level 1 PLC IEC 61131-2, DI3 discrete input level 1 PLC IEC 61131-2, DI4 discrete input level 1 PLC IEC 61131-2
- Discrete Input Logic
- programmable digital input < 5 V
Discrete Input TypeSTOP) logic inputs, 3500 Ohm, RUN) logic inputs, 3500 OhmDI3) programmable as logic input, 3500 Ohm, DI4) programmable as logic input, 3500 Ohm
Analogue Input Number1
Discrete Input Number4
Batteries & Runtime Attributes
- Removable Battery
- Yes
