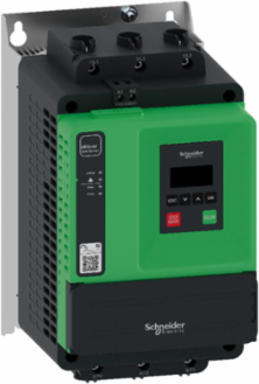

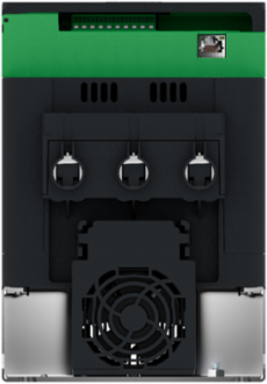

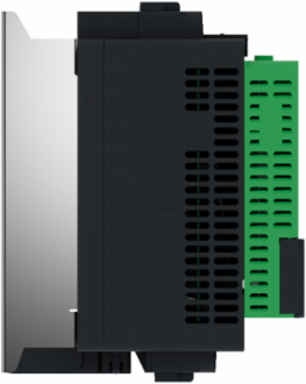

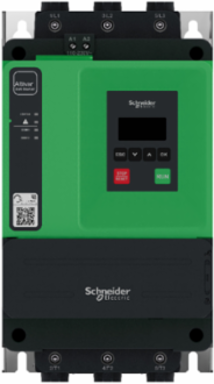

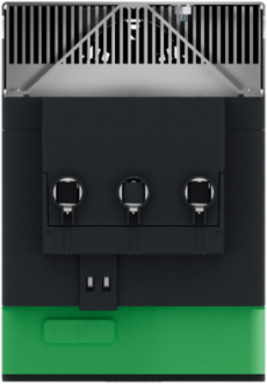

Schneider Electric ATS430C11S6 Soft starter, Altivar Soft Starter ATS430, 110A, 208 to 600V AC, control supply 110 to 230V AC
Schneider Electric ATS430C11S6 Soft starter, Altivar Soft Starter ATS430, 110A, 208 to 600V AC, control supply 110 to 230V AC
- MPN: ATS430C11S6
- PPN: SCH-ATS430C11S6
- UNSPSC: 39121521
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2614.97/ EA
Description
Soft starter, Altivar Soft Starter ATS430, 110A, 208 to 600V AC, control supply 110 to 230V AC
Features
- Reduce time (design to operation) and overall cost
- Improved sustainability (enviromental performance, durability and efficiency)
- Reduced operational expenditure (high durability)
- Withstand high stress and avoid limiting event (increased reliability by design)
- Meets cybersecurity standards (integrates best practice features)
- Reduce carbon footprint (99.5% efficiency and power monitoring)
- Digitized (data reporting for energy management)
- Effective motor management
- Reduced downtime (embedded condition monitoring)
- Industry-leading motor control (original Torque Control System (TCS))
Specifications
Assets
- 3D Model Name
- ATS430_S1B_3D_model
Communications & Management Attributes
- Communication Port Protocol
- Modbus serial RJ45, Modbus serial open style (DO, D1, PE, COM), Modbus serial
Conformance Attributes
- Product Certifications
- cULus, CE, UKCA, CCC, RCM, EAC, KC
StandardsEN/IEC 60947-4-2, UL 60947-4-2, IEC 60664-1
Complementary Attributes
- Maximum Horse Power Rating
- 30 hp 208 V normal duty, 40 hp 230 V normal duty, 75 hp 460 V normal duty, 100 hp 575 V normal duty
- Minimum Switching Current
- 100 mA 12 V DC relay outputs
Maximum Switching Currentrelay outputs 2 A / 250 V AC for AC-15 100000 cycles following IEC 60947-5-1, relay outputs 2 A / 30 V DC for DC-13 150000 cycles following IEC 60947-5-1
Integrated Motor Overload Protectiontrue
Important Information Attributes
- Connector Type
- 1 RJ45, open style
- Display Type
- 1 LED green-yellow)status, 1 LED Red)Warning/Error, 1 LED Yellow)COM1, 1 LED Yellow)COM2
- Function Available
- single direction, pre-heating, power monitoring, condition monitoring, user management, ports and services hardening, security event logging, cybersecure firmware update, small motor test
- Motor Power KW
- 30 kW 230 V in line normal duty, 55 kW 400 V in line normal duty, 55 kW 440 V in line normal duty, 75 kW 500 V in line normal duty, 75 kW 525 V in line normal duty
- Transmission Frame
- RTU : 1 RJ45, RTU : open style (DO, D1, PE, COM)
- Utilisation Category
- AC-3A, AC-53A
- Ue Rated Operational Voltage2
- 208 V 30 hp normal duty, 230 V 30 kW normal duty, 230 V 40 hp normal duty, 400 V 55 kW normal duty, 440 V 55 kW normal duty, 460 V 75 hp normal duty, 500 V 75 kW normal duty, 525 V 75 kW normal duty, 575 V 100 hp normal duty, 208...600 V AC - 15...10 %)
- Maximum Acceleration Under Vibratory Load During Storage2
- 1 gn at 9…200 Hz, 1.5 gn at 200…500 Hz
- Carbon Footprint Of The Distribution Phase A4
- 1.480987434717716, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 1 kg CO2 eq., 1.073119681325051
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 2 693 kg CO2 eq., 2692.825142464157
- Maximum Acceleration Under Vibratory Load During Storage3
- 1 gn at 9…200 Hz, 1.5 gn at 200…500 Hz
- Uc Control Circuit Voltage5
- 24 V DC, 110...230 V AC 50-60 Hz - 15...10 %
- Local Data Status
- Publishable
- Pre Comm Date
- 2025-03-26
- Device Type
- Soft starter - Soft starter
- Traceability
- Yes
- Average Life Duration
- 10 year(s)
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2301005EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Device Short Name
- ATS430
- Network Frequency
- 50-60 Hz
- Operating Position
- vertical +/- 10 degree
- Phase
- 3 phase
- Power Loss Static Current Independent
- 19 W
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- soft starter
- Range Of Product
- Altivar Soft Starter ATS430
- Supply Frequency
- 50...60 Hz - 20...20 %
- Total Lifecycle Carbon Footprint
- 2 874 kg CO2 eq.
- Volume Of Cooling Air
- 31 m3/h
- With Safety Function Safe Programmable Logic
- false
- Ui Rated Insulation Voltage2
- 600 V
- Maximum Acceleration Under Shock Impact During Operation2
- 15 gn at 11 ms
- Maximum Acceleration Under Shock Load During Transport2
- 10 gn at 11 ms
- Maximum Deflection Under Vibratory Load During Operation2
- 1.5 mm at 2...13 Hz
- Maximum Deflection Under Vibratory Load During Transport2
- 1.75 mm at 2...9 Hz
- With Safety Function Safe Direction Sdi2
- false
- With Safety Function Safe Position Sp2
- false
- With Safety Function Safe Stop 1 SS1
- false
- With Safety Function Safely Limited Position Slp2
- false
- With Sft Fct Safe Stop 2 Ss
- false
- Stocking Flag
- N
- Maximum Acceleration Under Shock Impact During Operation3
- 15 gn at 11 ms
- Maximum Acceleration Under Shock Load During Transport3
- 10 gn at 11 ms
- Maximum Deflection Under Vibratory Load During Operation3
- 1.5 mm at 2...13 Hz
- Maximum Deflection Under Vibratory Load During Transport3
- 1.75 mm at 2...9 Hz
- With Safety Function Safe Direction Sdi3
- false
- With Safety Function Safe Position Sp3
- false
- With Safety Function Safe Torque Off Sto3
- false
- With Safety Function Safely Limited Speed Sls3
- false
- Pep Code
- ENVPEP2301005EN
- Pep Verification Date
- 2024-05-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- referent product
- Functional Unit Unit
- Unit
- Energy Model Installation A5 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Display Screen Available
- true
- Material Declaration
- true
- Operating Rate
- 10 cyc/h
- Voltage Ramp
- true
- Torque Control
- true
- In Rated Current Pwr Loss Specifctn3
- 110 A
- With Safety Function Safe Stop 1 Ss1 5
- false
Data Format8 bits, odd, even or no parity, 1 or 2 bits to stop for Modbus serial RJ45, 8 bits, configurable odd, even or no parity for Modbus serial open style (DO, D1, PE, COM)
Electromagnetic Compatibilityconducted and radiated emissions level A conforming to IEC 60947-4-2, electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, immunity to electrical transients level 4 conforming to IEC 61000-4-4, voltage/current impulse level 3 conforming to IEC 61000-4-5, damped oscillating waves level 3 conforming to IEC 61000-4-18, immunity to conducted disturbances radio-frequency level 3 conforming to IEC 61000-4-6
MarkingcULus, CE, UKCA, CCC, RCM, EAC, KC

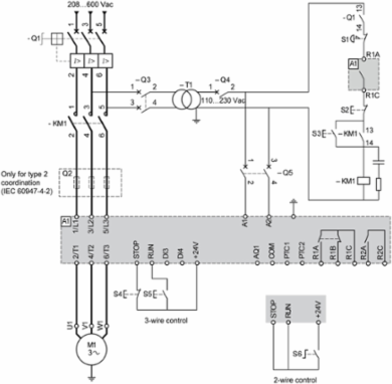

Protection Typephase failure mains, thermal protection mains, thermal protection starter, current overload motor, motor underload motor, excessive acceleration time motor, motor phase loss detection motor, protection against line phase inversion mains, external thermal protection motor, short-circuit between motor phase and earth motor
Transmission Rate4.8…38.4 kbps for Modbus serial RJ45, 0.3...115.2 kbps for Modbus serial open style (DO, D1, PE, COM)
Uc Control Circuit Voltage224 V DC, 110...230 V AC 50-60 Hz - 15...10 %
Environmental Class During Operation2class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
Maximum Acceleration Under Vibratory Load During Transport21 gn at 9…200 Hz, 1.5 gn at 200…500 Hz
Carbon Footprint Of The End Of Life Phase C1 To C414.0049784175406, 14 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3164 kg CO2 eq., 164.3886546978562
Environmental Class During Operation3class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
Maximum Acceleration Under Vibratory Load During Transport31 gn at 9…200 Hz, 1.5 gn at 200…500 Hz
Ue Rated Operational Voltage5208...600 V AC - 15...10 %), 208 V 30 hp normal duty, 230 V 30 kW normal duty, 230 V 40 hp normal duty, 400 V 55 kW normal duty, 440 V 55 kW normal duty, 460 V 75 hp normal duty, 500 V 75 kW normal duty, 525 V 75 kW normal duty, 575 V 100 hp normal duty
Local Publishable Date2026-01-12
ManufacturerSchneider Electric
ServiceabilityNo
Field Service DivisionIDIBS
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Apparent Power70 VA
Method Of Accessslave Modbus serial
Number Of Addresses0-247 Modbus serial
Package Weight Lbs7.846 kg
Power Loss Per Device Current Dependent18 W
Power Losses904 W during starting at 40 °C at 400% In
Product Destinationasynchronous motors
Product Specific Applicationstandard industrial machines
ReturnabilityYes
Sustainable PackagingNo
Type Of Polarizationno impedance Modbus serial
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ie Rated Operational Current2normal duty 110 A in line 40 °C)
Uimp Rated Impulse Withstand Voltage26 kV
Maximum Acceleration Under Shock Load During Storage210 gn at 11 ms
Maximum Acceleration Under Vibrational Stress During Operation21 gn at 13…200 Hz
Maximum Deflection Under Vibratory Load During Storage21.75 mm at 2...9 Hz
With Safety Function Safe Brake Management Sbc Sbt2false
With Safety Function Safe Operating Stop Sos2false
With Safety Function Safe Speed Monitor Ssm2false
With Safety Function Safe Torque Off Sto2false
With Safety Function Safely Limited Speed Sls2false
Medium DescSoft starter, Altivar Soft Starter ATS430, 110A, 208 to 600V AC, control supply 110 to 230V AC
Product Kit IdentifierN
Maximum Acceleration Under Shock Load During Storage310 gn at 11 ms
Maximum Acceleration Under Vibrational Stress During Operation31 gn at 13…200 Hz
Maximum Deflection Under Vibratory Load During Storage31.75 mm at 2...9 Hz
With Safety Function Safe Brake Management Sbc Sbt3false
With Safety Function Safe Operating Stop Sos3false
With Safety Function Safe Speed Monitor Ssm3false
With Safety Function Safely Limited Position Slp3false
With Sft Fct Safe Stop 2 Ss4false
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionThe aim of soft starter is to drive an asynchronous motor (squirrel cage) by limitation of the current during acceleration phase with a torque control. It’s based on two phases dimmer with silicon controlled rectifier (thyristor). The rating of softstarter is given by nominal current 110A in the case study which lead to drive several power motor depending of power network voltage ie 230V power motor of 30kW and 500V power motor of 75kW. Calculation of the environmental impacts is based on 20 years of product service lifetime. The usage profile taken into account is 50% uptime in use phase and 50% uptime in stand by phase.
Energy Model Manufacturing A1 A3 2Indonesia, ID
Energy Model Use B6 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Device Connectionin line
Internal Bypasstrue
On Load Factor50 %
Overload Current400 % Ie for 13 s
In Rated Current Pwr Loss Specifctn2110 A
Global Commercial StatusCommercialised
Ie Rated Operational Current5normal duty 110 A in line 40 °C)
Environment Attributes Main
- Take Back
- Nej, No
- Ambient Air Transport Temperature
- -40-70 °C, -40-70 °C
- Operating Altitude
- <= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating, > 2000...4800 m with current derating 1 % per 100 m above 2000 m, > 2000...4800 m with current derating 1 % per 100 m above 2000 m, <= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating, > 2000...4800 m with current derating 1 % per 100 m above 2000 m, > 2000...4800 m with current derating 1 % per 100 m above 2000 m
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 2873.7728826955968
- Circularity Profile
- ENVEOLI2301005EN
- IP Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2301005EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-25-40 °C (without derating), -25-40 °C (without derating), -25-40 °C (without derating), -25-40 °C (without derating), 40-60 °C (with current derating of 1 % per °C above 40 °C)
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
ROHS Exemption InformationYes
China ROHS RegulationX
Ambient Air Temperature For Storage-40-70 °C
Environmental DisclosureENVPEP2301005EN
Nema Degree Of Protectionopen type
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % without condensation or dripping water EN/IEC 60068-2-3
Pep Verification Date2024-05-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altivar Soft Starter ATS430
Product Or Component Typesoft starter
Output Attributes
- Analogue Output Type
- current output AQ1 : 0...20 mA/4...20 mA , impedance< 500 Ohm, voltage output AQ1 : 0...10 V , impedance> 470 Ohm
- Analogue Output Number
- 1
- Relay Output Number
- 2
Relay Output Typerelay outputs R1A, R1C NO, relay outputs R1B, R1C NC, relay outputs R2A, R2C NO
Discrete Output Number0
Output Current Drift150-700 %
Input Attributes
- Analogue Input Type
- PTC1 : PTC temperature probe, PTC2 : PTC temperature probe
- Discrete Input Type
- STOP) digital input, 4.4 kOhm, RUN) digital input, 4.4 kOhm, DI3) digital input, 4.4 kOhm, DI4) digital input, 4.4 kOhm
- Analogue Input Number
- 1
Discrete Input Logicdigital input STOP 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input RUN 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input DI3 0...< 5 V <= 2 mA > 11 V, >= 5 mA, digital input DI4 0...< 5 V <= 2 mA > 11 V, >= 5 mA
Input CompatibilitySTOP digital input level 1 PLC EN/IEC 61131-2, RUN digital input level 1 PLC EN/IEC 61131-2, DI3 digital input level 1 PLC EN/IEC 61131-2, DI4 digital input level 1 PLC EN/IEC 61131-2
Discrete Input Number4
Specifications
- Country of Origin
- Philippines, United States

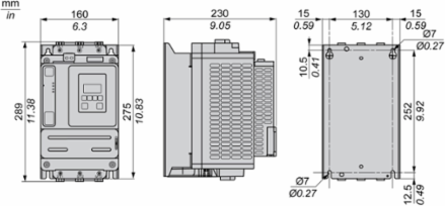

Depth230.2 mm
Batteries & Runtime Attributes
- Removable Battery
- Yes
Downloads
Video
Similar Products
Others Also Viewed
Loading carousel layout...
Loading carousel layout...
CAD$2614.97/ EA
Loading add to cart quantity...
Need assistance finding the right item?
We can help! Connect with our Sales Team Today!
