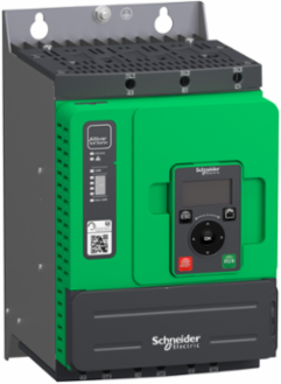

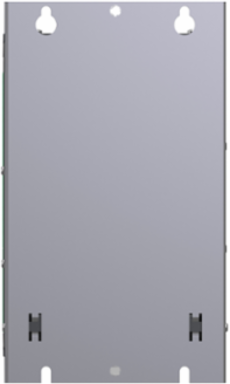

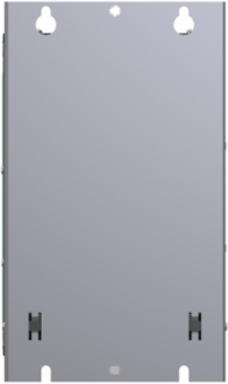

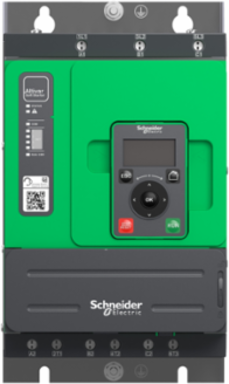

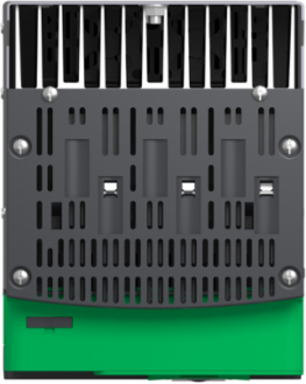

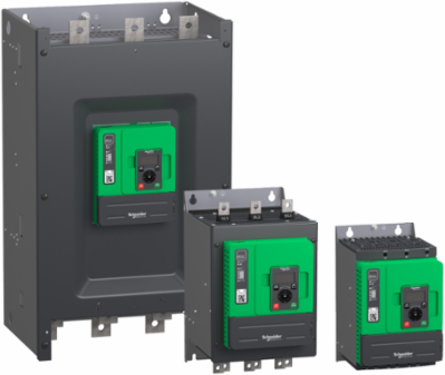

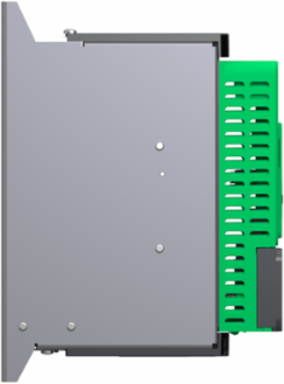

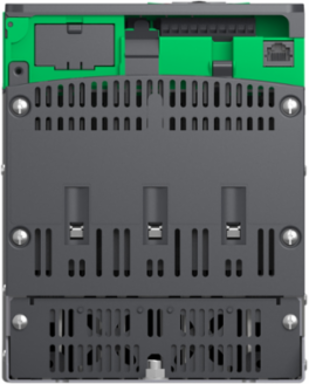

Schneider Electric ATS480D47Y Soft Starter 47A 208-690V AC with Torque Control and Compact Design
- MPN: ATS480D47Y
- PPN: SCH-ATS480D47Y
CAD
$2109.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Soft Starter 47A 208-690V AC with Torque Control and Compact Design
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, Indonesia, United States

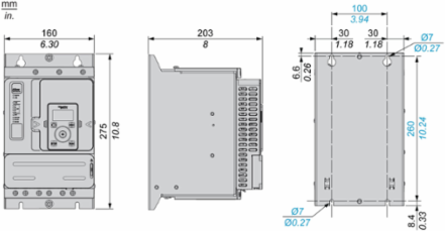

Depth203.0 mm
Communications & Management Attributes
- Communication Data Link
- serial
Communication Port ProtocolModbus serial
Complementary Attributes
- Maximum Horse Power Rating
- 10.0 hp 230 V heavy duty, 30.0 hp 575 V heavy duty10.0 hp 208 V heavy duty, 15.0 hp 230 V normal duty, 30.0 hp 460 V normal duty, 25.0 hp 460 V heavy duty, 40.0 hp 575 V normal duty
- Integrated Motor Overload Protection
- true
- Minimum Switching Current
- 100 mA 12 V DC relay outputs
Maximum Switching Currentrelay outputs 2 A 250 V AC, relay outputs 2 A 30 V DC
Maximum Permanent Current38.0 A at 40 °C heavy duty
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8

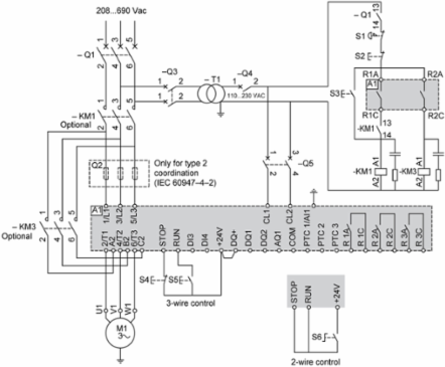

- Device Connection
- in the motor supply line, to the motor delta terminals
- Function Available
- external bypass control, pre-heating, smoke extraction, multi-motor cascade, second motor set, user management, ports and services hardening, security event logging, cybersecure firmware update, single direction
- Motor Power Kw
- 18.5 kW 440 V in the motor supply line heavy duty, 22.0 kW 500 V in the motor supply line heavy duty, 22.0 kW 525 V in the motor supply line heavy duty, 30.0 kW 660 V in the motor supply line heavy duty, 30.0 kW 690 V in the motor supply line heavy duty, 18.5 kW 230 V to the motor delta terminals heavy duty, 30.0 kW 400 V to the motor delta terminals heavy duty11.0 kW 230 V in the motor supply line normal duty, 9.0 kW 230 V in the motor supply line heavy duty, 22.0 kW 400 V in the motor supply line normal duty, 18.5 kW 400 V in the motor supply line heavy duty, 22.0 kW 440 V in the motor supply line normal duty, 30.0 kW 500 V in the motor supply line normal duty, 30.0 kW 525 V in the motor supply line normal duty, 37.0 kW 660 V in the motor supply line normal duty, 37.0 kW 690 V in the motor supply line normal duty, 22.0 kW 230 V to the motor delta terminals normal duty, 45.0 kW 400 V to the motor delta terminals normal duty
- Protection Type
- line supply phase loss motor, thermal protection motorphase failure line, integrated thermal protection motor, thermal protection starter, current overload motor, underload motor, excessive starting time, locked rotor motor, motor phase loss motor, line supply phase loss line
- Certificate Agency
- CE, cULus, CCC, UKCA, RCM, EAC, DNV, ABS, BV, CCS
- [Ue] Rated Operational Voltage
- 440 V 18.5 kW in the motor supply line heavy duty, 500 V 22.0 kW in the motor supply line heavy duty, 525 V 22.0 kW in the motor supply line heavy duty, 660 V 30.0 kW in the motor supply line heavy duty, 690 V 30.0 kW in the motor supply line heavy duty, 230 V 10.0 hp heavy duty, 575 V 30.0 hp heavy duty230 V 11.0 kW in the motor supply line normal duty, 230 V 9.0 kW in the motor supply line heavy duty, 400 V 22.0 kW in the motor supply line normal duty, 400 V 18.5 kW in the motor supply line heavy duty, 440 V 22.0 kW in the motor supply line normal duty, 500 V 30.0 kW in the motor supply line normal duty, 525 V 30.0 kW in the motor supply line normal duty, 660 V 37.0 kW in the motor supply line normal duty, 690 V 37.0 kW in the motor supply line normal duty, 208 V 10.0 hp heavy duty, 230 V 15.0 hp normal duty, 460 V 30.0 hp normal duty, 460 V 25.0 hp heavy duty, 575 V 40.0 hp normal duty
- Maximum Acceleration Under Vibratory Load (During Storage)
- 15 m/s² at 200...500 Hz, 10 m/s² at 9...200 Hz
- Carbon Footprint Of The Distribution Phase [A4]
- 0.80278, 0.8 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.054757
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 3 887 kg CO2 eq., 3886.8
- Local Publishable Date
- 2026-01-12
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Manufacturing Carbon Footprint
- 157.01
- End Of Life Carbon Footprint
- 1.5524
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2009019EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2149
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Connector Type
- 1 RJ45
- Device Short Name
- ATS480
- Method Of Access
- slave Modbus serial
- Noise Level
- 52.0 dB
- Operating Position
- vertical +/- 10 degree
- Power Loss Per Device Current Dependent
- 122.0 W
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- soft starter
- Range Of Product
- Altivar Soft Starter ATS480
- Software Version
- EIME v5.9.1
- Sustainable Packaging
- No
- Transmission Frame
- RTU
- Type Of Polarization
- no impedance Modbus serial
- Volume Of Cooling Air
- 28.0 m3/h
- With Safety Function Safe Programmable Logic
- false
- Pep Code
- ENVPEP2009019EN
- Pep Verification Date
- 2021-11-01
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- The aim of soft starter is to drive an asynchronous motor (squirrel cage) by limitation of the current during acceleration and deceleration phase with a torque control. It’s based on three phases dimmer with Silicon controlled rectifier (thyristor). The rating of softstarter is given by nominal current 47 A in the case study which lead to drive several power motor depending of power network voltage ie 230V power motor of 11kW and 690V power motor of 37kW. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 45% uptime in use phase, 45% uptime in stand by phase and 10% uptime in off phase.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 6583.14
- Energy Model - Installation [A5]
- Electricity Mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; AC; < 1kV; EU-27
- Height Nominal
- 275.0 mm
- [Ie] Rated Operational Current
- normal duty 47.0 A 40 °C)
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Maximum Acceleration Under Shock Impact (During Operation)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Shock Load (During Transport)
- 100 m/s² at 11 ms
- Maximum Deflection Under Vibratory Load (During Operation)
- 1.5 mm at 2...13 Hz
- Maximum Deflection Under Vibratory Load (During Transport)
- 1.75 mm at 2...9 Hz
- With Safety Function Safe Direction (Sdi)
- false
- With Safety Function Safe Position (Sp)
- false
- With Safety Function Safe Stop 1 (Ss1)
- false
- With Safety Function Safely Limited Position (Slp)
- false
- With Sft Fct Safe Stop 2 (Ss2)
- false
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Acidification Of Soil And Water (Kg.Equivalent.So2) Total Life Cycle
- 29.834
- Air Pollution (M3) Total Life Cycle
- 182820
- Air Pollution (M3) Distribution [A4]
- 34.149
- Air Pollution (M3) Operational Energy Use [B6]
- 166690
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
- 41772
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
- 11.278
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 7.2846
- Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]
- 157.01
- Global Warming (Kg.Equivalent.Co2) End Of Life [C1-c4]
- 1.5524
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 531.11
- Materials For Recycling (Kg) Total Life Cycle
- 5.2154
- Net Use Of Fresh Water (M3) Total Life Cycle
- 13.095
- Net Use Of Fresh Water (M3) Operational Energy Use [B6]
- 10.138
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 75.491
- Photochemical Ozone Formation (Kg.Equivalent.C2h4) Total Life Cycle
- 1.4222
- Radioactive Waste Disposed Of (Kg) Total Life Cycle
- 11.902
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
- 75438
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]
- 11.336
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]
- 9.0666
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 2395.1
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 78744
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
- 5721.5
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 5634.4
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 34.47
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 2273.5
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 73109
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 12.84
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 5708.7
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 5634.4
- Water Eutrophication (Kg.Equivalent.P04 3-) Operational Energy Use [B6]
- 1.1018
- Water Pollution (M3) Manufacturing [A1-a3]
- 12675
- Water Pollution (M3) Installation [A5]
- 7.8753
- Water Pollution (M3) End Of Life [C1-c4]
- 142.17
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Compatibilityconducted and radiated emissions level A conforming to IEC 60947-4-2, conducted and radiated emissions with bypass level B conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12, electrostatic discharge level 3 conforming to IEC 61000-4-11, immunity to electrical transients level 4 conforming to IEC 61000-4-4, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, voltage/current impulse level 3 conforming to IEC 61000-4-5
MarkingCE, CCC, UKCA, EAC, RCM, cULus
Option Cardcommunication module Profibus DP V1, communication module Modbus TCP/EtherNet/IP, communication module CANopen daisy chain, communication module CANopen Sub-D, communication module CANopen open style, communication module PROFINET
Utilisation CategoryAC-3A, AC-53A
[Uc] Control Circuit Voltage24 V DC, 110...230 V AC 50/60 Hz - 15...10 %
Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
Maximum Acceleration Under Vibratory Load (During Transport)15 m/s² at 200...500 Hz, 10 m/s² at 9...200 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.5524, 2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]157 kg CO2 eq., 157.01
Local Data StatusPublishable
Pre Comm Date2021-09-15
Stocking FlagN
Device TypeSoft starter - Soft starter
TraceabilityYes
Average Life Duration10 year(s)
Use Carbon Footprint3886.8
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier1
Function OptionStandard
Market SegmentationIndustrial
Apparent Power0.09 kVA
Data Format8 bits, configurable odd, even or no parity
Display Screen Availabletrue
Network Frequency50/60 Hz
Number Of Addresses0-227 Modbus serial
Phase3 phase
Power Loss Static Current Independent25.0 W
Product Destinationasynchronous motors
Product Specific Applicationprocess and infrastructures
ReturnabilityYes
Supply Frequency50...60 Hz - 20...20 %
Total Lifecycle Carbon Footprint4 046 kg CO2 eq.
Transmission Rate1200...256000 bit/s
UpdatabilityUpgradeable through digital modules
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Torque Controltrue
Database Version2020-12
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity Mix; AC; < 1kV; EU-27
Recyclability Potential, In %75
Width Nominal160.0 mm
[Ui] Rated Insulation Voltage690 V
[Us] Rated Supply Voltage208...690 V - 15...10 %
Maximum Acceleration Under Shock Load (During Storage)100 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load (During Storage)1.75 mm at 2...9 Hz
With Safety Function Safe Brake Management (Sbc/Sbt)false
With Safety Function Safe Operating Stop (Sos)false
With Safety Function Safe Speed Monitor (Ssm)false
With Safety Function Safe Torque Off (Sto)false
With Safety Function Safely Limited Speed (Sls)false
Carbon Footprint (Kg Co2 Eq, Total Life Cycle)4046.2
Package Weight(Lbs)6.270 kg
Warranty (In Months)18
Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]29.393
Air Pollution (M3) Manufacturing [A1-a3]16023
Air Pollution (M3) Installation [A5]3.3153
Air Pollution (M3) End Of Life [C1-c4]64.245
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]1714.5
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]40039
Global Warming (Kg.Equivalent.Co2) Total Life Cycle4046.2
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]3886.8
Hazardous Waste Disposed Of (Kg) Total Life Cycle538.61
Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]7.5017
Materials For Recycling (Kg) End Of Life [C1-c4]4.0741
Net Use Of Fresh Water (M3) Manufacturing [A1-a3]2.9554
Non-hazardous Waste Disposed Of (Kg) Total Life Cycle14615
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]14539
Photochemical Ozone Formation (Kg.Equivalent.C2h4) Operational Energy Use [B6]1.3892
Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]11.851
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]2308
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]73109
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle81160
Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]11.351
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]9.076
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]87.089
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle34.47
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle75404
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]11.336
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]9.0666
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]12.84
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]74.248
Water Eutrophication (Kg.Equivalent.P04 3-) Total Life Cycle1.2016
Water Pollution (M3) Total Life Cycle176050
Water Pollution (M3) Distribution [A4]132.01
Water Pollution (M3) Operational Energy Use [B6]163090
[In] Rated Current Pwr Loss Specifctn247.0 A
Environment Attributes Main
- Ambient Air Temperature For Operation
- -15-40 °C (without derating), -15-40 °C (without derating)40-60 °C (with current derating of 2 % per °C), -15-40 °C (without derating), -15-40 °C (without derating)
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2009019EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2009019EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint4046.2
Environmental DisclosureENVPEP2009019EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticNo
Relative Humidity0-95 % without condensation or dripping water IEC 60068-2-3
Pep Verification Date2021-11-01
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altivar Soft Starter ATS480
Product Or Component Typesoft starter
ETIM
- ETIM 8
- EC000640
ETIM 9EC000640
Output Attributes
- Discrete Output Type
- DQ1) programmable digital output <= 30 V, DQ2) programmable digital output <= 30 V
- Analogue Output Number
- 1
- Discrete Output Number
- 2
- Output Current Drift
- 150-700 %
Relay Output Typerelay outputs R1A 1 NO, relay outputs R1B 1 NO, relay outputs RIC NO/NC programmable
Analogue Output Typecurrent output AQ1 0...20 mA or 0...10 V 500 Ohm
Output Compatibilityopen collector level 1 PLC IEC 65A-68
Relay Output Number3
Input Attributes
- Analogue Input Type
- AI1/PTC PTC/Pt 100 temperature probe, PTC2 PTC/Pt 100 temperature probe, PTC3 PTC/Pt 100 temperature probe
- Input Compatibility
- STOP discrete input level 1 PLC IEC 61131-2, RUN discrete input level 1 PLC IEC 61131-2, DI3 discrete input level 1 PLC IEC 61131-2, DI4 discrete input level 1 PLC IEC 61131-2
- Discrete Input Logic
- programmable digital input < 5 V
Discrete Input TypeSTOP) logic inputs, 3500 Ohm, RUN) logic inputs, 3500 Ohm, DI3) programmable as logic input, 3500 Ohm, DI4) programmable as logic input, 3500 Ohm
Analogue Input Number1
Discrete Input Number4
Batteries & Runtime Attributes
- Removable Battery
- Yes
Loading video…
Accessories
Loading carousel layout...
Loading carousel layout...
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$2109.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
CAD$2109.62/ EA
Loading add to cart quantity...
