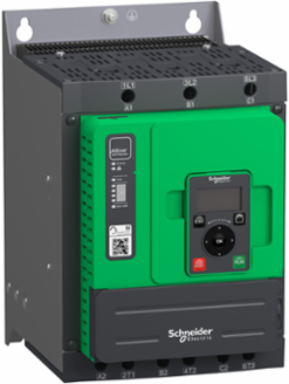

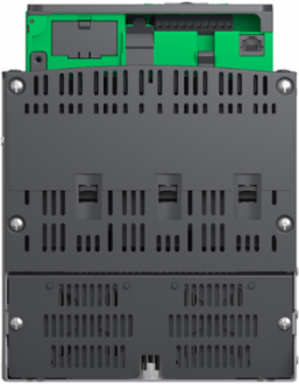

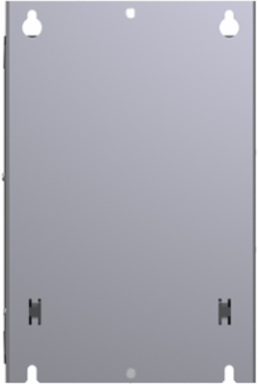

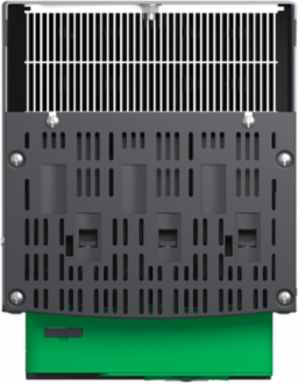

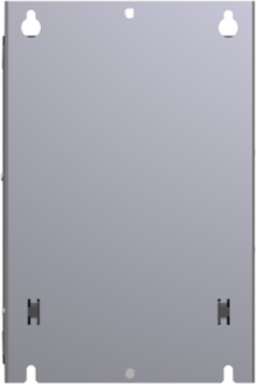

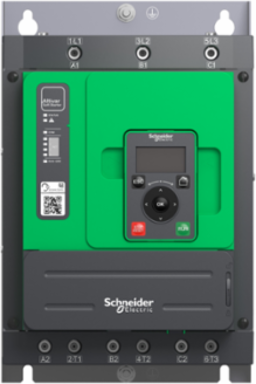

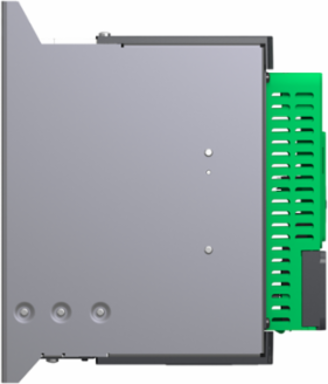

Schneider Electric ATS480D75Y Altivar Soft Starter 75A 208-690V AC with Torque Control and Green Premium

MPN: ATS480D75Y
PPN: SCH-ATS480D75Y
UNSPSC: 39121521

$2715.86

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 75A in normal duty, it supplies motor from 18,5kW to 55kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 190mm (width) x 247mm (depth) x 290mm (height) and it weighs 8,3kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus… The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems.

Features

Reduced engineering time and cost with ATS480, digitally powered by EcoStruxure
Maximize application availability through reinforced robustness and flexibility
Better protection of your assets with embedded cybersecurity best practices
Extend the service lifetime of ATS48 equipment and preserve your investment
The next evolution for soft starters with connectivity, architectures and firmware updates
Get the best of Schneider Electric expertise in Motor Management

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia, United States

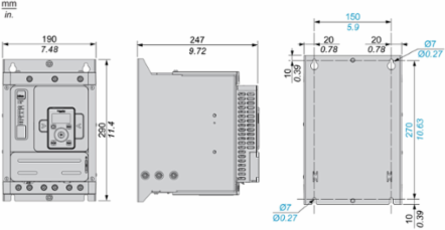

Depth	247.0 mm

Weight	9674 g

Communications & Management Attributes

Communication Data Link	serial

Communication Port Protocol	Modbus serial

Complementary Attributes

Maximum Horse Power Rating	20.0 hp 230 V heavy duty50.0 hp 575 V heavy duty20.0 hp 208 V normal duty15.0 hp 208 V heavy duty25.0 hp 230 V normal duty50.0 hp 460 V normal duty, 40.0 hp 460 V heavy duty60.0 hp 575 V normal duty
Maximum Acceleration Under Vibratory Load During Storage	15 m/s² at 200...500 Hz, 10 m/s² at 9...200 Hz
Integrated Motor Overload Protection	true
Maximum Switching Current	relay outputs 2 A 250 V ACrelay outputs 2 A 30 V DC
Ie Rated Operational Current	normal duty 75.0 A 40 °C)
Ui Rated Insulation Voltage	690 V
Us Rated Supply Voltage	208...690 V - 15...10 %
Maximum Acceleration Under Shock Impact During Operation	150 m/s² at 11 ms
Maximum Acceleration Under Shock Load During Transport	100 m/s² at 11 ms
Maximum Deflection Under Vibratory Load During Operation	1.5 mm at 2...13 Hz
Maximum Deflection Under Vibratory Load During Transport	1.75 mm at 2...9 Hz

Ue Rated Operational Voltage	440 V 30.0 kW in the motor supply line heavy duty500 V 37.0 kW in the motor supply line heavy duty525 V 37.0 kW in the motor supply line heavy duty660 V 45.0 kW in the motor supply line heavy duty690 V 45.0 kW in the motor supply line heavy duty230 V 20.0 hp heavy duty575 V 50.0 hp heavy duty, 230 V 18.5 kW in the motor supply line normal duty230 V 15.0 kW in the motor supply line heavy duty400 V 37.0 kW in the motor supply line normal duty, 400 V 30.0 kW in the motor supply line heavy duty, 440 V 37.0 kW in the motor supply line normal duty500 V 45.0 kW in the motor supply line normal duty, 525 V 45.0 kW in the motor supply line normal duty660 V 55.0 kW in the motor supply line normal duty, 690 V 55.0 kW in the motor supply line normal duty208 V 20.0 hp normal duty, 208 V 15.0 hp heavy duty, 230 V 25.0 hp normal duty460 V 50.0 hp normal duty, 460 V 40.0 hp heavy duty575 V 60.0 hp normal duty
Maximum Acceleration Under Vibratory Load During Transport	15 m/s² at 200...500 Hz, 10 m/s² at 9...200 Hz
Maximum Permanent Current	62.0 A at 40 °C heavy duty
Minimum Switching Current	100 mA 12 V DC relay outputs
Uc Control Circuit Voltage	24 V DC110...230 V AC 50/60 Hz - 15...10 %
Uimp Rated Impulse Withstand Voltage	6 kV
In Rated Current Pwr Loss Specifctn	75.0 A
Maximum Acceleration Under Shock Load During Storage	100 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress During Operation	10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load During Storage	1.75 mm at 2...9 Hz

Important Information Attributes

Persona Type Ids	EU, OM, OM8

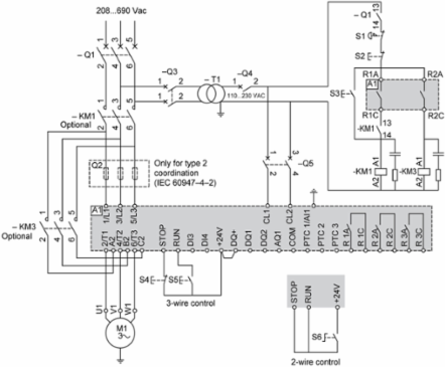

Device Connection	in the motor supply line, to the motor delta terminals
Function Available	external bypass control, pre-heating, smoke extraction, multi-motor cascade, second motor set, user management, ports and services hardening, security event logging, cybersecure firmware update, single direction
Motor Power Kw	30.0 kW 440 V in the motor supply line heavy duty37.0 kW 500 V in the motor supply line heavy duty37.0 kW 525 V in the motor supply line heavy duty45.0 kW 660 V in the motor supply line heavy duty45.0 kW 690 V in the motor supply line heavy duty30.0 kW 230 V to the motor delta terminals heavy duty55.0 kW 400 V to the motor delta terminals normal duty55.0 kW 400 V to the motor delta terminals heavy duty, 18.5 kW 230 V in the motor supply line normal duty15.0 kW 230 V in the motor supply line heavy duty37.0 kW 400 V in the motor supply line normal duty, 30.0 kW 400 V in the motor supply line heavy duty, 37.0 kW 440 V in the motor supply line normal duty45.0 kW 500 V in the motor supply line normal duty, 45.0 kW 525 V in the motor supply line normal duty55.0 kW 660 V in the motor supply line normal duty, 55.0 kW 690 V in the motor supply line normal duty, 37.0 kW 230 V to the motor delta terminals normal duty
Protection Type	line supply phase loss motorthermal protection motor, phase failure lineintegrated thermal protection motorthermal protection starter, current overload motor, underload motor, excessive starting time, locked rotor motor, motor phase loss motor, line supply phase loss line
Certificate Agency	CE, cULus, CCC, UKCA, RCM, EAC, DNV, ABS, BV, CCS
Carbon Footprint Of The End Of Life Phase C1 To C4	12.121451775661422, 12 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	154 kg CO2 eq., 153.6744704454222
Local Data Status	Publishable
Pre Comm Date	2021-09-15
Device Type	Soft starter - Soft starter
Traceability	Yes
Average Life Duration	10 year(s)
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2009021EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2149
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Connector Type	1 RJ45
Device Short Name	ATS480
Method Of Access	slave Modbus serial
Noise Level	58.0 dB
Operating Position	vertical +/- 10 degree
Power Loss Per Device Current Dependent	225.0 W
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	soft starter
Range Of Product	Altivar Soft Starter ATS480
Software Version	v6.2.5-6
Sustainable Packaging	No
Transmission Frame	RTU
Type Of Polarization	no impedance Modbus serial
Volume Of Cooling Air	86.0 m3/h
With Safety Function Safe Programmable Logic	false
Database Version	2024-01
Height Nominal	290.0 mm
Nbr. Of Units In Pkg.	1
With Safety Function Safe Brake Management Sbc/Sbt	false
With Safety Function Safe Operating Stop Sos	false
With Safety Function Safe Speed Monitor Ssm	false
With Safety Function Safe Torque Off Sto	false
With Safety Function Safely Limited Speed Sls	false
Warranty In Months	18
Functional Unit Description	The aim of soft starter is to drive an asynchronous motor (squirrel cage) by limitation of the current during acceleration and deceleration phase with a torque control. It’s based on three phases dimmer with Silicon controlled rectifier (thyristor). The rating of softstarter is given by nominal current 110A in the case study which lead to drive several power motor depending of power network voltage ie 230V power motor of 30kW and 690V power motor of 90kW. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 6,39% uptime in active phase, 50% uptime in stand by phase and 43,61% in control phase.
Functional Unit Unit	unit
Recyclability Potential In %	87

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Compatibility	conducted and radiated emissions level A conforming to IEC 60947-4-2conducted and radiated emissions with bypass level B conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12electrostatic discharge level 3 conforming to IEC 61000-4-11, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3voltage/current impulse level 3 conforming to IEC 61000-4-5
Marking	CE, CCC, UKCA, EAC, RCM, cULus
Option Card	communication module Profibus DP V1, communication module Modbus TCP/EtherNet/IP, communication module CANopen daisy chain, communication module CANopen Sub-D, communication module CANopen open style, communication module PROFINET
Utilisation Category	AC-3A, AC-53A
Carbon Footprint Of The Distribution Phase A4	1.7740036631452138, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	2 kg CO2 eq., 2.1651740038499745
Carbon Footprint Of The Use Phase B2 B3 B4 B6	6 289 kg CO2 eq., 6289.451998672348
Local Publishable Date	2026-01-12
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Dangerous Goods Code	LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Apparent Power	0.09 kVA
Data Format	8 bits, configurable odd, even or no parity
Display Screen Available	true
Network Frequency	50/60 Hz
Number Of Addresses	0-227 Modbus serial
Phase	3 phase
Power Loss Static Current Independent	25.0 W
Product Destination	asynchronous motors
Product Specific Application	process and infrastructures
Returnability	Yes
Supply Frequency	50...60 Hz - 20...20 %
Total Lifecycle Carbon Footprint	6 459 kg CO2 eq.
Transmission Rate	1200...256000 bit/s
Updatability	Upgradeable through digital modules
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Torque Control	true
Data Source	extrapolated product
Width Nominal	190.0 mm
Customs Code	8537109170
With Safety Function Safe Direction Sdi	false
With Safety Function Safe Position Sp	false
With Safety Function Safe Stop 1 Ss1	false
With Safety Function Safely Limited Position Slp	false
With Sft Fct Safe Stop 2 Ss	false
Packaging Weight In G	1126.5
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-15-40 °C (without derating), -15-40 °C (without derating), 40-60 °C (with current derating of 2 % per °C), -15-40 °C (without derating), -15-40 °C (without derating)
Operating Altitude	<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m
Take Back	No
China Rohs Regulation	X
Carbon Footprint	6459.187098560427
Environmental Disclosure	ENVPEP2009021_V2-EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	No
Relative Humidity	0-95 % without condensation or dripping water IEC 60068-2-3
Pep Verification Date	2026-08-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Environmental Class During Operation	class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2009021EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2009021_V2-EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

General Attributes

Phase	3 phase
Range Of Product	Altivar Soft Starter ATS480

Product Or Component Type	soft starter

ETIM

ETIM 8	EC000640
ETIM 10	EC000640

ETIM 9	EC000640

Output Attributes

Discrete Output Type	DQ1) programmable digital output <= 30 V, DQ2) programmable digital output <= 30 V
Analogue Output Number	1
Discrete Output Number	2
Output Current Drift	150-700 %

Relay Output Type	relay outputs R1A 1 NO, relay outputs R1B 1 NOrelay outputs RIC NO/NC programmable
Analogue Output Type	current output AQ1 0...20 mA or 0...10 V 500 Ohm
Output Compatibility	open collector level 1 PLC IEC 65A-68
Relay Output Number	3

Input Attributes

Analogue Input Type	AI1/PTC PTC/Pt 100 temperature probe, PTC2 PTC/Pt 100 temperature probe, PTC3 PTC/Pt 100 temperature probe
Input Compatibility	STOP discrete input level 1 PLC IEC 61131-2, RUN discrete input level 1 PLC IEC 61131-2, DI3 discrete input level 1 PLC IEC 61131-2, DI4 discrete input level 1 PLC IEC 61131-2
Discrete Input Logic	programmable digital input < 5 V

Discrete Input Type	STOP) logic inputs, 3500 Ohm, RUN) logic inputs, 3500 OhmDI3) programmable as logic input, 3500 Ohm, DI4) programmable as logic input, 3500 Ohm
Analogue Input Number	1
Discrete Input Number	4
