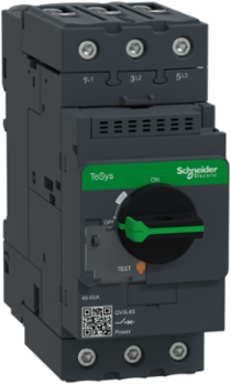

Schneider Electric GV3L65 TeSys GV3 Motor Circuit Breaker, 3P, 65A, Magnetic Protection, Rotary Handle
- MPN: GV3L65
- PPN: SCH-GV3L65
CAD
$562.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys GV motor circuit breaker, 3 poles (3P), 65A/690V, for 3-phase motor applications 30kW@400V. It provides a magnetic protection with a tripping level at 14xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary handle guaranteed for 50 000 cycles AC-3. To complete motor protection, use it in association with a thermal overload relay LRD365 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United Kingdom
Depth136 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Line Rated Current
- 65 A
- Rated Current
- 65 A
Maximum Operating Rate25 cyc/h
Rated Dutyuninterrupted IEC 60947-4-1
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fixing Mode
- 35 mm symmetrical DIN rail clipped, panel screwed with 3 x M4 screws)
- Motor Power Kw
- 30-30 kW 400/415 V AC 50/60 Hz, 37-37 kW 500 V AC 50/60 Hz, 55-55 kW 690 V AC 50/60 Hz
- Range Of Product
- TeSys GV3, TeSys Deca
- Certificate Agency
- CCC, UL, CSA, EAC, LROS (Lloyds register of shipping), BV, ABS, DNV-GL, UKCA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.28544635420228376, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.1069344392964876
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 21 kg CO2 eq., 21.070000000000004
- Local Publishable Date
- 2026-03-11
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI060901
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1929
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- GV3L
- Device Application
- motor protection
- Electrical Durability
- 50000 cycles AC-3 415 V In
- Magnetic Tripping Current
- 910-910 A
- Network Frequency
- 50/60 Hz IEC 60947-2
- Number Of Poles
- 3P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- motor circuit breaker
- Returnability
- No
- Suitability For Isolation
- yes IEC 60947-1
- Tightening Torque
- 5 N.m screw clamp terminal
- Trip Unit Technology
- magnetic
- Rated Current 1
- 65 A
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect during 20 years the installation against overloads and short-circuits in circuit with 690V and 65A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 3P& 10- Rated breaking capacity 6KA
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 315.36
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 132 mm
- [Ith] Conventional Free Air Thermal Current
- 65 A IEC 60947-2
- [Ui] Rated Insulation Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Mechanical Robustnessshocks 15 Gn for 11 ms contactor open, shocks 30 Gn for 11 ms contactor closed, vibrations 4 Gn, 5...300 Hz
Mounting Positionhorizontal, vertical
Utilisation Categorycategory A IEC 60947-2, AC-3 IEC 60947-4-1
[Ics] Rated Service Short-circuit Breaking Capacity100 % 230/240 V AC 50/60 Hz, 100 % 400/415 V AC 50/60 Hz, 100 % 440 V AC 50/60 Hz, 50 % 500 V AC 50/60 Hz, 50 % 690 V AC 50/60 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]2.5759934932242534, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 5.484113459283891
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Service Catalog ItemFinished good
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label3
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typerotary handle
Device Short NameGV3L
Fire Resistance960 °C IEC 60695-2-11
Mechanical Durability50000 cycles
Network TypeAC
Power Dissipation Per Pole8 W
Product NameTeSys GV3
RangeTeSys Deca
Software Versionv5.9.4
Sustainable PackagingYes
Total Lifecycle Carbon Footprint30 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP0609001EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential, In %58
Width Nominal55 mm
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-2
Package Weight(Lbs)1.004 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Climatic Withstand
- IACS E10
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP0609001EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C, -40-80 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint29.52248774600692
Circularity ProfileENVEOLI060901
Environmental DisclosureENVPEP0609001EN
Ip Degree Of ProtectionIP20 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Range Of Product
- TeSys GV3, TeSys Deca
Product Or Component Typemotor circuit breaker
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
