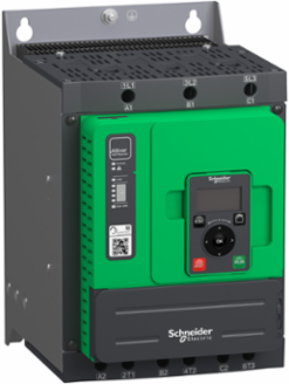

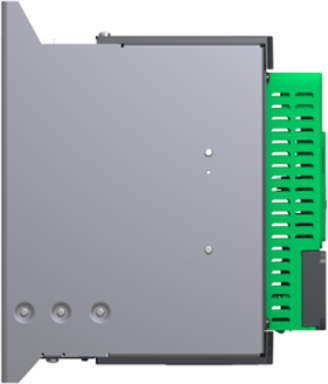

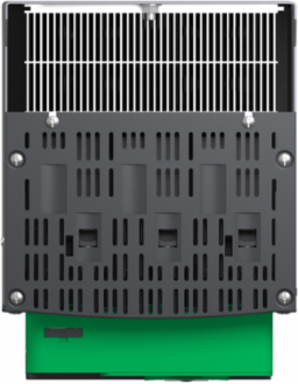

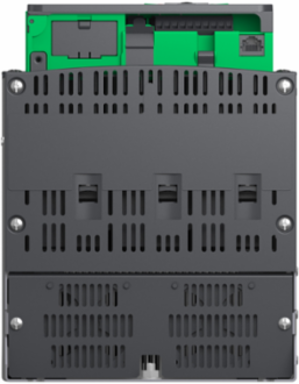

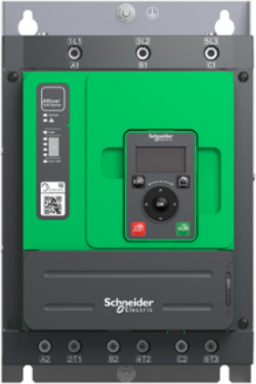

Schneider Electric ATS480D88Y Altivar Soft Starter 88A 208-690V AC, Control Supply 110-230V AC, 8.3kg
- MPN: ATS480D88Y
- PPN: SCH-ATS480D88Y
CAD
$3140.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Altivar Soft Starter 88A 208-690V AC, Control Supply 110-230V AC, 8.3kg
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, United States

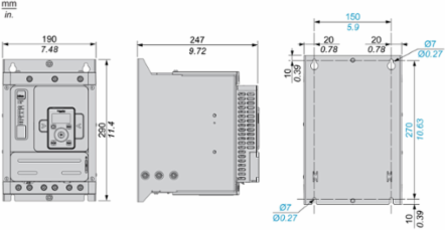

Depth247.0 mm
Communications & Management Attributes
- Communication Data Link
- serial
Communication Port ProtocolModbus serial
Complementary Attributes
- Maximum Horse Power Rating
- 25.0 hp 230 V heavy duty, 60.0 hp 575 V heavy duty25.0 hp 208 V normal duty, 20.0 hp 208 V heavy duty, 30.0 hp 230 V normal duty, 60.0 hp 460 V normal duty, 50.0 hp 460 V heavy duty, 75.0 hp 575 V normal duty
- Integrated Motor Overload Protection
- true
- Minimum Switching Current
- 100 mA 12 V DC relay outputs
Maximum Switching Currentrelay outputsrelay outputs 2 A 250 V AC, relay outputs 2 A 30 V DC
Maximum Permanent Current75.0 A at 40 °C heavy duty
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Device Connection
- in the motor supply line, to the motor delta terminals
- Function Available
- external bypass control, pre-heating, smoke extraction, multi-motor cascade, second motor set, user management, ports and services hardening, security event logging, cybersecure firmware update, single direction
- Motor Power Kw
- 37.0 kW 440 V in the motor supply line heavy duty, 45.0 kW 500 V in the motor supply line heavy duty, 45.0 kW 525 V in the motor supply line heavy duty, 55.0 kW 660 V in the motor supply line heavy duty, 55.0 kW 690 V in the motor supply line heavy duty, 37.0 kW 230 V to the motor delta terminals heavy duty, 75.0 kW 400 V to the motor delta terminals normal duty, 55.0 kW 400 V to the motor delta terminals heavy duty22.0 kW 230 V in the motor supply line normal duty, 18.5 kW 230 V in the motor supply line heavy duty, 45.0 kW 400 V in the motor supply line normal duty, 37.0 kW 400 V in the motor supply line heavy duty, 45.0 kW 440 V in the motor supply line normal duty, 55.0 kW 500 V in the motor supply line normal duty, 55.0 kW 525 V in the motor supply line normal duty, 75.0 kW 660 V in the motor supply line normal duty, 75.0 kW 690 V in the motor supply line normal duty, 45.0 kW 230 V to the motor delta terminals normal duty
- Protection Type
- line supply phase loss motor, thermal protection motorphase failure line, integrated thermal protection motor, thermal protection starter, current overload motor, underload motor, excessive starting time, locked rotor motor, motor phase loss motor, line supply phase loss line
- Certificate Agency
- CE, cULus, CCC, UKCA, RCM, EAC, DNV, ABS, BV, CCS
- [Ue] Rated Operational Voltage
- 440 V 37.0 kW in the motor supply line heavy duty, 500 V 45.0 kW in the motor supply line heavy duty, 525 V 45.0 kW in the motor supply line heavy duty, 660 V 55.0 kW in the motor supply line heavy duty, 690 V 55.0 kW in the motor supply line heavy duty, 230 V 25.0 hp heavy duty, 575 V 60.0 hp heavy duty230 V 22.0 kW in the motor supply line normal duty, 230 V 18.5 kW in the motor supply line heavy duty, 400 V 45.0 kW in the motor supply line normal duty, 400 V 37.0 kW in the motor supply line heavy duty, 440 V 45.0 kW in the motor supply line normal duty, 500 V 55.0 kW in the motor supply line normal duty, 525 V 55.0 kW in the motor supply line normal duty, 660 V 75.0 kW in the motor supply line normal duty, 690 V 75.0 kW in the motor supply line normal duty, 208 V 25.0 hp normal duty, 208 V 20.0 hp heavy duty, 230 V 30.0 hp normal duty, 460 V 60.0 hp normal duty, 460 V 50.0 hp heavy duty, 575 V 75.0 hp normal duty
- Maximum Acceleration Under Vibratory Load (During Storage)
- 15 m/s² at 200...500 Hz, 10 m/s² at 9...200 Hz
- Carbon Footprint Of The Distribution Phase [A4]
- 1.3340594855, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.0756174839
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 7 448 kg CO2 eq., 7447.7272727273
- Local Publishable Date
- 2026-03-26
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Apparent Power
- 0.09 kVA
- Data Format
- 8 bits, configurable odd, even or no parity
- Display Screen Available
- true
- Network Frequency
- 50/60 Hz
- Number Of Addresses
- 0-227 Modbus serial
- Phase
- 3 phase
- Power Loss Static Current Independent
- 25.0 W
- Product Destination
- asynchronous motors
- Product Specific Application
- process and infrastructures
- Returnability
- Yes
- Supply Frequency
- 50...60 Hz - 20...20 %
- Total Lifecycle Carbon Footprint
- 7 626 kg CO2 eq.
- Transmission Rate
- 1200...256000 bit/s
- Updatability
- Upgradeable through digital modules
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Torque Control
- true
- Database Version
- 2020-12
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Indonesia
- Energy Model - Use [B6]
- Electricity Mix; AC; < 1kV; EU-27
- Height Nominal
- 290.0 mm
- [Ie] Rated Operational Current
- normal duty 88.0 A 40 °C)
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Maximum Acceleration Under Shock Impact (During Operation)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Shock Load (During Transport)
- 100 m/s² at 11 ms
- Maximum Deflection Under Vibratory Load (During Operation)
- 1.5 mm at 2...13 Hz
- Maximum Deflection Under Vibratory Load (During Transport)
- 1.75 mm at 2...9 Hz
- With Safety Function Safe Direction (Sdi)
- false
- With Safety Function Safe Position (Sp)
- false
- With Safety Function Safe Stop 1 (Ss1)
- false
- With Safety Function Safely Limited Position (Slp)
- false
- With Sft Fct Safe Stop 2 (Ss2)
- false
- Package Weight(Lbs)
- 9.785 kg
- Warranty (In Months)
- 18
- [In] Rated Current Pwr Loss Specifctn2
- 88.0 A
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Compatibilityconducted and radiated emissions level A conforming to IEC 60947-4-2, conducted and radiated emissions with bypass level B conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12, electrostatic discharge level 3 conforming to IEC 61000-4-11, immunity to electrical transients level 4 conforming to IEC 61000-4-4, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, voltage/current impulse level 3 conforming to IEC 61000-4-5
MarkingCE, CCC, UKCA, EAC, RCM, cULus
Option Cardcommunication module Profibus DP V1, communication module Modbus TCP/EtherNet/IP, communication module CANopen daisy chain, communication module CANopen Sub-D, communication module CANopen open style, communication module PROFINET
Utilisation CategoryAC-3A, AC-53A
[Uc] Control Circuit Voltage24 V DC, 110...230 V AC 50/60 Hz - 15...10 %
Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
Maximum Acceleration Under Vibratory Load (During Transport)15 m/s² at 200...500 Hz, 10 m/s² at 9...200 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.9943358119, 2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]175 kg CO2 eq., 174.975823955
Local Data StatusPublishable
Pre Comm Date2021-09-15
Stocking FlagN
Device TypeSoft starter - Soft starter
TraceabilityYes
Average Life Duration10 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2009021EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2149
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Connector Type1 RJ45
Device Short NameATS480
Method Of Accessslave Modbus serial
Noise Level58.0 dB
Operating Positionvertical +/- 10 degree
Power Loss Per Device Current Dependent270.0 W
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typesoft starter
Range Of ProductAltivar Soft Starter ATS480
Software VersionEIME v5.9.1
Sustainable PackagingNo
Transmission FrameRTU
Type Of Polarizationno impedance Modbus serial
Volume Of Cooling Air86.0 m3/h
With Safety Function Safe Programmable Logicfalse
Pep CodeENVPEP2009021EN
Pep Verification Date2021-11-01
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionThe aim of soft starter is to drive an asynchronous motor (squirrel cage) by limitation of the current during acceleration and deceleration phase with a torque control. It’s based on three phases dimmer with Silicon controlled rectifier (thyristor). The rating of softstarter is given by nominal current 110 A in the case study which lead to drive several power motor depending of power network ie 230V power motor of 30kW and 690V power motor of 90kW. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 45% uptime in use phase, 45% uptime in stand by phase and 10% uptime in off phase.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh12614.4
Energy Model - Installation [A5]Electricity Mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; AC; < 1kV; EU-27
Width Nominal190.0 mm
[Ui] Rated Insulation Voltage690 V
[Us] Rated Supply Voltage208...690 V - 15...10 %
Maximum Acceleration Under Shock Load (During Storage)100 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load (During Storage)1.75 mm at 2...9 Hz
With Safety Function Safe Brake Management (Sbc/Sbt)false
With Safety Function Safe Operating Stop (Sos)false
With Safety Function Safe Speed Monitor (Ssm)false
With Safety Function Safe Torque Off (Sto)false
With Safety Function Safely Limited Speed (Sls)false
Nbr. Of Units In Pkg.1
Take-backNo
Photochemical Ozone Formation (Kg.Equivalent.C2h4) Operational Energy Use [B6]2.662
Environment Attributes Main
- Ambient Air Temperature For Operation
- -15-40 °C (without derating), -15-40 °C (without derating)40-60 °C (with current derating of 2 % per °C), -15-40 °C (without derating), -15-40 °C (without derating)
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m, > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2009021EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2009021EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint7626.1071094636
Environmental DisclosureENVPEP2009021EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticNo
Relative Humidity0-95 % without condensation or dripping water IEC 60068-2-3
Pep Verification Date2021-11-01
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altivar Soft Starter ATS480
Product Or Component Typesoft starter
ETIM
- ETIM 8
- EC000640
ETIM 9EC000640
Output Attributes
- Discrete Output Type
- DQ1) programmable digital output <= 30 V, DQ2) programmable digital output <= 30 V
- Analogue Output Number
- 1
- Discrete Output Number
- 2
- Output Current Drift
- 150-700 %
Relay Output Typerelay outputs R1A 1 NO, relay outputs R1B 1 NO, relay outputs RIC NO/NC programmable
Analogue Output Typecurrent output AQ1 0...20 mA or 0...10 V 500 Ohm
Output Compatibilityopen collector level 1 PLC IEC 65A-68
Relay Output Number3

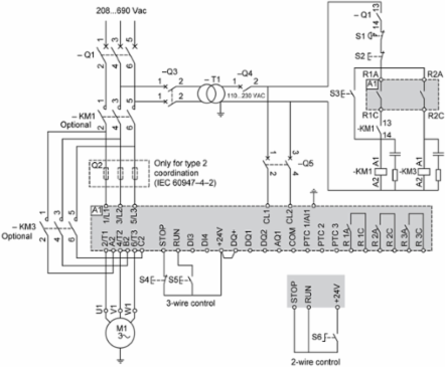

Input Attributes
- Analogue Input Type
- AI1/PTC PTC/Pt 100 temperature probe, PTC2 PTC/Pt 100 temperature probe, PTC3 PTC/Pt 100 temperature probe
- Input Compatibility
- STOP discrete input level 1 PLC IEC 61131-2, RUN discrete input level 1 PLC IEC 61131-2, DI3 discrete input level 1 PLC IEC 61131-2, DI4 discrete input level 1 PLC IEC 61131-2
- Discrete Input Logic
- programmable digital input < 5 V
Discrete Input TypeSTOP) logic inputs, 3500 Ohm, RUN) logic inputs, 3500 Ohm, DI3) programmable as logic input, 3500 Ohm, DI4) programmable as logic input, 3500 Ohm
Analogue Input Number1
Discrete Input Number4
Batteries & Runtime Attributes
- Removable Battery
- Yes
