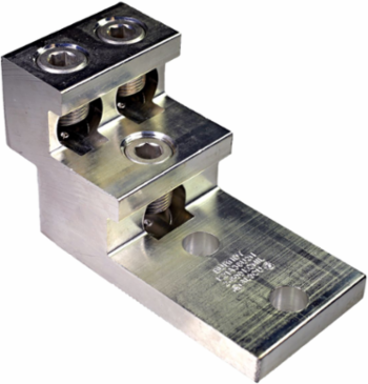

Burndy K21A36U2N Aluminum Universal Terminal 2 Hole 1/2 Inch Stud Holes NEMA-Spaced 600 Volt Rated

MPN: K21A36U2N
UPC: 781810538616
PPN: BUR-30021396

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$156.71/ EA

Qty:

Loading add to cart quantity...

Description

Aluminum Universal Terminal, 2 Hole, 1/2" diameter stud holes spaced 1-3/4" on center (NEMA-spacing), tin plated.

Features

AL9CU Dual Rated for both copper an aluminum conductor
Listed to UL Wire Connector Standard UL486A-486B
1/2" diameter stud holes spaced 1-3/4" on center (NEMA-spacing)
Range Taking conductor port

Specifications

Country of Origin: US

Dimension - Bolt Size fraction: 1/2

Dimension - L Length Overall mm: 0 mm

Dimension - Width mm: 0 mm

Each - Width: 4.800 in

Length: 5.34 in

Plating Type: Tin - Electro Plated

Standards - RoHS Compliance Status: UI

Application: Terminate multiple conductors onto equiment pads, panel boards, or switchgear

Temperature Rating: 194

Certification Agency: Proposition 65

Description - Invoice: (3) 2-600; 2-HOLE NEMA

Harmonization Code: 8535908020

Lead Time: 22 wk

Sub Class Code: B51BGGF

BOX SIZE: 11.000x16.800x10.000 (in)

Carton - Number of Sub Packs: 18

Carton - SCC-14 Next Lower Level Sub Pack: 00781810538616

Case - SCC-14 Next Lower Level Sub Pack: 30781810538617

Package - Total Units: 18 EA

Pallet - GTIN - Package: 70781810538615

Pallet Length: 48.000 in

Pallet Width: 40.000 in

Description - SlangUniversal Terminals

Dimension - Hole Size mm0 mm

Dimension - Thread Size-

Dimensions5.34 in x 2.47 in x 3 in

Height3 in

PlatedY

Product TypeTERMINAL

Width2.47 in

Connector TypeStacked

TypeBolted Lugs & Terminals

Class CodeB51

Freight Class Code16027000

Image Actual Or RepresentativeA

MSDS FlagNo

MaterialAluminum

Carton - Gross Weight per Pack25.800 lb.

Carton - Pack DescriptionCarton

Carton - Total Units18

Package - GTIN - Package30781810538617

Package Quantity18 EA

Pallet Height48.500 in

Pallet Weight1075.000 lb.

Standard Package Quantity1

Certifications

CSA Approved: Yes

ETLNo
