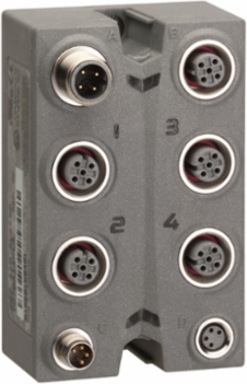

Schneider Electric TM7BAI4TLA Analog I/O Expansion Block, IP67, 4 RTD Inputs, M12 Connector
- MPN: TM7BAI4TLA
- PPN: SCH-TM7BAI4TLA
CAD
$678.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This analog I/O expansion block from Schneider Electric offers a robust solution for industrial automation and control applications. Designed with an IP67 rating, it ensures reliable performance even in challenging environments, making it suitable for various demanding settings. Featuring four RTD inputs equipped with M12 connectors, this expansion block allows for seamless integration and efficient data acquisition. Its thoughtful engineering makes it a vital component for enhancing the versatility and functionality of PLC systems.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 24 V DC
- Analogue Input Number
- 4
- Input Impedance
- 0...3276 Ohm
- Electrical Connection
- M12 - B coding 4 ways bus IN/OUT, M12 - A coding 5 ways sensor, M8 4 ways power IN/OUT
- Ambient Air Temperature for Operation
- -10 to 60 °C (14 to 140 °F)
- Relative Humidity
- 5-95% without condensation or dripping water
- Operating Altitude
- 0 to 2000 m (0 to 6561.68 ft)
- Vibration Resistance
- 7.5 mm 2-8 Hz, 2 gn 8-200 Hz, 4 gn 200-500 Hz IEC 60721-3-5 Class 5M3
- Electrostatic Discharge Resistance
- 6 kV contact, 8 kV air IEC 61000-4-2
- Surge Withstand
- 1 kV power supply (common mode), 0.5 kV (differential mode) IEC 61000-4-5
- Disturbance Radiated/Conducted
- CISPR 11
- Product Certifications
- GOST-R, ATEX II 3g EEx nA II T5, cURus, C-Tick
- Enclosure Material
- Plastic
- Range Compatibility
- Modicon M258, Modicon LMC058
- Mercury Free
- Yes
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1409005EN
- Range Of Product
- Modicon TM7
- Fixing Mode
- By 2 screws
Input/Output Number4
Analogue Input Resolution16 bits
Sensor Power Supply24 V with overload, short-circuit and reverse polarity protection
Bus TypeTM7 bus
Ambient Air Temperature for Storage-25 to 85 °C (-13 to 185 °F)
Pollution Degree2 IEC 60664
Storage Altitude0 to 3000 m (0 to 9842.52 ft)
Shock Resistance30 gn 11 ms IEC 60721-3-5 Class 5M3
Resistance To Fast Transients2 kV power supply, 1 kV input/output, 1 kV shielded cable IEC 61000-4-4
Electromagnetic CompatibilityEN/IEC 61000-4-6
StandardsIEC 61131-2
MarkingCE
Net Weight0.2 kg (0.44 lb)
Pvc FreeYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveProduct out of EU RoHS legal scope
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1409005EN
Operating PositionAny position
Local SignallingBus diagnostic 2 LEDs, sensor/actuator power supply status 2 LEDs
