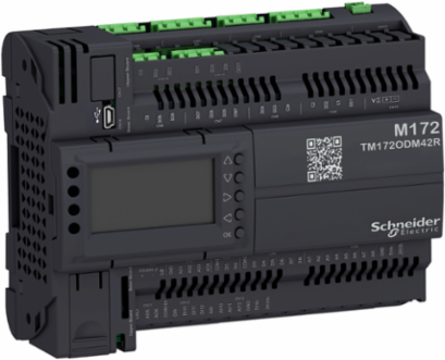

Schneider Electric TM172ODM42R Modicon Controller with 42 I/O, 24V AC/DC, 0.385 kg, 12 Analog Inputs
Schneider Electric TM172ODM42R Modicon Controller with 42 I/O, 24V AC/DC, 0.385 kg, 12 Analog Inputs
- MPN: TM172ODM42R
- PPN: SCH-TM172ODM42R
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$658.05/ EA
Specifications
Specifications
- Analogue Output Number
- 4 voltage 0...10 V || 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)
- Discrete Output Number
- 2 relay outputs SPDT with independent common || 3 relay outputs SPST with same common || 5 relay outputs SPST with same common || 2 relay outputs SPST with independent common
- Product Or Component Type
- programmable controllers
- Discrete Output Current
- 3 A relay SPDT || 3 A relay SPST
- Discrete Input Number
- 12
Range Of ProductModicon M171/M172
Variantprogrammable
Number Of Inputs/Outputs42
Analogue Input Number12 configurable by pair
Product Specific ApplicationHVAC control
Complementary
- Power Consumption In W
- 14 W 24 V AC/DC
- Mounting Support
- panel mounting with accessory || DIN rail
- Display Type
- backlit LCD - 128 x 64 pixels
- Number Of Port
- 1 CAN port - screw terminal block || 1 USB type mini B - USB device port Mini-B || 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP)
- Sensor Power Supply
- 5-5 V DC 50 mA supplied by the controller || 24-24 V DC 150 mA supplied by the controller
- Input Impedance
- 20 kOhm
- Realtime Clock
- built-in clock, clock drift <= 30 s/month at -20-65 °C
- Analogue Input Type
- impedance 0...1500 hOhm 1 hOhm 10 kOhm || impedance 0...300 daOhm 1 daOhm 2 kOhm || NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm || voltage 0...10 V 1 digit > 10 kOhm || NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm extended) || current 0...20 mA/4...20 mA 1 digit < 150 Ohm || PTC temperature probe - 55...150 °C 0.1 °C 2 kOhm || voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric) || Pt 1000 temperature probe - 200...850 °C 0.1 °C 2 kOhm || direct input > 10 kOhm
- Depth
- 60.5 mm
- Discrete Input Logic
- sink or source (positive/negative)
Height110 mm
Discrete Input Voltage24 V AC/DC
Net Weight0.385 kg
[Us] Rated Supply Voltage24 V +/- 10 % AC || 20...38 V DC
Local Signallingprogrammable 1 LED red) || programmable 1 LED yellow) || programmable 1 LED green) || power 1 LED green)
Discrete Input Current2.5 mA
Width144 mm
Overvoltage CategoryII
Input/Output Number12 analog input || 6 analog output || 12 digital input || 12 digital output
Measurement AccuracyNTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C || NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C || NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C || PTC - 55...155 °C +/- 1.1 °C || Pt 1000 - 200...-100 °C +/- 10 °C || Pt 1000 - 100...-50 °C +/- 2.5 °C || Pt 1000 - 50...100 °C +/- 1.5 °C || Pt 1000 100…400 °C +/- 2.4 °C || Pt 1000 400...850 °C +/- 10 °C || 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit || 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit || 4...20 mA +/- 1 % of full scale +/- 1 digit || 0...10 V +/- 1 % of full scale +/- 1 digit || 0...5 V +/- 1 % of full scale +/- 1 digit || hOhm 0...1500 hOhm +/- 8.5 hOhm || daOhm 0...300 daOhm +/- 2.5 daOhm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1709014EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Upgradeability
- Upgradeable through digital modules and upgraded components
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1709014EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- EAC || CE || cURus || CSA || RCM
- Pollution Degree
- 2
- Directives
- 2014/30/EU - electromagnetic compatibility || 2014/35/EU - low voltage directive
- Relative Humidity
- 5-95 % non-condensing
- Operating Altitude
- 0...2000 m
StandardsCAN/CSA-E60730-1 || CSA E60730-2-9 || EN 60068-2-27 || EN 60068-2-6 Fc || EN 60730-1 || EN 60730-2-9 || UL 60730-1 || UL 60730-2-9 || IEC 61000-4-2 || IEC 61000-4-3 || IEC 61000-4-4 || IEC 61000-4-5 || IEC 61000-4-6 || IEC 61000-4-11 || UL94 (material V0)
Ambient Air Temperature For Operation-20-65 °C UL 60730-1 || -20-60 °C horizontal UL 60730-1
Ambient Air Temperature For Storage-30-70 °C
Ip Degree Of ProtectionIP20
