Balluff

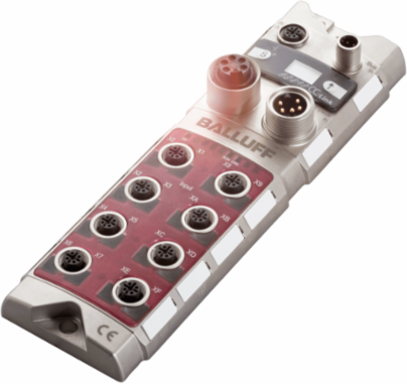

Balluff BNI CCL-104-100-Z001 Network blocks for CC-Link BNI CCL-104-100-Z001

Network blocks for CC-Link BNI CCL-104-100-Z001
  • MPN: BNI CCL-104-100-Z001
  • PPN: BAL-BNI002F

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$537.75/ EA

Description

CC-Link is a standardized fieldbus designed to integrate the most diverse automation components of a wide range of providers. CC-Link is already the principle fieldbus technology used in Asia. The open network is supported by the CC-Link Partner Association CLPA, which is represented globally by over 1000 companies.

Specifications

Specifications

Principle of operation
Active splitter
Operating voltage Ub
18-30.2 VDC
Connection (COM 2)
M12x1-Female, 4-pin, A-coded
Connection (supply voltage OUT)
7/8"-Female, 5-pin
Digital inputs
16x PNP, Type 2
Housing material
Zinc, Die casting
Ambient temperature
-5-55 °C
InterfaceCC-Link V1.1
Connection (COM 1)M12x1-Male, 4-pin, A-coded
Connection (supply voltage IN)7/8"-Male, 5-pin
Connection ports8x M12x1-Female, 5-pin, A-coded
Configurable inputs/outputsno
Dimension68 x 37.9 x 224 mm
IP ratingIP67
