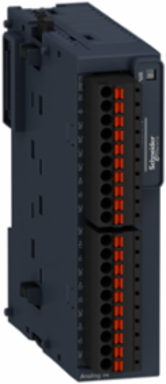

Schneider Electric TM3AI4G Modicon Analog Input Module, 4 Inputs, 24V DC, IP20, 90mm Height
Schneider Electric TM3AI4G Modicon Analog Input Module, 4 Inputs, 24V DC, IP20, 90mm Height
- MPN: TM3AI4G
- PPN: SCH-TM3AI4G
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$349.35/ EA
Description
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 4 inputs with 11bit + sign and 12bit resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 35mA at 5V DC via bus connector no load, 45mA at 5V DC via bus connector full load, 30mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with 3.18mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.1kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Specifications
Complementary
- Electrical Connection
- 10 x 1.5 mm² removable spring terminal block pitch 3.81 mm for inputs and supply || 10 x 1.5 mm² removable spring terminal block pitch 3.81 mm for inputs
- Input Impedance
- <= 50 Ohm current || >= 1 MOhm voltage
- Non-Linearity
- +/- 0.01 %FS
- Permissible Continuous Overload
- 13 V voltage || 40 mA current
- Analogue Input Resolution
- 12 bits || 11 bits + sign
- Absolute Accuracy Error
- +/- 0.1 % of full scale at 25 °C || +/- 1 % of full scale
- Conversion Time
- 1 ms + 1 ms per channel + 1 controller cycle time
- Supply Voltage Limits
- 20.4-28.8 V
- Local Signalling
- PWR 1 LED green)
- Cross Talk
- <= 1 LSB
- Depth
- 70 mm
- Insulation
- between input and supply 1500 V AC || between input and internal logic 500 V AC
- Repeat Accuracy
- +/-0.5 %FS
Height90 mm
Type Of Cabletwisted shielded pairs cable <30 m input
Lsb Value2.44 mV 0...10 V voltage || 4.88 mV - 10...10 V voltage || 4.88 µA 0...20 mA current || 3.91 µA 4...20 mA current
MarkingCE
Net Weight0.1 kg
Current Consumption35 mA 5 V DC via bus connector no load || 45 mA 5 V DC via bus connector full load || 30 mA 24 V DC via external supply
Temperature Drift+/- 0.006 %FS/°C
Mounting Supporttop hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Surge Withstand1 kV power supply common mode IEC 61000-4-5 || 0.5 kV power supply differential mode IEC 61000-4-5 || 1 kV input common mode IEC 61000-4-5
Width23.6 mm
[Us] Rated Supply Voltage24 V DC
Sampling Duration1 ms
Environment
- Product Certifications
- CE || UKCA || RCM || EAC || cULus || cULus HazLoc
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
- Immunity To Microbreaks
- 10 ms
- Storage Altitude
- 0-3000 m
- Shock Resistance
- 15 gn 11 ms
- Vibration Resistance
- 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail
- Relative Humidity
- 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 0...2000 m
Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
StandardsIEC 61131-2
Ambient Air Temperature For Operation-10-55 °C horizontal installation || -10-35 °C vertical installation
Pollution Degree2
Resistance To Magnetic Fields30 A/m IEC 61000-4-8
Ambient Air Temperature For Storage-25-70 °C
Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
Resistance To Fast Transients1 kV IEC 61000-4-4 I/O)
Electromagnetic Emissionradiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Specifications
- Range Of Product
- Modicon TM3
- Analogue Input Number
- 4
- Analogue Input Type
- current 4...20 mA || current 0...20 mA || voltage 0...10 V || voltage - 10...10 V
Product Or Component Typeanalog input module
Range CompatibilityModicon M221 || Modicon M241 || Modicon M251 || Modicon M262
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1402009EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1402009EN
