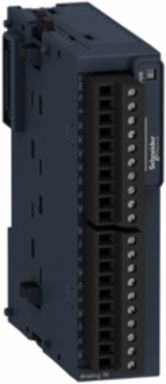

Schneider Electric TM3TI4D Analog Input Module with 4 Thermocouple Inputs, 24V DC, IP20
- MPN: TM3TI4D
- PPN: SCH-TM3TI4D
CAD
$461.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This analog input module from Schneider Electric is engineered to enhance your automation systems with its capability to interface with up to four thermocouple inputs. Operating at 24V DC, it provides reliable and precise temperature monitoring, essential for a wide range of industrial applications. Designed with an IP20 rating, the TM3TI4D module ensures protection against solid objects, making it suitable for use in controlled environments where temperature data is critical for process optimization. With its robust design and compatibility, this module is a crucial component for building efficient and effective control systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Japan, United States
Depth70 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Cross Talk
- <= 1 LSB, <= 1 LSB
- Certificate Agency
- CE, UKCA, RCM, EAC, cULus, cULus HazLoc
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Marking
- CE
- Product Or Component Type
- analog input module
- Returnability
- Yes
- Dc Supply Voltage
- 24-24 V
- Height Nominal
- 90 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Non-linearity+/- 0.2 %FS, +/- 0.2 %FS
Local Publishable Date2026-01-12
Stocking FlagN
Device TypePLC System - PLC Component
TraceabilityYes
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1402009EN
Reach Full Compliance Status IdCONTAINS_SVHC
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Immunity To Microbreaks10 ms
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon TM3
Sustainable PackagingNo
Pep CodeENVPEP1402009EN
Width Nominal23.6 mm
Package Weight(Lbs)220.000 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP1402009EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1402009EN
Recycled Metal Content At Cr Level0 %
Circularity ProfileENVEOLI1402009EN
Eu Rohs DirectiveWill be compliant on
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- analog input module
Range Of ProductModicon TM3
ETIM
- ETIM 8
- EC001596
ETIM 9EC001596
Input Attributes
- Analogue Input Number
- 4
