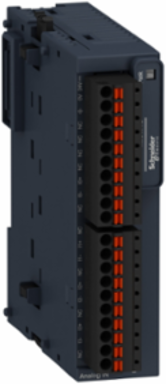

Schneider Electric TM3TI4DG Analog Input Module with 4 Differential Temperature Inputs, 24V DC
- MPN: TM3TI4DG
- PPN: SCH-TM3TI4DG
CAD
$461.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The TM3TI4DG Analog Input Module from Schneider Electric is expertly designed to enhance your automation system with its four differential temperature inputs. Operating at 24V DC, this module offers precise temperature readings, making it an essential component for applications requiring accurate thermal monitoring. Its robust design ensures reliability and efficiency in performance, empowering users to effectively manage and control temperature-sensitive processes. This module seamlessly integrates with Schneider Electric systems, providing the versatility needed in various industrial applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Japan, Taiwan
Depth70 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Cross Talk
- <= 1 LSB, <= 1 LSB
- Mounting Support
- top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
- Certificate Agency
- CE, UKCA, RCM, EAC, cULus, cULus HazLoc
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Conversion Time
- 100 ms + 100 ms per channel + 1 controller cycle time thermocouple
- Front Installation Possible
- false
- Insulation
- between output and supply 1500 V ACbetween output and internal logic 500 V AC
- Lsb Value
- 0.1 °C
- Network Type
- DC
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Radio Standard Bluetooth
- false
- Radio Standard Gsm
- false
- Range Of Product
- Modicon TM3
- Returnability
- No
- Shock Resistance
- 15 gn 11 ms
- Supporting Protocol For Can
- false
- Supporting Protocol For Devicenet Safety
- false
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- false
- Supporting Protocol For Profibus
- false
- Supporting Protocol For Profinet Io
- false
- Supporting Protocol For Safetybus P
- false
- Supporting Protocol For Suconet
- false
- Temperature Drift
- +/- 0.01 %FS/°C+/- 0.01 %FS/°C
- Vibration Resistance
- 3.5 mm 5-8.4 Hz) on DIN rail3 gn 8.4-150 Hz) on DIN rail
- Certified For Ul Hazardous Location Class Ii
- false
- Certified For Ul Hazardous Location Division 1
- false
- Dc Supply Voltage
- 24-24 V
- System Accessory
- false
- Width Nominal
- 23.6 mm
- Appendant Operation Agent (Ex Ib)
- false
- Certified For Ul Hazardous Location Group B (Hydrogen)
- false
- Certified For Ul Hazardous Location Group D (Propane))
- false
- Certified For Ul Hazardous Location Group F (Carbonaceous Dust)
- false
- Io-link Master Present
- false
- Rack-assembly Possible
- false
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Supporting Protocol For Tcp/Ip
- false
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electrical Connectionand supply, 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs
Typical Current Consumption45 mA 5 V DC, 50 mA 5 V DC35 mA 24 V DC, 40 mA 24 V DC
Non-linearity+/- 0.2 %FS, +/- 0.2 %FS
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Bearing Track Assembly Possiblefalse
Electromagnetic Emissionradiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Immunity To Microbreaks10 ms
Local Signalling1 LED green PWR
MarkingCE
Permissible Continuous Overload13 V voltage40 mA current
Product Or Component Typeanalog input module
Radio Standard Gprsfalse
Radio Standard Umtsfalse
Repeat Accuracy+/-0.5 %FS+/-0.5 %FS
Sampling Duration100 ms
Supporting Protocol For Asifalse
Supporting Protocol For Devicenetfalse
Supporting Protocol For Ethercatfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemsfalse
Supporting Protocol For Profinet Cbafalse
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Sustainable PackagingNo
Type Of Cabletwisted shielded pairs cable <30 m input
Certified For Ul Hazardous Location Class Ifalse
Certified For Ul Hazardous Location Class Iiifalse
Certified For Ul Hazardous Location Division 2false
Fieldbus Connection Over Separate Bus Coupler Possiblefalse
Height Nominal90 mm
Appendant Operation Agent (Ex Ia)false
Certified For Ul Hazardous Location Group A (Acetylene)false
Certified For Ul Hazardous Location Group C (Ethylene))false
Certified For Ul Hazardous Location Group E (Metal Dusts)false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)false
Performance Level According To En Iso 13849-1none
Radio Standard Wi-fi 802.11false
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
Wall Mounting/Direct Mounting Possiblefalse
Package Weight(Lbs)200 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation)-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation)
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Under investigation
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 10-95 % without condensation
Take BackNo
Ambient Air Temperature For Storage-25-70 °C-25-70 °C
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- analog input module
Range Of ProductModicon TM3
ETIM
- ETIM 8
- EC001596
ETIM 9EC001596
Input Attributes
- Analogue Input Resolution
- 16 bits, 15 bits + sign
- Analogue Input Number
- 4
Analogue Input Typethermocouple - 200...1000 °C thermocouple Jthermocouple - 200...1300 °C thermocouple Kthermocouple 0...1760 °C thermocouple R, thermocouple 0...1760 °C thermocouple Sthermocouple 0...1820 °C thermocouple Bthermocouple - 200...400 °C thermocouple T, thermocouple - 200...1300 °C thermocouple Nthermocouple - 200...800 °C thermocouple Ethermocouple 0...2315 °C thermocouple C
Input Impedance>= 1 MOhm>= 1 MOhm
