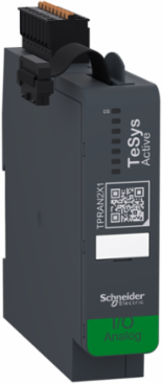

Schneider Electric TPRAN2X1 Analog IO module, TeSys island, 2 inputs, 1 output, 24VDC, Twisted shielded pairs cable

Analog IO module, TeSys island, 2 inputs, 1 output, 24VDC, Twisted shielded pairs cable
  • MPN: TPRAN2X1
  • PPN: SCH-TPRAN2X1

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$406.52/ EA

Description

TeSys island analog IO module, 2 analog inputs, 1 analog output. Connected to a TPRBC bus coupler it is used for advanced control functions (TeSys avatars). Two analog inputs can be configured for measurement of voltage (-10/+10V, 0/+10V), current (0-20mA, 4-20mA) or temperature probes (Ni, Pt, thermocouples). One analog output can be configured for driving voltage source (-10/+10V, 0/+10V) or current source (0-20mA, 4-20mA). Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Specifications

Environment

Ambient Air Temperature For Operation
-10-60 °C
Shock Resistance
15 gn 11 ms) IEC 60068-2-27
Electromagnetic Compatibility
electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 || fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4 || surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5
Ambient Air Temperature For Storage
-25-70 °C
Relative Humidity
5-95 %
Fire Resistance
960 °C UL 94
Ip Degree Of ProtectionIP20
Vibration Resistance1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6 || 1 gn 13-200 Hz) IEC 60068-2-6
Pollution Degree2
Protective TreatmentTC
Operating Altitude0...2000 m without derating

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1904009EN
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Eu Rohs Directive
Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1904009EN
Halogen Content PerformanceHalogen free plastic parts product

Complementary

Mounting Mode
horizontal and vertical 35 mm symmetrical rail)
Height
118 mm
Standards
IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
Power Dissipation In W
0.5 W maximum
Current Consumption
160 mA
[Uimp] Rated Impulse Withstand Voltage
0.5 kV IEC 61010-1
[Us] Rated Supply Voltage24 V DC supplied by the bus coupler
Product CertificationsUL || CSA || EAC (pending)
Connections - Terminalsinput/output circuit removable spring terminal block 8 0.2-2.5 mm² AWG 24...AWG 14)rigid || input/output circuit removable spring terminal block 8 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end || input/output circuit removable spring terminal block 8 0.25-2.5 mm² AWG 22...AWG 14)flexible with cable end
Net Weight0.172 kg
Width25 mm
Depth114 mm

Specifications

Analogue Output Number
1 isolated
Type Of Cable
twisted shielded pairs cable <30 m input/output
Product Or Component Type
analog IO module
Product Name
TeSys island
Device Presentation
IO module providing 2 analog inputs and 1 analog output || enabling advanced control functions in a TeSys island system || operational only when connected to a bus coupler TPRBC
Product Compatibility
TPRBC bus coupler
Analogue Output Resolution
12 bits, 4...20 mA full scale || 12 bits, 0...20 mA full scale || 12 bits, 0...10 V full scale || 11 bits + sign, - 10...10 V full scale
Device Short Name
TPRAN
Analogue Input Type
current 4...20 mA || current 0...20 mA || voltage 0...10 V || voltage - 10...10 V || temperature probe - 60...180 °C Ni 100 || temperature probe - 60...180 °C Ni 1000 || temperature probe -200...+850 °C Pt 100 || temperature probe - 200...600 °C Pt 1000 || thermocouple - 200...1000 °C thermocouple J || thermocouple - 200...1300 °C thermocouple K || thermocouple 0...1760 °C thermocouple R || thermocouple 0...1760 °C thermocouple S || thermocouple 0...1820 °C thermocouple B || thermocouple - 200...400 °C thermocouple T || thermocouple - 200...1300 °C thermocouple N || thermocouple - 200...800 °C thermocouple E || thermocouple 0...2315 °C thermocouple C
Input Impedance<= 50 Ohm current || >= 1 MOhm voltage || >= 1 MOhm thermocouple || >= 1 MOhm temperature probe
Analogue Output Typecurrent 4...20 mA || current 0...20 mA || voltage 0...10 V || voltage - 10...10 V
Analogue Input Resolution15 bits + sign full scale
RangeTeSys
Analogue Input Number2 isolated with common point
Local SignallingDS (device status) 1 LED green/red)
Function Of Modulemeasurement of voltage, current or temperature on 2 configurable analog inputs || driving voltage or current source on 1 configurable analog output
Measurement Accuracy+/- 0.1 % of full scale voltage 25-25 °C || +/- 0.1 % of full scale current 25-25 °C || +/- 0.1 % of full scale temperature probe 25-25 °C || +/- 0.1 % of full scale in positive temperature range thermocouple 25-25 °C || +/- 0.4 % of full scale in negative temperature range thermocouple 25-25 °C
