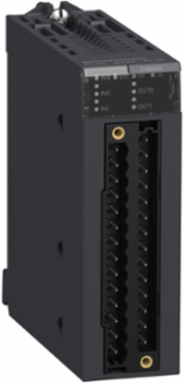

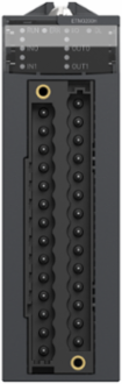

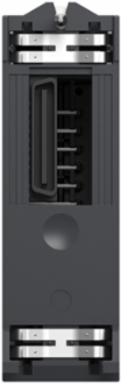

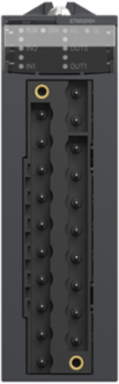

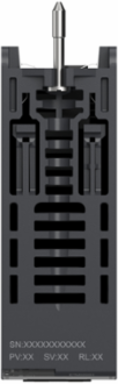

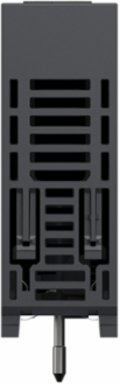

Schneider Electric BMXETM0200H Modicon X80 Frequency Module, 2 Channels, 24V DC, IP20
- MPN: BMXETM0200H
- PPN: SCH-BMXETM0200H
CAD
$1629.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Modicon X80 Frequency Module from Schneider Electric is engineered for superior performance and reliability in industrial automation applications. Featuring two channels, this device operates at 24V DC and is designed to meet IP20 standards, ensuring compatibility within a variety of environments. Its advanced capabilities enable precise frequency measurement and control, making it an essential component for efficient process management and enhanced operational workflows. With Schneider Electric's commitment to quality and innovation, this frequency module stands out as a trusted solution for modern automation needs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Sweden, United States
Complementary Attributes
- Maximum Voltage Drop
- <3 V at state 1, <3 V at state 1<3 V at state 1, <3 V at state 1
- Maximum Load Current
- 1 A per module0.5 A per output
Maximum Leakage Current0.1 mA at state 0
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current Consumption
- <= 200 mA 3.3 V DC bus, <= 200 mA 3.3 V DC bus, <= 200 mA 3.3 V DC bus, <= 200 mA 3.3 V DC bus, <= 30 mA 24 V DC sensor, <= 30 mA 24 V DC sensor, <= 30 mA 24 V DC sensor, <= 30 mA 24 V DC sensor<= 200 mA 3.3 V DC bus, <= 200 mA 3.3 V DC bus, <= 200 mA 3.3 V DC bus, <= 200 mA 3.3 V DC bus, <= 30 mA 24 V DC sensor, <= 30 mA 24 V DC sensor, <= 30 mA 24 V DC sensor
- Isolation Voltage
- 1400 V DC 1 min field/bus or ground1000 V DC 1 min differential interfaces, 1000 V DC 1 min input/output
- Voltage State 1 Guaranteed
- MPU 0.3...100 V AC, APU 2.5...30 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.021576, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.043936, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 56 kg CO2 eq., 56.2860586592
- Local Publishable Date
- 2026-01-23
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2311046EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2438
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Industrial
- Cycle Time
- 1 ms
- Electrical Connection
- connector 28 pins
- Module Format
- standard
- Overlap Time
- 0.2 ms
- Product Destination
- turbo machine
- Protective Treatment
- conformal coating
- Returnability
- No
- Sustainable Packaging
- Yes
- Type Of Measurement
- frequency
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 86.3298
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Output Short-circuit Protection
- 1.5 A integrated
- Package Weight(Lbs)
- 165.000 g
- Warranty (In Months)
- 18
- Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 21.082
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 2.2102
- Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
- 86.541
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
- 44586
- Net Use Of Fresh Water (M3) Manufacturing [A1-a3]
- 0.1361
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 56586
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 249.6
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 258.99
- Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
- -0.5349
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]
- 0.1927
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 27309
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 22102
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 0.1927
- Water Use (M3 Eq) End Of Life [C1-c4]
- 44137
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Environmental Characteristicgas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2
Voltage State 0 Guaranteed< 0.3 V, < 0.3 V
Certificate AgencyCE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.29278
Carbon Footprint Of The Manufacturing Phase [A1 To A3]21 kg CO2 eq., 21.082
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Manufacturing Carbon Footprint21.082
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Device Applicationspeed and frequency control
Function Availablecompare
Number Of Channels2
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typefrequency module
Range Of ProductModicon X80
Software Versionv5.9.4
Total Lifecycle Carbon Footprint78 kg CO2 eq.
Pep CodeENVPEP2311046EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Recyclability Potential In %3
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]21.062
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]249.6
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]267.09
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]101.02
Materials For Recycling (Kg) Installation [A5]0.006
Net Use Of Fresh Water (M3) End Of Life [C1-c4]11553
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-0.1723
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]22102
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]24029
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]93911
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle27309
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]246.87
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]87289
Water Use (M3 Eq) Manufacturing [A1-a3]58454
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Product Compatibility
- M340 PLC, M580 PLC
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2311046EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2311046EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
Take BackNo
China Rohs RegulationX
Carbon Footprint77.7263506592
Environmental DisclosureENVPEP2311046EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Relative Humidity10-95 % without condensation
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- frequency module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001422
ETIM 9EC001422
Output Attributes
- Discrete Output Logic
- positive logic (source)
- Output Overload Protection
- integrated
- Output Voltage
- 24 V DC
Number Of Outputs2
Output Typereflex digital output
Output Voltage Limits19.2...30 V
Input Attributes
- Input Compatibility
- 19.2-30 V incremental encoderactive pick-up sensor, 10...30 V totem pole, magnetic pick-up sensor
- Input Frequency
- 0-500 kHz
- Input Voltage
- 24 V DC100 V AC
Number Of Inputs2-2 MPU), 2-2 APU)
Input Typehigh speed
Input Voltage Limits19.2...30 V at 60 °C26.4 V at 70 °C
