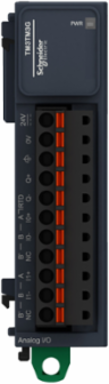

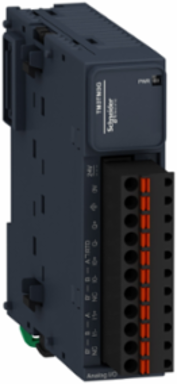

Schneider Electric TM3TM3G Modicon TM3 Analog I/O Module, 2 Inputs, 1 Output, IP20, 24V DC
- MPN: TM3TM3G
- PPN: SCH-TM3TM3G
CAD
$425.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Modicon TM3 Analog I/O Module, 2 Inputs, 1 Output, IP20, 24V DC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, Japan, Taiwan, United States
Depth70 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Cross Talk
- <= 1 LSB, <= 1 LSB
- Lsb Value
- 0.15 mV, 0...10 V0.30 mV, - 10...10 V0.30 µA, 0...20 mA0.244 µA, 4...20 mA, 0.1 °C2.44 mV, 0...10 V4.88 mV, - 10...10 V4.88 µA, 0...20 mA3.91 µA, 4...20 mA
- Repeat Accuracy
- +/-0.5 %FS input, +/-0.5 %FS input+/-0.5 %FS input, +/-0.5 %FS input
- Certificate Agency
- CE, UKCA, RCM, EAC, cULus, cULus HazLoc
- Carbon Footprint Of The Distribution Phase [A4]
- 0.04467647430585781, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.005268691234095478
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 84 kg CO2 eq., 84.24018131089299
- Local Publishable Date
- 2025-11-29
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1402009EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Bearing Track Assembly Possible
- false
- Electrical Connection
- 11 x 2.5 mm² removable spring terminal block with pitch 5.08 mm adjustment for inputs, outputs and supply
- Front Installation Possible
- false
- Load Impedance Ohmic
- 1 kOhm voltage300 Ohm current
- Local Signalling
- 1 LED green PWR
- Network Type
- DC
- Product Availability
- Stock - Normally stocked in distribution facility
- Radio Standard Bluetooth
- false
- Radio Standard Gsm
- false
- Range Of Product
- Modicon TM3
- Sampling Duration
- 10 ms
- Software Version
- v6.1
- Supporting Protocol For Asi
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Ethercat
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 98 kg CO2 eq.
- Vibration Resistance
- 3.5 mm 5-8.4 Hz) on DIN rail3 gn 8.4-150 Hz) on DIN rail
- Certified For Ul Hazardous Location Class I
- false
- Certified For Ul Hazardous Location Class Iii
- false
- Certified For Ul Hazardous Location Division 2
- false
- Fieldbus Connection Over Separate Bus Coupler Possible
- false
- Pep Code
- ENVPEP1402009EN
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; China, CN
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; China, CN
- Height Nominal
- 90 mm
- Appendant Operation Agent (Ex Ia)
- false
- Certified For Ul Hazardous Location Group A (Acetylene)
- false
- Certified For Ul Hazardous Location Group C (Ethylene))
- false
- Certified For Ul Hazardous Location Group E (Metal Dusts)
- false
- Certified For Ul Hazardous Location Group G (Non Conductive Dust)
- false
- Performance Level According To En Iso 13849-1
- none
- Radio Standard Wi-fi 802.11
- false
- Supporting Protocol For Data-highway
- false
- Supporting Protocol For Interbus-safety
- false
- Wall Mounting/Direct Mounting Possible
- false
- Package Weight(Lbs)
- 200 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Insulationbetween input and supply 1500 V ACbetween input and internal logic 500 V AC, between output and supply 1500 V AC, between output and internal logic 500 V AC
Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Typical Current Consumption55 mA 24 V DC no load, 55 mA 5 V DC no load60 mA 5 V DC full load, 80 mA 24 V DC full load
Non-linearity+/- 0.01 %FS analog output, +/- 0.01 %FS analog output, +/- 0.1 %FS analog input, +/- 0.1 %FS analog input, +/- 0.01 %FS analog output, +/- 0.01 %FS analog output, +/- 0.1 %FS analog input, +/- 0.1 %FS analog input
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4783742797729333, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]13 kg CO2 eq., 12.926781354982458
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Conversion Time100 ms + 100 ms per channel + 1 controller cycle time thermocouple
Electromagnetic Emissionradiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Immunity To Microbreaks10 ms
Load Typeresistive
MarkingCE
Permissible Continuous Overload13 V voltage40 mA current
Product Or Component Typeinput/output analog module
Radio Standard Gprsfalse
Radio Standard Umtsfalse
ReturnabilityYes
Shock Resistance15 gn 11 ms
Stabilisation Time1 ms
Supporting Protocol For Canfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbusfalse
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Temperature Drift+/- 0.006 %FS/°C+/- 0.006 %FS/°C
Type Of Cabletwisted shielded pairs cable <30 m input/output
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Iifalse
Certified For Ul Hazardous Location Division 1false
Dc Supply Voltage24-24 V
System Accessoryfalse
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Taiwan, TW
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
Recyclability Potential In %3
Width Nominal23.6 mm
Appendant Operation Agent (Ex Ib)false
Certified For Ul Hazardous Location Group B (Hydrogen)false
Certified For Ul Hazardous Location Group D (Propane))false
Certified For Ul Hazardous Location Group F (Carbonaceous Dust)false
Io-link Master Presentfalse
Rack-assembly Possiblefalse
Supporting Protocol For As-interface Safety At Workfalse
Supporting Protocol For Ethernet/Ipfalse
Supporting Protocol For Tcp/Ipfalse
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation)-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation)
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 97.69528211118833
- Circularity Profile
- ENVEOLI1402009EN
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 10-95 % without condensation
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Storage-25-70 °C-25-70 °C
Environmental DisclosureENVPEP1402009EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1402009EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- input/output analog module
Range Of ProductModicon TM3
ETIM
- ETIM 8
- EC001596
ETIM 9EC001596
Output Attributes
- Analogue Output Type
- current 4...20 mA, current 0...20 mAvoltage 0...10 V, voltage - 10...10 V
- Analogue Output Resolution
- 12 bits
Analogue Output Number1
Output Ripple20 mV
Input Attributes
- Analogue Input Resolution
- 16 bits, 15 bits + sign
- Input Impedance
- <= 50 Ohm, >= 1 MOhm<= 50 Ohm, >= 1 MOhm
Analogue Input Typecurrent 4...20 mA, current 0...20 mAvoltage 0...10 V, voltage - 10...10 V, thermocouple - 200...1000 °C thermocouple Jthermocouple - 200...1300 °C thermocouple Kthermocouple 0...1760 °C thermocouple R, thermocouple 0...1760 °C thermocouple Sthermocouple 0...1820 °C thermocouple Bthermocouple - 200...400 °C thermocouple T, thermocouple - 200...1300 °C thermocouple Nthermocouple - 200...800 °C thermocouple Ethermocouple 0...2315 °C thermocouple C, temperature probe - 60...180 °C Ni 100/Ni 1000temperature probe - 200...850 °C Pt 100temperature probe - 200...600 °C Pt 1000
