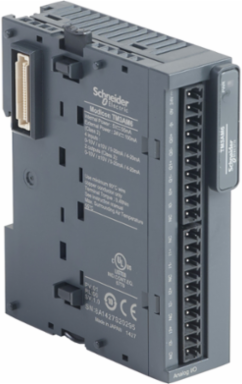

Schneider Electric TM3AM6 Modicon TM3 IO Analog Module, 4 Inputs, 2 Outputs, 24V DC
- MPN: TM3AM6
- PPN: SCH-TM3AM6
CAD
$432.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Modicon TM3 IO Analog Module, 4 Inputs, 2 Outputs, 24V DC
Features
- Featuring four high-resolution analog inputs and two analog outputs, this Modicon TM3 module provides a dense, all-in-one interface for monitoring and controlling sensors and actuators. Integrating multiple functions into a single expansion block reduces your total hardware footprint and lowers the overall cost of your PLC system for sophisticated automation projects.
- This versatile module supports a wide range of industry-standard signals, including 0-10V, -10V to +10V, and 4-20mA for both inputs and outputs. This broad compatibility allows industrial engineers to seamlessly connect pressure transducers, flow meters, and variable frequency drives (VFDs) without the need for external signal converters or specialized hardware.
- With 12-bit resolution for inputs and outputs (reaching 4096 increments), the TM3AM6 delivers the high-level precision required for accurate temperature regulation and fluid control. This granular data processing ensures your Modicon M221, M241, or M251 logic controller receives highly responsive feedback, maintaining strict quality control and reducing waste in your production line.
- Engineered with a tool-free "bus expansion" connector on the side, this module snaps directly onto a standard 35mm DIN rail and links to your controller in seconds. This modular design significantly reduces wiring labor and assembly time, allowing for rapid scalability of your control cabinet when your facility requires additional I/O capacity.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Japan, Singapore, United States |
|---|
| Depth | 70 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Cross Talk | <= 1 LSB, <= 1 LSB |
| Insulation | between input and supply 1500 V ACbetween input and internal logic 500 V AC, between output and supply 1500 V AC, between output and internal logic 500 V AC |
| Repeat Accuracy | +/-0.5 %FS input, +/-0.5 %FS input+/-0.5 %FS input, +/-0.5 %FS input |
| Certificate Agency | CE, UKCA, RCM, EAC, cULus, cULus HazLoc |
| Carbon Footprint Of The Distribution Phase [A4] | 0.04780382750726785, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.005637499620482161 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 50 kg CO2 eq., 50.088756455125555 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1402009EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Bearing Track Assembly Possible | false |
| Electromagnetic Emission | radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011 |
| Immunity To Microbreaks | 10 ms |
| Load Type | resistive |
| Lsb Value | 2.44 mV, 0...10 V4.88 mV, - 10...10 V4.88 µA, 0...20 mA3.91 µA, 4...20 mA |
| Network Type | DC |
| Product Availability | Stock - Normally stocked in distribution facility |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon TM3 |
| Sampling Duration | 1 ms |
| Software Version | v6.1 |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 64 kg CO2 eq. |
| Vibration Resistance | 3.5 mm 5-8.4 Hz) on DIN rail3 gn 8.4-150 Hz) on DIN rail |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Fieldbus Connection Over Separate Bus Coupler Possible | false |
| Pep Code | ENVPEP1402009EN |
| Pep Verification Date | 2024-06-01 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; China, CN |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; China, CN |
| Height Nominal | 90 mm |
| Appendant Operation Agent (Ex Ia) | false |
| Certified For Ul Hazardous Location Group A (Acetylene) | false |
| Certified For Ul Hazardous Location Group C (Ethylene)) | false |
| Certified For Ul Hazardous Location Group E (Metal Dusts) | false |
| Certified For Ul Hazardous Location Group G (Non Conductive Dust) | false |
| Performance Level According To En Iso 13849-1 | none |
| Radio Standard Wi-fi 802.11 | false |
| Supporting Protocol For Data-highway | false |
| Supporting Protocol For Interbus-safety | false |
| Wall Mounting/Direct Mounting Possible | false |
| Package Weight(Lbs) | 192.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Electrical Connection | and supply, 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs |
| Mounting Support | top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit |
| Typical Current Consumption | 45 mA 5 V DC no load55 mA 5 V DC full load, 55 mA 24 V DC no load, 100 mA 24 V DC full load |
| Non-linearity | +/- 0.2 %FS, +/- 0.2 %FS |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.5118604793570386, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 14 kg CO2 eq., 13.831656049831228 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Conversion Time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Front Installation Possible | false |
| Load Impedance Ohmic | 1 kOhm voltage300 Ohm current |
| Local Signalling | 1 LED green PWR |
| Marking | CE |
| Permissible Continuous Overload | 13 V voltage40 mA current |
| Product Or Component Type | input/output analog module |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Returnability | Yes |
| Shock Resistance | 15 gn 11 ms |
| Stabilisation Time | 1 ms |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Temperature Drift | +/- 0.01 %FS/°C+/- 0.01 %FS/°C |
| Type Of Cable | twisted shielded pairs cable <30 m input/output |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Dc Supply Voltage | 24-24 V |
| System Accessory | false |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Taiwan, TW |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; China, CN |
| Recyclability Potential In % | 3 |
| Width Nominal | 23.6 mm |
| Appendant Operation Agent (Ex Ib) | false |
| Certified For Ul Hazardous Location Group B (Hydrogen) | false |
| Certified For Ul Hazardous Location Group D (Propane)) | false |
| Certified For Ul Hazardous Location Group F (Carbonaceous Dust) | false |
| Io-link Master Present | false |
| Rack-assembly Possible | false |
| Supporting Protocol For As-interface Safety At Work | false |
| Supporting Protocol For Ethernet/Ip | false |
| Supporting Protocol For Tcp/Ip | false |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation)-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation) |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 64.48571431144157 |
| Circularity Profile | ENVEOLI1402009EN |
| Eu Rohs Directive | Compliant |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 10-95 % without condensation |
| Pep Verification Date | 2024-06-01 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Ambient Air Temperature For Storage | -25-70 °C-25-70 °C |
| Environmental Disclosure | ENVPEP1402009EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1402009EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | input/output analog module |
|---|
| Range Of Product | Modicon TM3 |
|---|
ETIM
| ETIM 8 | EC001596 |
|---|
| ETIM 9 | EC001596 |
|---|
Output Attributes
| Analogue Output Resolution | 12 bits, 11 bits + sign |
|---|---|
| Analogue Output Number | 2 |
| Analogue Output Type | current 4...20 mA, current 0...20 mAvoltage 0...10 V, voltage - 10...10 V |
|---|---|
| Output Ripple | 20 mV |
Input Attributes
| Analogue Input Resolution | 12 bits, 11 bits + sign |
|---|---|
| Input Impedance | <= 50 Ohm, >= 1 MOhm<= 50 Ohm, >= 1 MOhm |
| Analogue Input Type | current 4...20 mA, current 0...20 mAvoltage 0...10 V, voltage - 10...10 V |
|---|---|
| Analogue Input Number | 4 |
Accessories
Loading carousel layout...
Loading carousel layout...
Accessories
Loading carousel layout...
Loading carousel layout...
Similar Products
Loading carousel layout...
Loading carousel layout...
