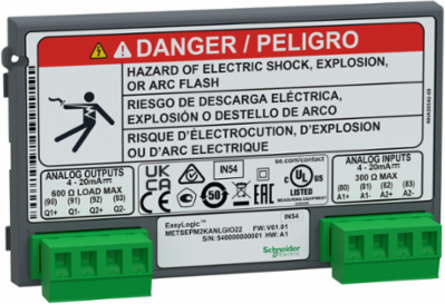

Schneider Electric METSEPM2KANLGIO22 EasyLogic PM2X30 - I/O Module - Analogue - 2 inputs + 2 outputs
- MPN: METSEPM2KANLGIO22
- PPN: SCH-METSEPM2KANLGIO22
CAD
$96.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Optional Input Output module compatible with EasyLogic PM2130, PM2230 devices that provides additional analog inputs outputs. This analog module provides 2 analog inputs that support 4 to 20mA. Plus 2 analog outputs that can be assiciated to one out of 40 instantaneous parameters. The analog outputs support 4 to 20mA. Analog inputs and outputs are setted-up and configured through ION set-up software utility tool. The option modules are attached to the back of the meter providing connection for control power and interfacing bus. The EasyLogic PM2130 and PM2230 devices allow a maximum of 1 input/output option modules per meter.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, India, Singapore, United States
Depth14.6 mm
Important Information Attributes
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, PLSED310091EN_Web
- Local Publishable Date
- 2025-06-18
- Stocking Flag
- N
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1510005
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2219
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Device Application
- optional expansion module
- Energy Efficiency Optimized
- False
- Product Or Component Type
- I/O module
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- 53 mm
- [Ui] Rated Insulation Voltage
- 2500 V
- Package Weight(Lbs)
- 113.000 g
- Warranty (In Months)
- 18
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionDPIBS
Weee Product Category4
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Product Kit IdentifierN
Device Short NamePM2K2AIAO
Product AvailabilityStock - Normally stocked in distribution facility
RangeEasyLogic
Sustainable PackagingNo
Pep CodeENVPEP1510005EN
Width Nominal90.5 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9028900040
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-60 °C, -10-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1510005
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1510005EN
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1510005EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- I/O module
ETIM
- ETIM 8
- EC001420
ETIM 9EC001420
Output Attributes
- Analogue Output Type
- analog output 600 Ohm
- Output Voltage
- 12 V AC
Number Of Outputs2 analog, 4...20 mA
Input Attributes
- Analogue Input Type
- analog input (impedance <= 300 Ohm)
- Number Of Inputs
- 2 analog 4...20 mA
Input Voltage12...30 V AC
