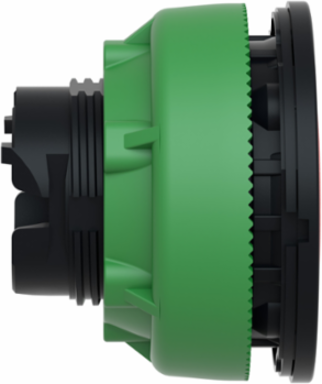

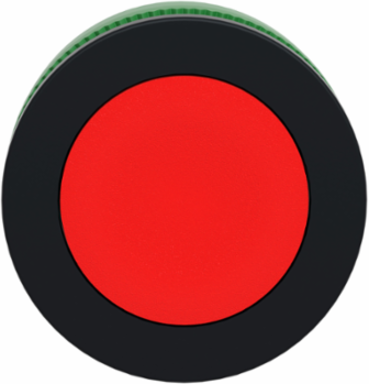

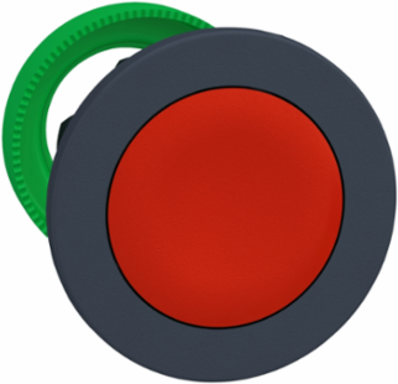

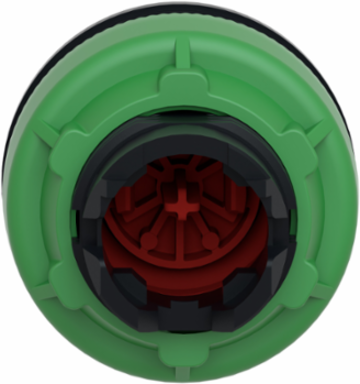

Schneider Electric ZB5FA4 Flush mounted push button head, Harmony XB5, plastic, red, 30mm, spring return, unmarked
Schneider Electric ZB5FA4 Flush mounted push button head, Harmony XB5, plastic, red, 30mm, spring return, unmarked
- MPN: ZB5FA4
- PPN: SCH-ZB5FA4
- UNSPSC: 39122221
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$29.14/ EA
Description
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
- Excellent mechanical connection with operator head
- A large set of accessories to customize your panels
- Multiple conncection type available: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- Large set of accessories to customize your panels
Specifications
Physical Attributes
- Cap Operator Or Lens Color
- red

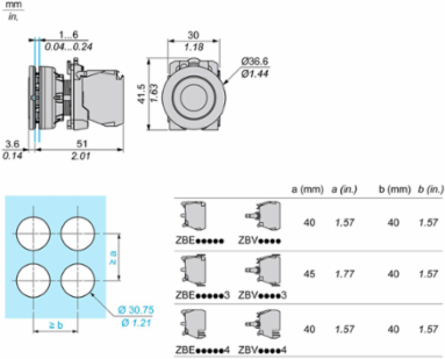

- Cad Overall Height
- 37 mm
Cad Overall Depth30 mm
Cad Overall Width37 mm
Conformance Attributes
- Product Certifications
- CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
StandardsIEC 60947-5-4, CSA C22.2 No 14, IEC 60947-1, UL 508, JIS C8201-5-1, IEC 60947-5-1, JIS C8201-1, ISO 21702, ISO 22196:2011
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bezel Material
- dark grey plastic, plastic colour plated grey
- Customizable
- 1, no
- Marking
- unmarked
- Operator Profile
- red flush, unmarked
- Shape Of Signaling Unit Head
- round
- Type Of Operator
- spring return
- Carbon Footprint Of The Distribution Phase A4
- 0.010590370119131425, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0079964777526897, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2303008EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Average Percentage Of Recycled Metal Content
- 29 %
- Compatibility Code
- ZB5
- GCR Bridge
- ZB5FACUST01
- Head Type
- built-in-flush
- Mechanical Durability
- 10000000 cycles
- Package Weight Lbs
- 23 g
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sustainable Packaging
- Yes
- X C Product
- recessed push
- Stocking Flag
- N
- Operator Profile Cap Operator Or Lens Color
- red
- Pep Code
- ENVPEP2303008_V2
- Pep Verification Date
- 2024-03-24
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; APAC
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; APAC
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Cap Operator Or Lens Colorred
Electrical Composition CodeC1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting
Mounting Diameter30.5 mm
Product Or Component Typehead for non-illuminated push-button
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.05481991837166852
Carbon Footprint Of The Manufacturing Phase A1 To A30.2 kg CO2 eq., 0.22478849601917095
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Function OptionStandard
Average Percentage Of Recycled Plastic Content6 %
Device Short NameZB5
Group Of Productflush push non illuminated
Main Grouppush-button
Overvoltage Categoryclass II conforming to IEC 60536
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony XB5
ReturnabilityYes
Total Lifecycle Carbon Footprint0.3 kg CO2 eq.
Medium DescFlush mounted push button head, Harmony XB5, plastic, red, 30mm, spring return, unmarked
Product Kit IdentifierN
Operator Profile Markingunmar
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionXB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; UE-27
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; APAC
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- IP Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 0.2981952622626606
- Ambient Air Temperature For Storage
- -40-70 °C
- Environmental Disclosure
- ENVPEP2303008_V2
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2303008_V2
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Product CompatibilityZBYF..., ZBZF32, ZBZF33, ZB5AZ
Recycled Metal Content At Cr Level29 %
Mercury FreeYes
Ambient Air Temperature For Operation-40-70 °C
Circularity ProfileENVEOLI2303008EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-03-24
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- head for non-illuminated push-button
Range Of ProductHarmony XB5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
