Weidmuller 8817790000 Electronics Housing, RS 100 Grey, 21.5 mm Width, IP20 Protection
- MPN: 8817790000
- PPN: WDM-8817790000
CAD
$4.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

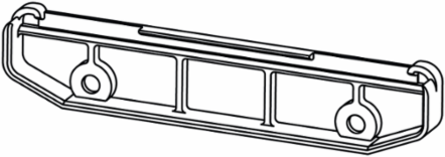

Electronics housings, RS 100 grey, End plate, Width: 21.5 mm
Documentation & Downloads
Specifications
System Characteristics
- Version
- End plate
- Contact to terminal rail
- No
- Encapsulation option
- No
Cross-connectionNo
Protection degreeIP20
Approvals
- ROHS
- Conform
Dimensions And Weights
- Length
- 108.2 mm
- Width
- 21.5 mm
- Height
- 21.9 mm
- Net weight
- 7.6 g
Length (inches)4.26 inch
Width (inches)0.846 inch
Height (inches)0.862 inch
Material Data
- Insulating material
- PA 66
- Colour chart (similar)
- RAL 7035
- UL 94 flammability rating
- V-2
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
Colourgrey
Comparative Tracking Index (CTI)≥ 600
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.100 °C
Temperature range, installation, max.100 °C
Classifications
- ETIM 6.0
- EC001031
- eClass 9.0
- 27-18-27-90
- eClass 10.0
- 27-18-27-92
ETIM 7.0EC001031
eClass 9.127-18-27-90
Notes
- Descriptive text technical data

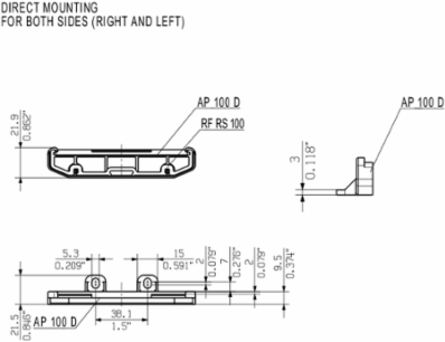

- 3 heights are available for the cover profile and the end plates:TS mounting without cover: TS 32 = 45 mm, TS35x7.5 = 40.5 mmTS mounting with low cover: TS 32 = 89 mm, TS 35x7.5 = 84.5 mmTS mounting with high cover: TS 32 = 121 mm, TS 35x7.5 = 116.5 mmDirect mounting, without/low/high cover: 24 / 69 / 99 mmDimensions of the PCBThickness: 1.6 (±0.2) mm, width: 100 (+0.5) mmDimension of the RS section = length of the printed circuit board – 4.5 mmDimension of ADP section = PCB length - 1 mmExample:PCB length 160 mm, RS = 155.5 mm, ADP = 159 mm
