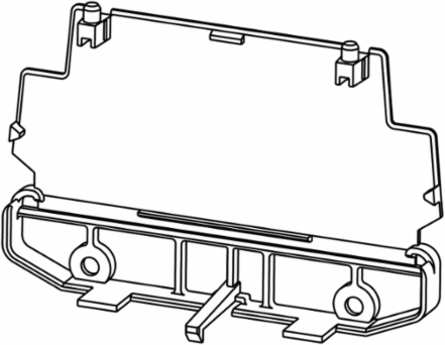

Weidmuller 1189890000 AP 110 BK Electronics Housing, Width 1.071 Inch, Black, IP20, 73.6 mm Height

MPN: 1189890000
PPN: WDM-1189890000

$2.59

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Electronics housings, RS 100 black, End plate, Width: 27.2 mm

Documentation & Downloads

Specifications

System Characteristics

Version	End plate
Contact to terminal rail	No
Encapsulation option	No

Cross-connection	No
Protection degree	IP20

Approvals

ROHS	Conform

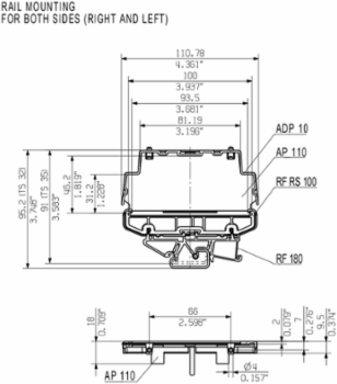

Dimensions And Weights

Length	108.2 mm
Width	27.2 mm
Height	73.6 mm
Net weight	15.3 g

Length (inches)	4.26 inch
Width (inches)	1.071 inch
Height (inches)	2.898 inch

Material Data

Insulating material	PA 66
Colour chart (similar)	RAL 9011
UL 94 flammability rating	V-2
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-25 °C

Colour	black
Comparative Tracking Index (CTI)	≥ 600
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	100 °C
Temperature range, installation, max.	100 °C

Classifications

ETIM 6.0	EC001031
eClass 9.0	27-18-27-90
eClass 10.0	27-18-27-92

ETIM 7.0	EC001031
eClass 9.1	27-18-27-90

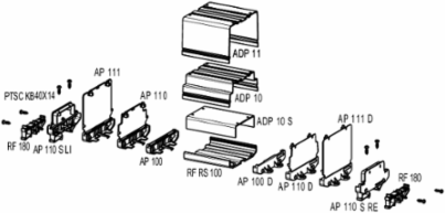

Notes

Descriptive text technical data

3 heights are available for the cover profile and the end plates:TS mounting without cover: TS 32 = 45 mm, TS35x7.5 = 40.5 mmTS mounting with low cover: TS 32 = 89 mm, TS 35x7.5 = 84.5 mmTS mounting with high cover: TS 32 = 121 mm, TS 35x7.5 = 116.5 mmDirect mounting, without/low/high cover: 24 / 69 / 99 mmDimensions of the PCBThickness: 1.6 (±0.2) mm, width: 100 (+0.5) mmDimension of the RS section = length of the printed circuit board – 4.5 mmDimension of ADP section = PCB length - 1 mmExample:PCB length 160 mm, RS = 155.5 mm, ADP = 159 mm
