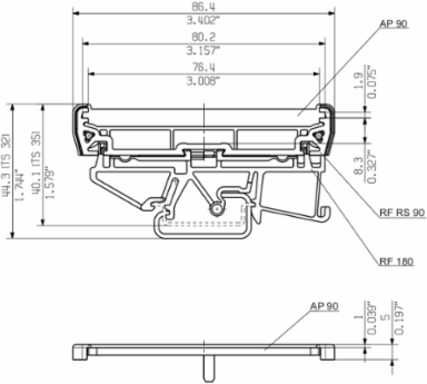

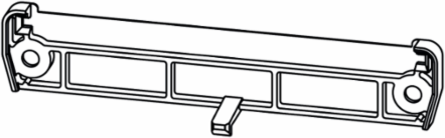

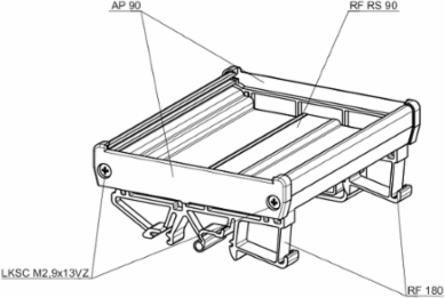

Weidmuller 1961880000 AP 90 OR Electronics Housing, 84.4 mm Length, 5 mm Width, IP20 Protection
- MPN: 1961880000
- PPN: WDM-1961880000
CAD
$4.58
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electronics housings, RS 90 orange, End plate, Width: 5 mm
Documentation & Downloads
Specifications
System Characteristics
- Version
- End plate
- Contact to terminal rail
- No
- Encapsulation option
- No
Cross-connectionNo
Protection degreeIP20
Approvals
- Approvals
- GOSTME25
ROHSConform
Dimensions And Weights
- Length
- 84.4 mm
- Width
- 5 mm
- Height
- 16.9 mm
- Net weight
- 2.45 g
Length (inches)3.323 inch
Width (inches)0.197 inch
Height (inches)0.665 inch
Material Data
- Insulating material
- PA 66
- Colour chart (similar)
- RAL 2000
- UL 94 flammability rating
- V-2
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
Colourorange
Comparative Tracking Index (CTI)≥ 600
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.100 °C
Temperature range, installation, max.100 °C
Classifications
- ETIM 6.0
- EC001031
- eClass 9.0
- 27-18-27-90
- eClass 10.0
- 27-18-27-92
ETIM 7.0EC001031
eClass 9.127-18-27-90
UNSPSC30-21-18-01
Notes
- Descriptive text technical data
- Dimensions of the PCB:Thickness: 1.6 (± 0.2) mm, width: 79.8 (+0.2) mmDimension of RS section = PCB length - 4.5 mmExample:PCB length 160 mm, RS section = 155.5 mm
