Weidmuller 1188660000 Electronics Housing RS 100 Profile, 4.26 Inch Length, 21.5 mm Width, IP20
- MPN: 1188660000
- PPN: WDM-1188660000
CAD
$5.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

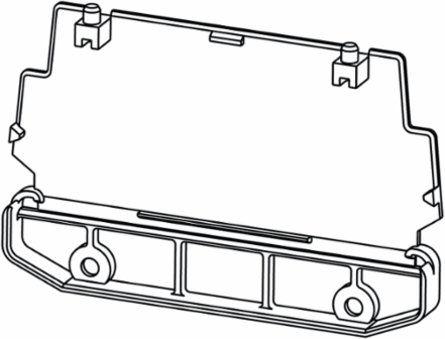

Electronics housings, RS 100 black, End plate, Width: 21.5 mm
Documentation & Downloads
Specifications
System Characteristics
- Version
- End plate
Protection degreeIP20
Approvals
- ROHS
- Conform
Dimensions And Weights
- Length
- 108.2 mm
- Width
- 21.5 mm
- Height
- 71.7 mm
- Net weight
- 16.413 g
Length (inches)4.26 inch
Width (inches)0.846 inch
Height (inches)2.823 inch
Material Data
- Colour
- black
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 100 °C
- Temperature range, installation, max.
- 100 °C
Colour chart (similar)RAL 9011
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC001031
- eClass 9.0
- 27-18-27-90
- eClass 10.0
- 27-18-27-92
ETIM 7.0EC001031
eClass 9.127-18-27-90
Notes
- Descriptive text technical data

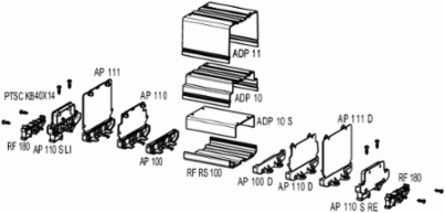

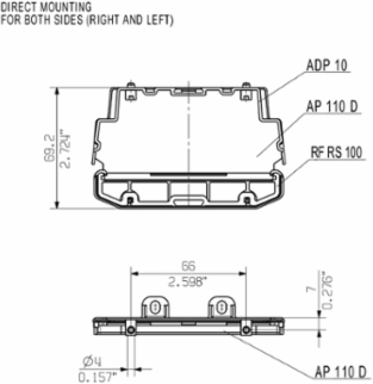

- 3 heights are available for the cover profile and the end plates:TS mounting without cover: TS 32 = 45 mm, TS35x7.5 = 40.5 mmTS mounting with low cover: TS 32 = 89 mm, TS 35x7.5 = 84.5 mmTS mounting with high cover: TS 32 = 121 mm, TS 35x7.5 = 116.5 mmDirect mounting, without/low/high cover: 24 / 69 / 99 mmDimensions of the PCBThickness: 1.6 (±0.2) mm, width: 100 (+0.5) mmDimension of the RS section = length of the printed circuit board – 4.5 mmDimension of ADP section = PCB length - 1 mmExample:PCB length 160 mm, RS = 155.5 mm, ADP = 159 mm
