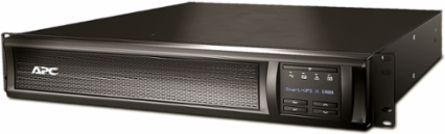

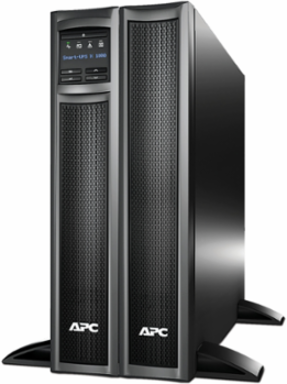

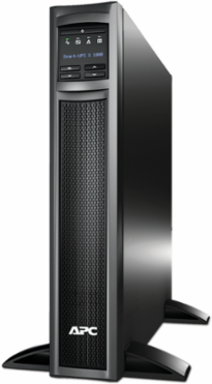

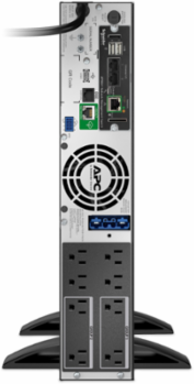

APC SMX1000CNC Smart-UPS X Line Interactive 1000VA 2U Rack/Tower Convertible 120V 8x NEMA 5-15R
- MPN: SMX1000CNC
- UPC: 731304428114
- PPN: APC-SMX1000CNC
CAD
$2768.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS X Line Interactive 1000VA 2U Rack/Tower Convertible 120V 8x NEMA 5-15R
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 1000 VA
- Input Voltage
- 120 V AC 1 phase
- Input Connection Type
- NEMA 5-15P
- Input Current
- 12 A max
- Topology
- Line Interactive
- Efficiency at Full Load
- 82% (143 V AC)
- Crest Factor
- 3:1
- Surge Energy Rating
- 693 J
- Storage Temperature Range
- 5 to 113 °F (-15 to 45 °C)
- Storage Altitude
- 0 to 50,000 ft (0 to 15240 m)
- Rack Height
- 2U
- Weight
- 50.40 lb (22.86 kg)
- Mount Position
- front, horizontal, vertical, lower
- Battery Voltage
- 48 V
- Typical Recharge Time
- 3 h
- Battery Replacement
- APCRBC116
- Acoustic Level
- 40 dB
- Compliance
- cUL Listed, ENERGY STAR V2.0 (USA), FCC, RoHS Compliant with Exemptions, Mercury Free
- Color
- Black
Output Power900 W
Nominal Output Voltage120 V
Output Connections8 NEMA 5-15R
Overcurrent Protection60 A
Waveform TypeSine wave
Output Voltage Tolerance+/- 2%
Harmonic DistortionLess than 5%
Operating Temperature Range32 to 104 °F (0 to 40 °C)
Operating Altitude0 to 10,000 ft
Relative Humidity0 to 95%
Dimensions (HxWxD)17.01 in x 3.50 in x 19.29 in (43.2 cm x 8.9 cm x 49 cm)
Cable Length8 ft (2.44 m)
Battery TypeLead-Acid battery
Battery Capacity345 Ah
Battery Life3–5 years
IP Degree of ProtectionIP20
Communication PortSmartConnect Ethernet port
Country of OriginPhilippines
