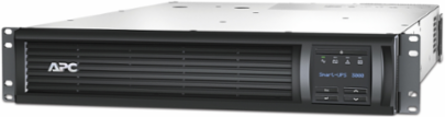

APC SMT3000R2X145 Smart-UPS 3000VA 2U Rackmount 120V with 6 NEMA 5-15R+2 NEMA 5-20R Outputs
- MPN: SMT3000R2X145
- UPC: 731304294092
- PPN: APC-SMT3000R2X145
CAD
$3126.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

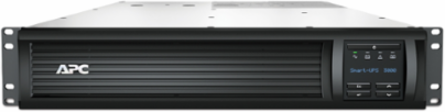

Smart-UPS 3000VA 2U Rackmount 120V with 6 NEMA 5-15R+2 NEMA 5-20R Outputs
Features
- StruxureWare Data Center Expert compatible — Enables centralized management via StruxureWare Data Center Expert.
- Predictive failure notification. — Provides early-warning fault analysis ensuring proactive component replacement.
- Eliminates humming and heat generated when powering tube lights and fans — Eliminates humming and heat generated when powering tube lights and fans
- LED Indicators — Provide easy-to-read status of the unit and utility power conditions.
- Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions. — Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions.
- Boost and Trim Automatic Voltage Regulation (AVR) — Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Serial connectivity — Provides management of the UPS via a serial port.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Disconnected battery notification — Warns when a battery is not available to provide backup power.
- Sequenced network shutdown and reboot — Customize network shutdown and reboot sequence of connected servers and UPSs.
- Outlet group control — Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).
- Adjustable voltage sensitivity — Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Adjustable voltage-transfer points — Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Audible alarms — Provides notification of changing utility power and UPS power conditions
- Automatic restart of loads after UPS shutdown — Automatically starts up the connected equipment upon the return of utility power.
- Automatic self-test — Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Hot-swappable batteries — Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Network manageable — Provides remote power management of the UPS over the network.
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Safety-agency approved — Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
- USB connectivity — Provides management of the UPS via a USB port (not available on all models).
- User-replaceable batteries — Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Intelligent battery management — Maximizes battery performance, life, and reliability through intelligent, precision charging.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 2880 VA
- Topology
- Line Interactive
- Nominal Output Voltage
- 120 V
- Input Connection Type
- NEMA L5-30P
- Transfer Time
- 4 ms typical, 8 ms max
- Battery Replaceability
- User replaceable
- Height
- 3.39 in (86 mm)
- Depth
- 26.89 in (683 mm)
- Rack Height
- 2U
- Color
- Black
- WEEE
- EU Waste Disposal Compliant
- Mercury Free
- Yes
Power Rating (Watts)2700 W
Input Voltage120 V
Output Connections6 NEMA 5-15R, 2 NEMA 5-20R
Surge Energy Rating459 J
Battery TypeLead-Acid battery
Typical Recharge Time3 h
Width18.90 in (480 mm)
Weight97.62 lb (44.28 kg)
Mounting ModeRack-mounted
ComplianceCSA, RoHS Compliant with Exemptions
California Proposition 65Prop 65 Warning - Contains Lead
