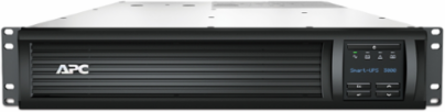

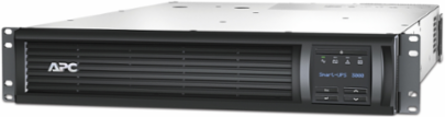

APC SMT3000RMUS Smart-UPS 3000VA Rackmount 2U 120V, 6x NEMA 5-15R/5-20R, AVR, Sine Wave

Description

Features

• StruxureWare Data Center Expert compatible — Enables centralized management via StruxureWare Data Center Expert.
• Predictive failure notification. — Provides early-warning fault analysis ensuring proactive component replacement.
• Eliminates humming and heat generated when powering tube lights and fans
• LED Indicators — Provide easy-to-read status of the unit and utility power conditions.
• Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions.
• Boost and Trim Automatic Voltage Regulation (AVR) — Eliminates voltage fluctuations as a source of AV signal degradation and component power-supply stress.
• Serial connectivity — Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
• Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
• Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
• Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
• Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
• Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non — critical load shedding.-Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
• Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
• Disconnected battery notification — Warns when a battery is not available to provide backup power.
• Sequenced network shutdown and reboot — Customize network shutdown and reboot sequence of connected servers and UPSs.
• Outlet group control — Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).
• Adjustable voltage sensitivity — Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
• Adjustable voltage — transfer points-Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
• Audible alarms — Provides notification of changing utility power and UPS power conditions
• Automatic restart of loads after UPS shutdown — Automatically starts up the connected equipment upon the return of utility power.
• Automatic self — test-Periodic battery self-test ensures early detection of a battery that needs to be replaced.
• Hot — swappable batteries-Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
• Network manageable — Provides remote power management of the UPS over the network.
• Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
• Safety — agency approved-Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
• Serial connectivity — Provides management of the UPS via a serial port.
• Temperature — compensated battery charging-Prolongs battery life by regulating the charge voltage according to battery temperature.
• USB connectivity — Provides management of the UPS via a USB port (not available on all models).
• User — replaceable batteries-Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
• Boost and Trim Automatic Voltage Regulation (AVR) — Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
• Intelligent battery management — Maximizes battery performance, life, and reliability through intelligent, precision charging.
• 2880VA/2700W line interactive pure sine wave 2U rackmount UPS
• Ideal for servers, storage, network closets, business VoIP and retail POS
• Automatic Voltage Regulation helps correct utility voltage
• Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
