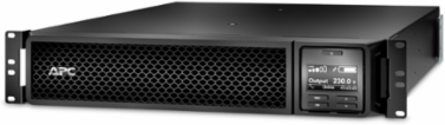

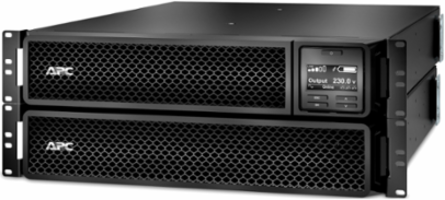

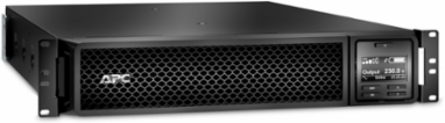

APC SRT3000RMXLW-IEC APC Smart-UPS On-Line, 3kVA, Rackmount 2U, 208V/230V, 6x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/ rail kit
APC SRT3000RMXLW-IEC APC Smart-UPS On-Line, 3kVA, Rackmount 2U, 208V/230V, 6x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/ rail kit
- MPN: SRT3000RMXLW-IEC
- UPC: 731304320074
- PPN: APC-SRT3000RMXLW-IEC
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
APC Smart-UPS On-Line, 3kVA, Rackmount 2U, 208V/230V, 6x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/ rail kit
Features
- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
- ECO Mode — Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Specifications
Conformance
- Approvals
- CE, EAC, ENERGY STAR V2.0 (USA), RCM, VDE, UK PSTI
Battery
- ReplacementBattery
- APCRBC152
- BatteryType
- Lead-Acid battery
TypicalRechargeTime3 h
Sustainability
- Rohs
- Compliant By Exemption
- OptimizedEnergyEfficiency
- Energy efficient product
- CaliforniaProposition65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Carbon Footprint
- 7822.034157529
- Scip Number
- a64c500c-f72a-458b-8faa-8175a94429fe
- Packaging without single use plastic
- No
- Sustainable packaging
- No
ReachReference contains Substances of Very High Concern above the threshold
TakeBackYes
WEEEThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Compliance Date2025/12/10 00:00:00
Packaging with recycled cardboardYes
Removable batteryUser replaceable
Weight, Height, Width, Depth
- Weight
- 69.00 lb(US) (31.3 kg)
- Width
- 17.01 in (432 mm) in
Height3.35 in (85 mm) in
Depth25.00 in (635 mm) in
Logistical informations
- Customs number
- 8504407018
Physical
- ProductOrientation
- lower
- Color
- Black
- MountPosition
- front, horizontal
RackHeight2U
SurgeEnergyRating340 J
Input
- CordLength
- 7.87 ft (2.4 m)
- InputVoltage
- 208 V AC 1 phase, 230 V AC 1 phase
InputConnectionTypeBS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P
Output
- OutputPowerCapacity
- 3000 VA
- NominalOutputVoltage
- 208 V 1 phase, 230 V 1 phase
- Waveformtype
- Sine wave
OutputConnections6 IEC 60320C13, 2 IEC Jumpers, 2 IEC 60320C19
TopologyOn-Line
Warranty
- Warranty
- Battery: 24 month(s), UPS: 36 month(s)
